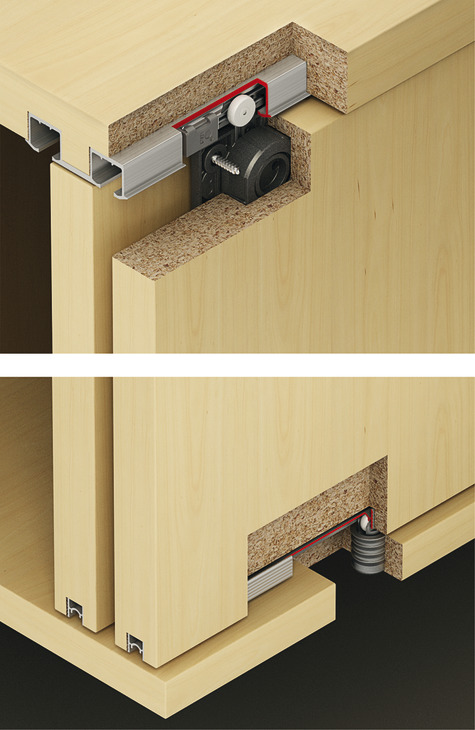

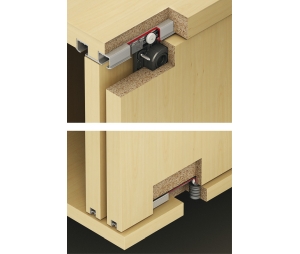

Hafele 405.02.404

• Sliding Door Hardware
• Hawa Clipo 36 H IF
• Soft closing mechanism: with clip-in door stopper
• Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage
• Rattle-free floor guide
• No guide rails in the floor
• Tool-less slide-on hardware allows for quick and easy door mounting
• For door material: wood
• Model series: Clipo
• Running gear guided by: Friction bearing
• Running position: Top
• Door adjustment via: eccentric screw
• Type of opening: linear
• Cabinet version: with sliding doors with zero clearance
• Area of application: For door weights up to 26/36 kg, with soft closing mechanism
• Set: Set without tracks
• Number of doors: 2
• Number of rollers: 4
• Number of doors per system max. 2 to 3

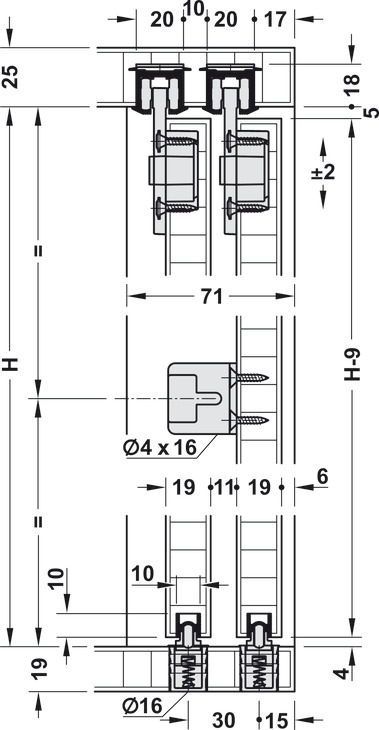

• Adjustment facility: Height adjustment: ±2 mm, Height adjustment +/- 2 mm (1/16")
• For Glass Thickness: (3/4" - 1") 19 mm - 25 mm
• For Door Width: = (39 3/8") 1000 mm
• For door weight: = (79 lbs) 36 kg
• For door height: = (86 5/8") 2200 mm
• Material:
  • Housing: Plastic
  • Running gear: Zinc alloy
  • Guide: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Order reference:
  • Please order running and guide tracks separately.

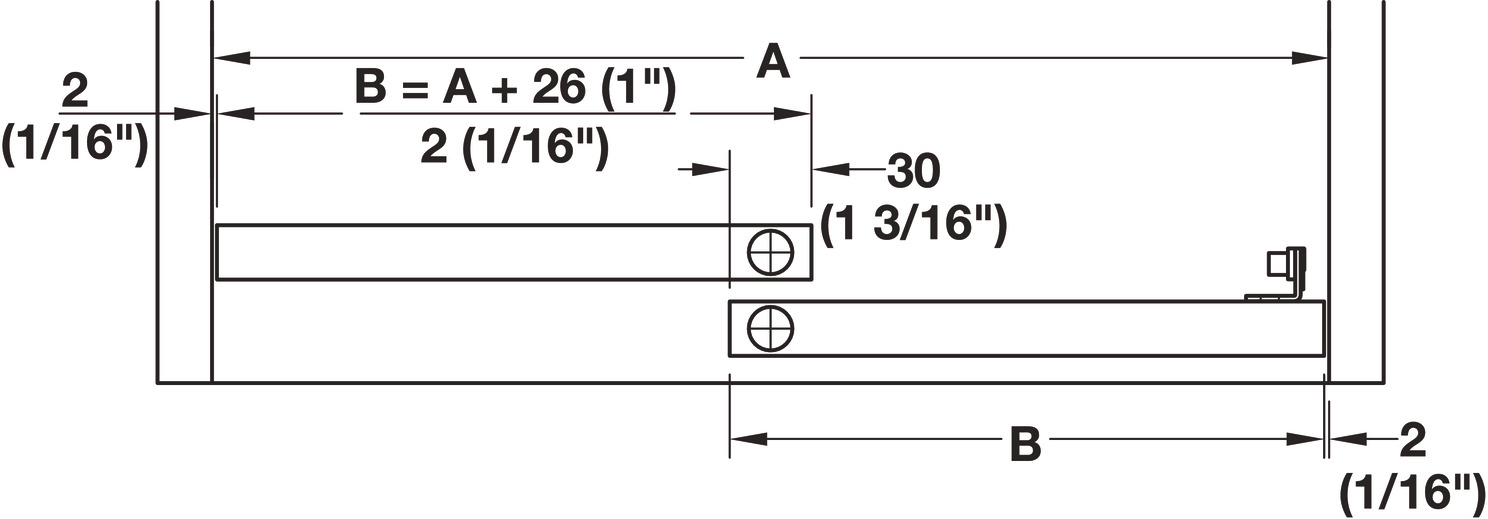

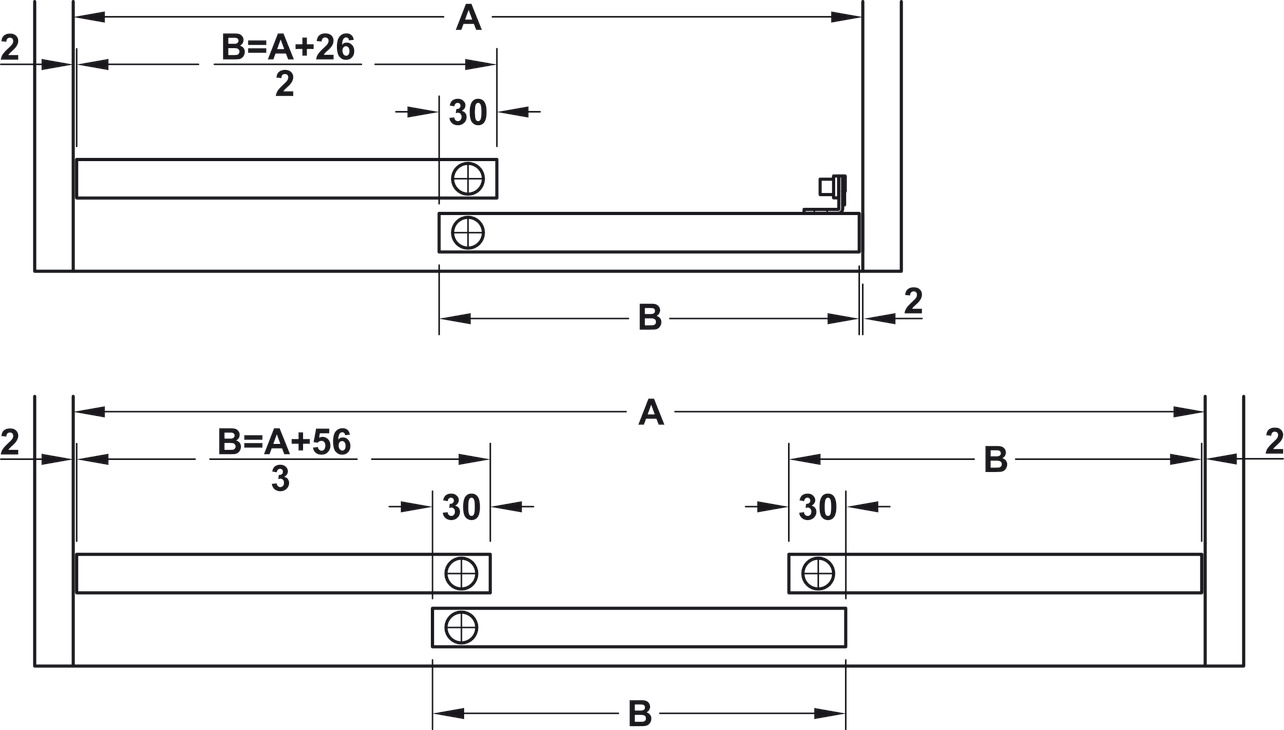

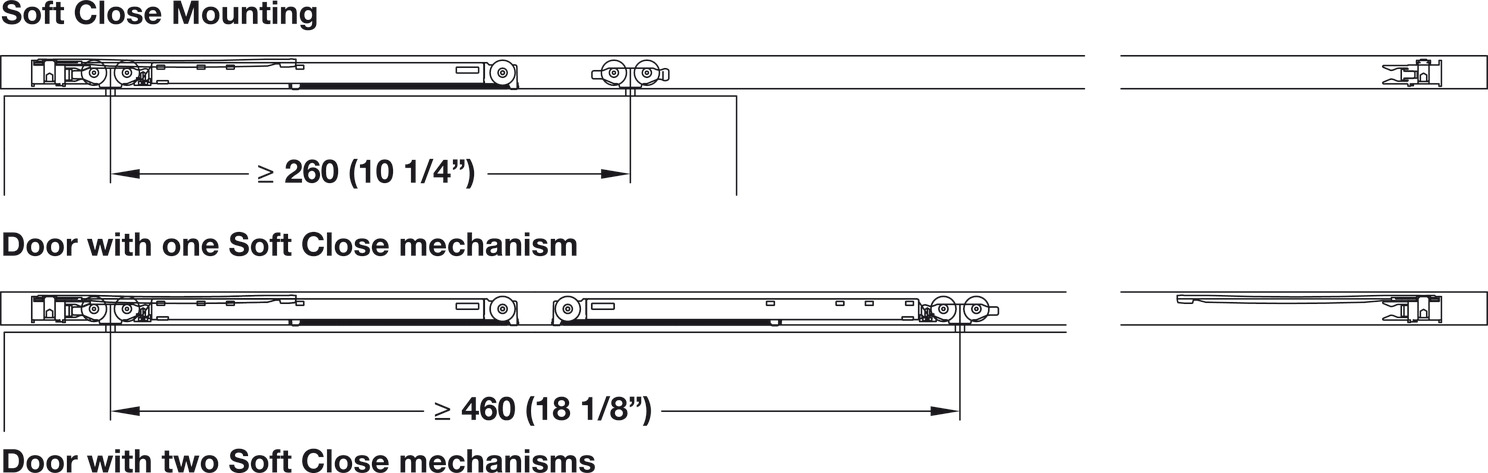

  • Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm
  • Please order soft closing mechanism set separately.
• Supplied with:
  • 4 Running gears
  • 4 Housing pieces
  • 1 soft stop
  • 2 guides
  • 4 track stoppers
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.
