Hafele 405.00.007

• Sliding Door Hardware
• Hawa Clipo 26 GR IF
• Soft closing mechanism: with clip-in door stopper
• Running position: Top
• Running gear guided by: Friction bearing
• For door material: aluminum frame
• Cabinet version: with medium-sized door wings
• Model series: Clipo
• Set: Set without tracks
• Area of application: For medium-sized doors
• Number of doors: 2
• Number of rollers: 4
• Number of doors per system max. 2
• Adjustment facility: Height adjustment: ±2 mm, Height ±2 mm
• For Glass Thickness: (3/16" - 3/4") 4 mm - 20 mm
• For Door Width: = (31 1/2") 800 mm
• For door weight: = (55.2 lbs) 25 kg
• For door height: = (78 3/4") 2000 mm
• Material:
  • Rollers: Plastic
• Order reference:

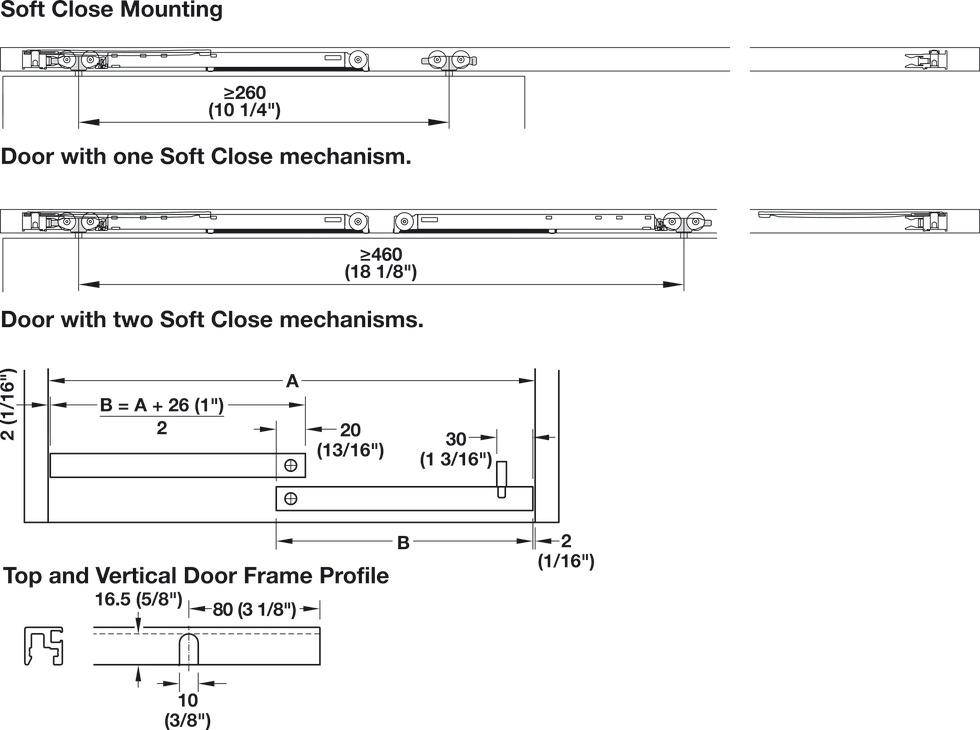

  • Please order one soft closing mechanism for each door for soft opening and soft closing action separately with pitch lengths of running gears from 460 mm and above.
• Supplied with:
  • 4 Running gears
  • 2 floor guides
  • 8 corner brackets (4 each left/right)
  • 1 door follower
  • 4 door stoppers with clip-in door stopper
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Upper Track, Pre-Drilled, for Screw Fixing: 405.00.622, 405.00.623

Optional accessories:

• Top Door Frame Profile, EKU Clipo 26 GR: 401.64.902
• Bottom Door Frame Profile, For Assembling Strut of Aluminum Frame: 401.66.902
• Glass Gasket, EKU Clipo 26 GR & Regal A 25 GR 40/22 Forslide: 401.65.526
• Service Port for Upper Track, Plastic: 405.00.072
• Soft Close Mechanism, Optional: 405.10.073, 405.10.074, 940.48.045
• Routing Template, for Hawa Clipo 26 GR Auminum frame door: 401.80.001
