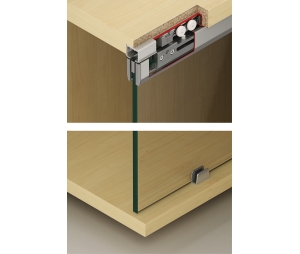

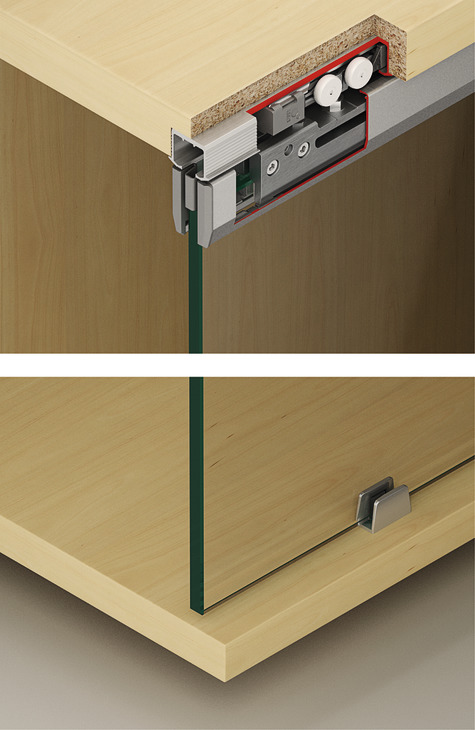

Hafele 405.02.409

• Sliding Door Hardware
• Hawa Clipo 36 G IF
• Optional soft close mechanism can be inconspicuously integrated into the track so it is not visible and is protected from damage
• Cabinet version: with sliding doors without glass drilling
• Set: Set without tracks
• Model series: Clipo
• Area of application: For sliding doors without glass drillings
• Door stopper: Top clip-in door stopper, for sliding into single top running track
• Door processing: Without glass preparation
• Running gear guided by: Friction bearing
• Running position: Top
• Door processing: Without glass preparation
• Number of doors: 1
• Number of rollers: 4
• Number of doors per system max. 1
• Height adjustment: ± (1/16") 2 mm

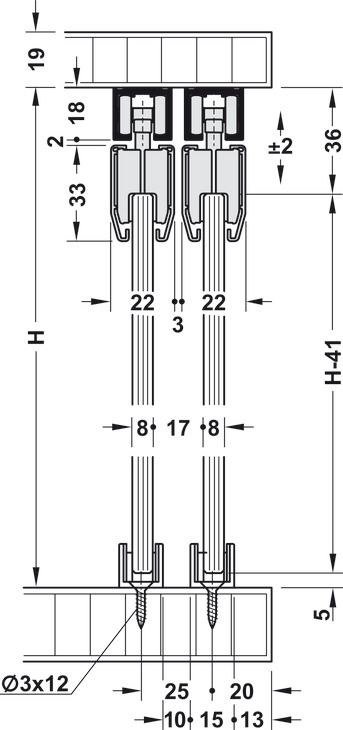

• For Glass Thickness: (1/4" - 5/16") 6 mm - 8 mm
• For Door Width: = (39 3/8") 1000 mm
• For door weight: = (79 lbs) 36 kg
• For door height: = (78 1/4") 2000 mm
• Material:
  • Laufwerk: Plastic
  • Guide: Plastic
  • Cover cap: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Order reference:
  • Please order running and guide tracks separately.

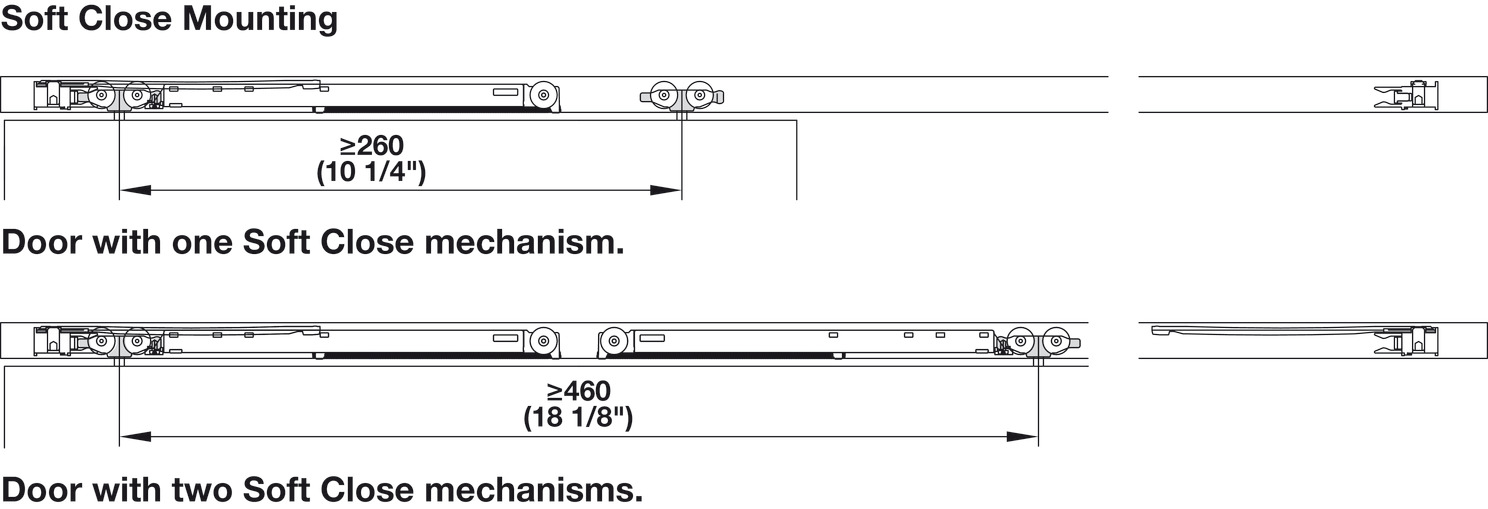

  • Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm
  • Please order soft closing mechanism set separately.
• Supplied with:
  • 2 Running gears
  • 1 guide/spacer
  • 2 clamp shoes for glass
  • 2 door stoppers with clip-in door stopper
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Upper Track, Pre-Drilled, for Screw Fixing: 405.00.622, 405.00.623
• Double Running Track, Perforated: 405.02.622
• Glass Fixing Profile, Hawa Clipo 36 GPK/GPPK Inslide: 405.03.202, 405.03.203

Optional accessories:

• Service Port for Upper Track, Plastic: 405.00.072
• Soft Close Mechanism, Optional: 405.10.073, 405.10.074, 940.48.045
