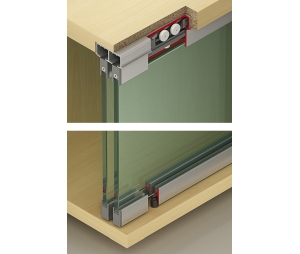

Hafele 405.02.410

• Sliding Door Hardware

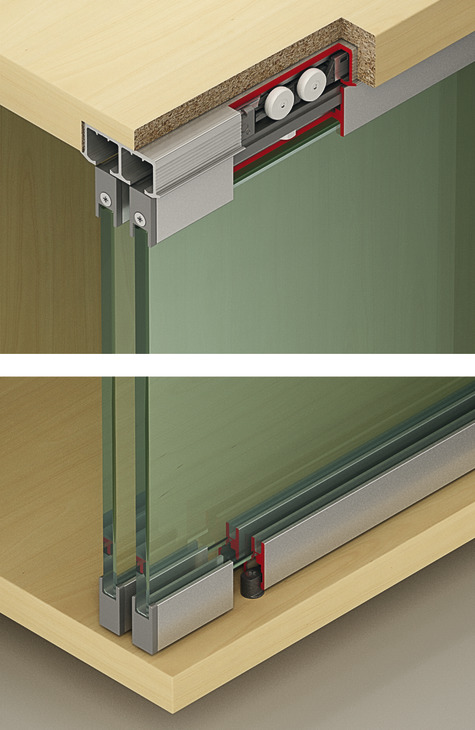

• Hawa Clipo 36 GPK IF
• No guide rails in the bottom of the cabinet
• Soft closing mechanism: with clip-in door stopper
• Cabinet version: with sliding doors without glass drilling
• Model series: Clipo

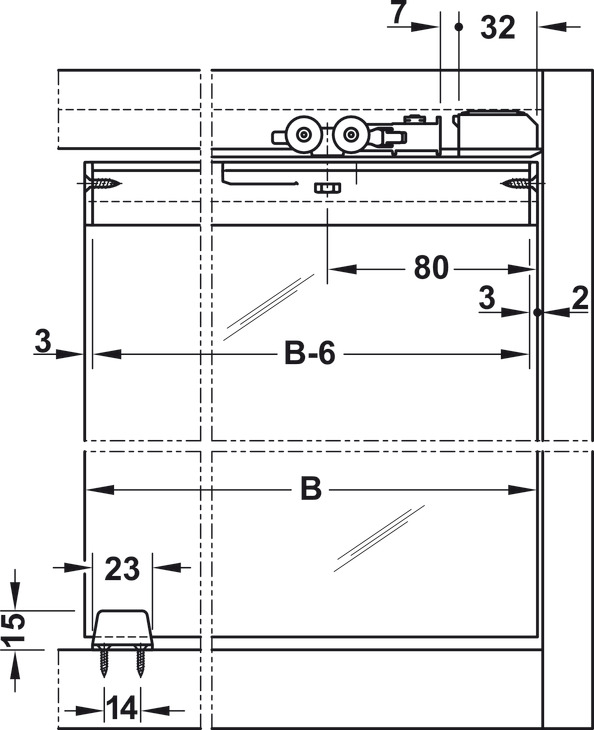

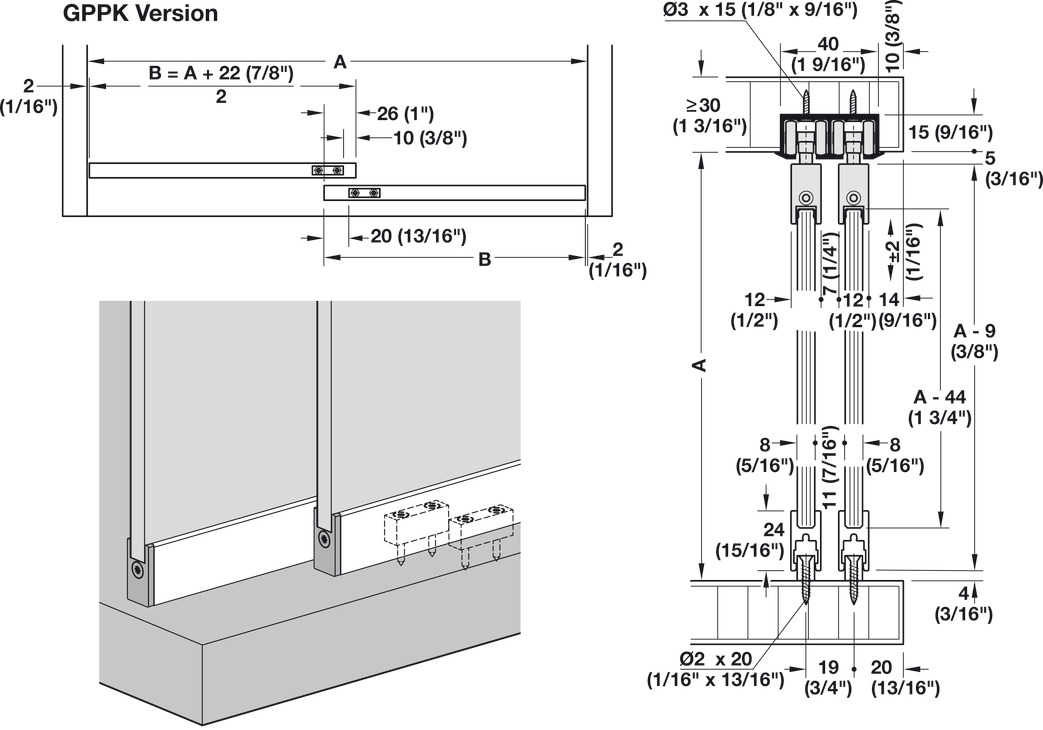

• Version: with top glass retaining profile and visible bottom guide with zero clearance
• Area of application: For sliding doors without glass drillings
• Door stopper: Top clip-in door stopper, for sliding into single or double top running track
• Running position: Top
• Running gear guided by: Friction bearing
• Door processing: Without glass preparation
• Type of opening: linear
• Number of doors: 1
• Number of rollers: 4
• Number of doors per system max. 1

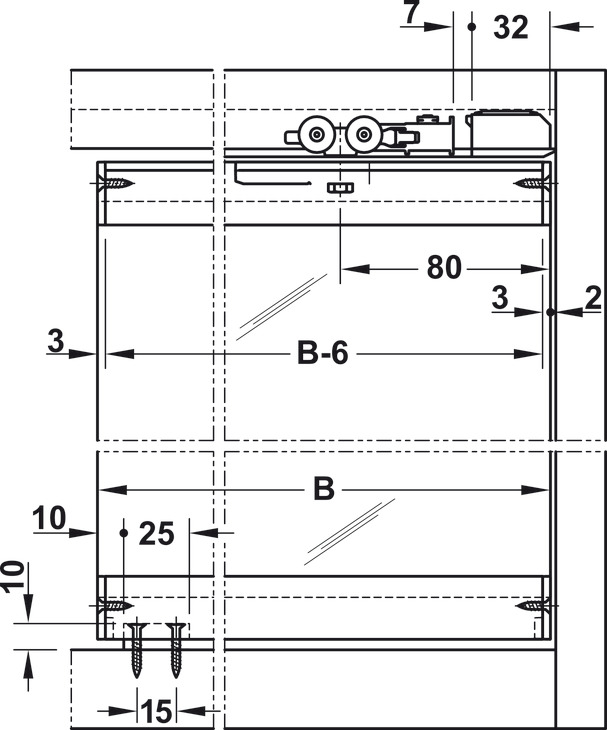

• Adjustment facility: Height adjustment: ±2 mm
• For Glass Thickness: (1/4" - 5/16") 6 mm - 8 mm
• For Door Width: = (39 3/8") 1000 mm
• For door weight: = (79 lbs) 36 kg
• For door height: = (78 1/4") 2000 mm
• Material:
  • Running gear: Zinc alloy
  • Suspension: Zinc alloy
  • Guide: Zinc alloy
  • Guide: Plastic
  • Rollers: Plastic
  • Axis: Steel
• Order reference:
  • Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.

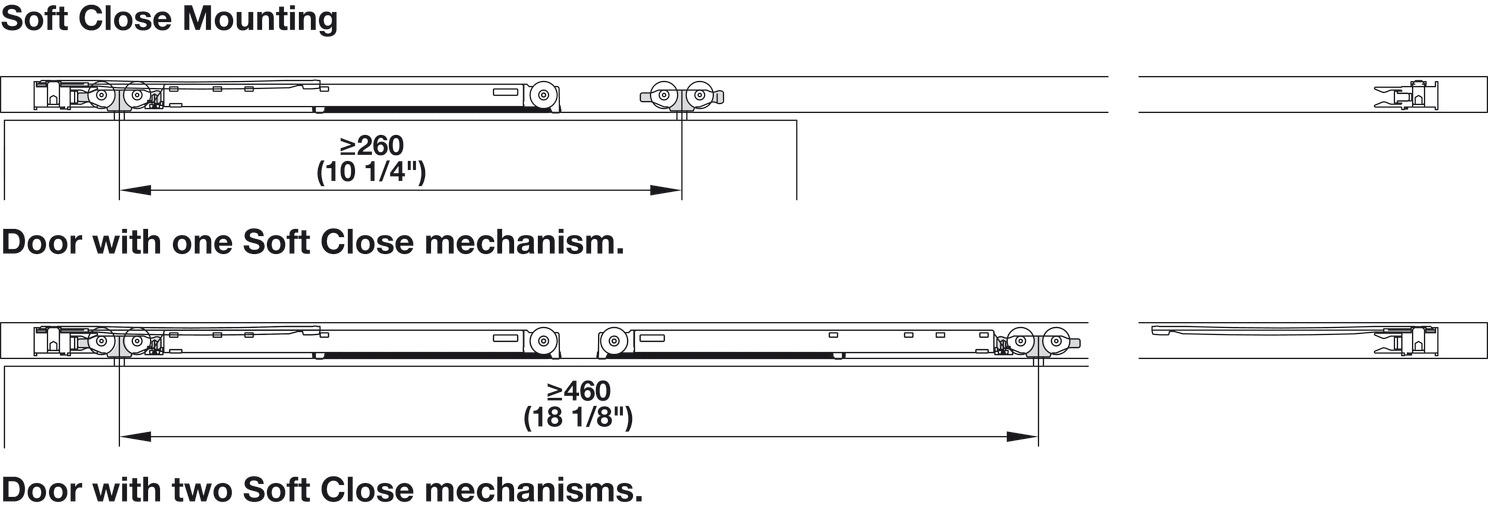

  • Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm
  • Please order soft closing mechanism set separately.

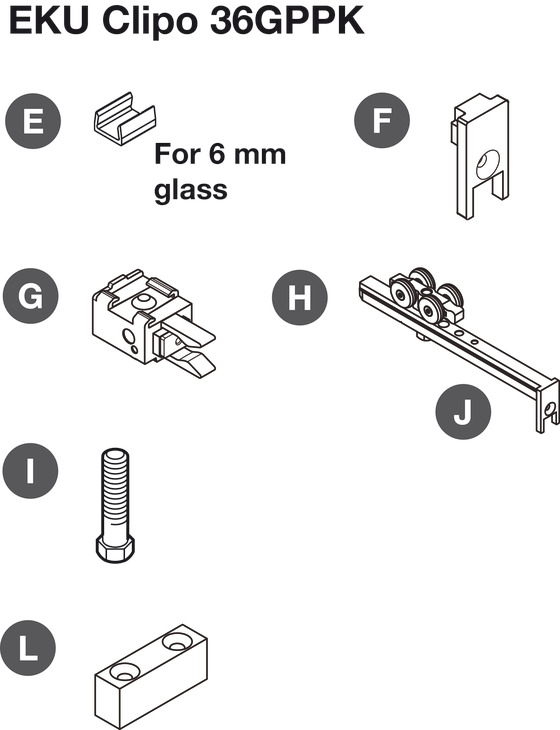

• Supplied with:
  • 2 Running gears
  • 2 track stoppers
  • 2 glass centering pieces
  • 1 guide
• Packing & Sold as: Set.
• Note: Unit of measure is Set. When you buy a quantity of 1 you will get one set. Price is for one set.

Required products:

• Single Upper Track, Pre-Drilled, for Screw Fixing: 405.00.622, 405.00.623
• Double Running Track, Perforated: 405.02.622
• Glass Fixing Profile, Hawa Clipo 36 GPK/GPPK Inslide: 405.03.202, 405.03.203

Optional accessories:

• Service Port for Upper Track, Plastic: 405.00.072
• Soft Close Mechanism, Optional: 405.10.073, 405.10.074, 940.48.045
