Schlage B520-730

Name: Schlage B520-730 Cam Modular - Corbin Russwin - 1-1/8", 1-3/8", 1-5/8"
Brand: Schlage
SKU: Schlage B520-730
Price: 13.04 USD

Schlage B520-730 Cam Modular - Corbin Russwin - 1-1/8", 1-3/8", 1-5/8"

× This image is for a similar product but it will differ in size, color and/or other attributes.

Schlage B520-730 Cam Modular - Corbin Russwin - 1-1/8", 1-3/8", 1-5/8"

Video Review Schlage B520-730 Cam Modular - Corbin Russwin - 1-1/8", 1-3/8", 1-5/8"

Price: $13.04 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

B520-730 Cam Modular - Corbin Russwin DL4000 Series

B-Series
Cylinder Type: Modular Cylinder
Cylinder Length: 1-1/8", 1-3/8", 1-5/8"
Lockset Compatibility: Corbin Russwin DL4000 Series (Old Corbin 420 and Russwin 1503)
List of Cams for Schlage Mortise Cylinders

Cams for Schlage Mortise Cylinders in other Manufacturers' Mortise Locks

	Modular cylinder		Interchangeable core	Classic conventional non-IC	Everest 29 & Primus non-IC
CAM substitutions only allowed on these cylinder numbers:(Order example: 20-001 X B210-731 626 S123)	20-001, 20-002, 20-500, 20-501, 20-515, 20-700, 20-701, 20-715, 26-021		20-059, 20-061, 26-064, 20-763, 20-771, 26-091, 26-094, 80-302, 80-110, 80-132, 80-102	For conventional cylinders manufactured before July 2010 not available with cylinder	For Primus & Everest cylinders manufactured before July 2010 not available with cylinder
	1 1⁄8", 1 3⁄8", 1 5⁄8"	1 1⁄4", 1 1⁄2", 1 3⁄4"	N/A	N/A	N/A
Corbin Russwin® DL4000 Series (Old Corbin 420 and Russwin 1503)	B520-730	B520-731	B520-254 (was XB11-426)	B520-295 (was XB11-458)	B520-366 (was XB11-656)
Corbin Russwin® ML2200 Series (Old Corbin 7000-9000 and Russwin 4000-5000) All functions except ML2255 and ML2242 inside (see straight cam)	B520-732	B520-733	B520-253 (was XB11-352)	B520-233 (was XB08-899)	B520-309 (was XB11-629)
Corbin Russwin A65 ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. For all Best 40H Series & 30H Deadbolt function	B520-734	B520-735	B520-360 (was XB11-817)	B520-223 (was XB03-142)	B520-367 (was XB11-887)
Yale® 2160 Arrow ® #004 Sargent ® 13-0660 All functions except 16 inside and 50 outside	B520-736	B520-737	B520-296 (was XB11-461, replaces XB11-484)	B520-256 (was XB11-430, replaces XB10-659)	B520-329 (was XB11-631, replaces XB11-630)
Best 30 Latch function	L583-476	L583-477	K510-730	B502-191	B502-948
Falcon Series MA Mortise Lock Excluding MA381 Function			B520-698

Video Review of Schlage B520-730 Cam Modular - Corbin Russwin - 1-1/8", 1-3/8", 1-5/8"

Video Detail Page

Questions and Answers

Q: Is there a Schlage modular cylinder sales kit?

A: Schlage has released a modular cylinder sales kit, part number 40-224 and described as Modular Cylinder Sales Kit, Includes FSIC Classic, SFIC Everest 29 R, Primus XP Classic, Everest 29 S, Everest 29 S Primus XP, Mortise Modular Cylinder, Rim Modular Cylinder as seen here:

View Image

Q: How do I change my modular cylinder length?

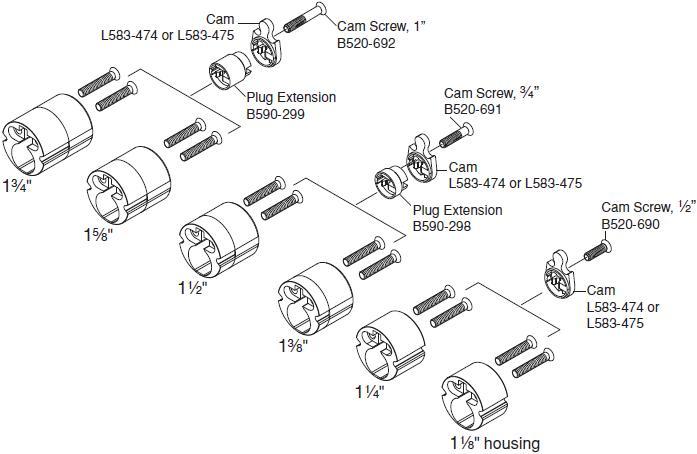

A: A modular cylinder's length is determined by 4 basic parts; a cam screw, cam, plug extension, and a back housing. Most of these parts are used in more than one cylinder length and the combinations below allow you to create cylinder lengths of 1-1/8" thru 1-3/4" by 1/8" increments, see Figure 1 as seen here:

View Image

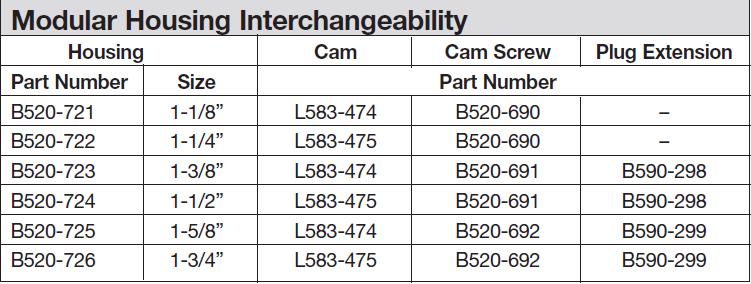

To choose the correct parts for changing a cylinder's length, first pick the desired "Size" from Table-1 below. For example, an 1-3/8" cylinder length requires a B520-723 housing, an L583-474 cam, a B520-691 cam screw and a B590-298 plug extension. Keep in mind the cam referenced is for a Schlage L9000 series lock (except the L9060 outside). Tale as seen here:

View Image

Q: Which cylinders were not affected by the modular design change?

A: The following list of cylinders were not affected by the change to modular cylinder:

09-900, 09-904, 09-905, 09-907 mortise cylinder turns

Small format interchangeable cores (SFIC) and full size interchangeable cores (FSIC)

SFIC and FSIC mortise and rim cylinders

Concealed mortise cylinders

Extended mortise cylinders

XL12-196 Mortise cylinder turn unit with coin turn

Primus Lockout and Primus XP Lockout mortise cylinders

Non-mortise letter/mailbox cylinders

Mortise cylinder with switch
