Schlage B502-191

Name: Schlage B502-191 Classic Conventional Standard Straight Cam
Brand: Schlage
SKU: Schlage B502-191
Price: 3.67 USD

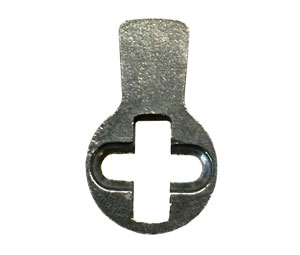

Schlage B502-191 Classic Conventional Standard Straight Cam

× This image is for a similar product but it will differ in size, color and/or other attributes.

Schlage B502-191 Classic Conventional Standard Straight Cam

Video Review Schlage B502-191 Classic Conventional Std Cam

Price: $3.67 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 16

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

B502-191 Classic Conventional Standard Straight Cam

B-Series
Classic Conventional Non-IC Cam: 20-001
Lockset Compatibility: BEST (30 Latch Function)
List of Cams for Schlage Mortise Cylinders

Cams for Schlage Mortise Cylinders in other Manufacturers' Mortise Locks

	Modular cylinder		Interchangeable core	Classic conventional non-IC	Everest 29 & Primus non-IC
CAM substitutions only allowed on these cylinder numbers:(Order example: 20-001 X B210-731 626 S123)	20-001, 20-002, 20-500, 20-501, 20-515, 20-700, 20-701, 20-715, 26-021		20-059, 20-061, 26-064, 20-763, 20-771, 26-091, 26-094, 80-302, 80-110, 80-132, 80-102	For conventional cylinders manufactured before July 2010 not available with cylinder	For Primus & Everest cylinders manufactured before July 2010 not available with cylinder
	1 1⁄8", 1 3⁄8", 1 5⁄8"	1 1⁄4", 1 1⁄2", 1 3⁄4"	N/A	N/A	N/A
Corbin Russwin® DL4000 Series (Old Corbin 420 and Russwin 1503)	B520-730	B520-731	B520-254 (was XB11-426)	B520-295 (was XB11-458)	B520-366 (was XB11-656)
Corbin Russwin® ML2200 Series (Old Corbin 7000-9000 and Russwin 4000-5000) All functions except ML2255 and ML2242 inside (see straight cam)	B520-732	B520-733	B520-253 (was XB11-352)	B520-233 (was XB08-899)	B520-309 (was XB11-629)
Corbin Russwin A65 ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. For all Best 40H Series & 30H Deadbolt function	B520-734	B520-735	B520-360 (was XB11-817)	B520-223 (was XB03-142)	B520-367 (was XB11-887)
Yale® 2160 Arrow ® #004 Sargent ® 13-0660 All functions except 16 inside and 50 outside	B520-736	B520-737	B520-296 (was XB11-461, replaces XB11-484)	B520-256 (was XB11-430, replaces XB10-659)	B520-329 (was XB11-631, replaces XB11-630)
Best 30 Latch function	L583-476	L583-477	K510-730	B502-191	B502-948
Falcon Series MA Mortise Lock Excluding MA381 Function			B520-698

Cams for Schlage Mortise Cylinders

Cam for all functions except L9060 outside		Cam for L9060 outside
Classic conventional prior to July 2010	Everest 29 & Primus XP prior to July 2010	Classic conventional prior to July 2010	Everest 29 & Primus XP prior to July 2010
L583-254	L583-153	B502-191	B502-948

Modular cylinder cams		Modular cam for L9060 outside
Modular cylinder
Modular cams are used for all cylinders made after Aug 2010, whether Classic, Everest 29 or Primus
1-1⁄4", 1-1⁄2", 1-3⁄4"	1-1⁄8", 1-3⁄8", 1-5⁄8"	1-1⁄8", 1-3⁄8", 1-5⁄8"	1-1⁄4", 1-1⁄2", 1-3⁄4"
L583-475	L583-474	L583-476	L583-477
