Rixson HM51LAP
Rixson HM51LAP

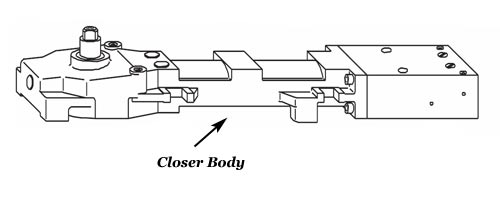

Rixson HM51xLAP Closer Body
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,315.20 USD
In Stock Ready for Shipment
1. Select Handing _________________________
LH (Left Hand)
RH (Right Hand)
LHR (Left Hand Reverse)
RHR (Right Hand Reverse)
2. Select Hold Open________________________
Not Required (NHO)
Required (AHO, 90 degree) (Add $37.82)
Required (AHO, 105 degree) (Add $37.82)
3. Select Option__________________________
Required Backcheck Option (BC)
Required Delayed-Action Option (DA) (Add $96.62)
Not Required
4. Select Spring Size _______________________
Spring Size 3, Door Width 36" (914mm)
Spring Size 4, Door Width 42" (1067mm)
Spring Size 5, Door Width 48" (1219mm)
5. Select Physically Handicapped _____________
Required (Add $57.61)
Not Required
6. Select PH Spring Size ____________________
Spring Size 2, Door Width up to 42" (1067mm)
Spring Size 3, Door Width 48" (1219mm)
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
Made to order. Call for current lead time.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Rixson Shallow Depth Floor Closer
HM51 × LAP Closer Body
Installation
Instruction
Templates
Product Brochure
I
ntroduction
Rixson’s shallow depth floor closers are recommended for low to medium traffic interior doors where traditional floor closer depth is too great for slab construction. Not recommended for high-frequency or exterior doors.
P
roduct Description & Features
• Available non hold-open or 90° or 105° hold open
• Includes three ball-bearing bronze (4-1/2" x 4-1/2") 3/4" offset hinges
• Supplied with all machine screws and half wood screws
• Available in spring sizes 3 through 5:
Spring Size Door Width
3 36"(914mm)
4 42"(1067mm)
5 48"(1219mm)
• For use on any door and frame prepared for standard weight 4-1/2"(114mm) hinges
• Surface mounted bottom arm allows for installation on stock hollow metal doors – no special prep required
• Designed for use on stock hollow metal doors and frames
• 1-3/4" doors only
• Cycolac cement case
• Will swing to 180°, trim permitting
• Available for floor plate or threshold installation (floor plate shown)
• Backcheck option available, suffix “BC” (Not available on delayed-action model)
• Delayed-action option available, prefix “DA” (Not available on backcheck model)
• Doors will swing 5° beyond hold open point
• 3/4" offset only (measured from centerline of pivot to face of door)
• Model available to meet ANSI A117.1 requirements for physically handicapped access – prefix “PH”
“PH” Spring Size Door Width
2 up to 42"(1067mm)
3 48"(1219mm)
