Rixson 930105

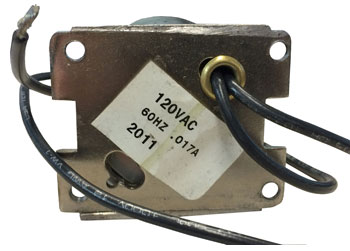

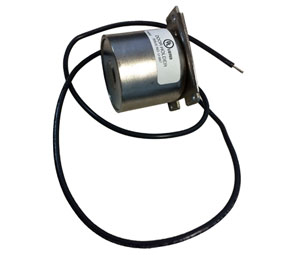

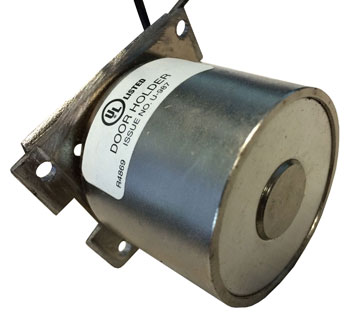

Name: Rixson 930105 120VAC Magnet
Brand: Rixson
SKU: Rixson 930105
Price: 237.52 USD

Rixson 930105 120VAC Magnet

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $237.52 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) Made to order. Call for current lead time.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Rixson Smok-Check Products Parts

930105 120VAC Magnet
930105 120VAC Magnet	Installation Instruction	Templates	Product Brochure

Introduction

SMOK-CHEK® V is an electromechanical closer-holder combining the functions of a single-point door holder with the proven reliability of Rixson's M2220 Series door closer. SMOK-CHEK V is designed to hold fire/smoke doors open, and release when activated by a fire alarm system. SMOK-CHEK V units are listed as automatic closer release devices for use on fire rated/smoke doors.

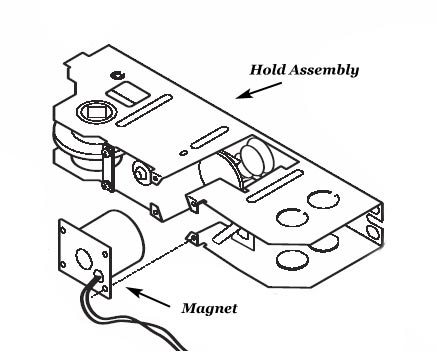

SMOK-CHEK V is available as a fully detectored “stand alone” unit for buildings not equipped with an alarm system, or as a non-detectored unit in buildings with existing alarm ystems. It is recommended for the majority of room and door requirements including cross-corridor and double egress doors, horizontal exit and stairway doors. The modular design of Smok-Chek® offers ease of replacement of all major components including the magnet, holder, detector module, closer, and arm.

Standard Features

• Mounts on 2" door frame • Dual equal chamber ionization detector modules
• Available in 24VAC/DC or 120VAC. Low current draw compatible with any fire alarm system
• Separate surface closer with multi-size spring
• Non-handed
• Mechanical hold open 180° (see pages 193 and 194 for appropriate models)
• Arms available for deep reveal on push side only
• Closer has adjustable back check cushioning
• Sprayed finished available:
              Aluminum 689
              Dark Bronze 690
              Light Bronze 691
              Gold 696
• ANSI Grade 1 156.15
• 2-year limited warranty
• U.L. listed

Suggested Specification

Closer/Holders shall be Rixson SMOK-CHEK V Series. Type shall be two-piece with holder frame mounted and closer door mounted. Holder shall be electromechanical. Closer to
be rack and pinion in cast aluminum shell. Spring shall be multi-size 2-6. Separate closing latching, and back check cushioning valves. Maximum hold open 180° as per application. Unit to be fail safe. Detector shall be modular with dual ionization chamber.Wiring and conduit by others.

Caution

Smok-Cheks are intended to hold the doors open at all times and release/close the doors in case of a fire. Units are not designed to be manually cycled in and out of hold open. Where continual cycling is required, we suggest electrical breakout by means of a switch (Folger Adam® or equal) by others.
