Installation
Install where required by code, where doors may be used to confine smoke or fire, or wherever remote control or automatic closing doors are required.
• Be sure door hardware and trim projections are compatible with total projection of door release.
• Anchor the electromagnet firmly since the wall portion will function as a door stop.
• Locate magnet approximately 6 inches in from lock edge of door. Wall magnets should be mounted approximately 2 to 4 feet above the floor for optimum performance.

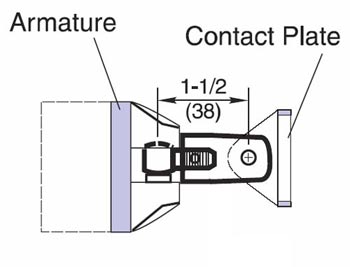

• Door-mounted contact plate includes hardware for through-bolting or concealed mounting.
• Spotting template included with unit ensures correct alignment.
• 14AWG. Max. Wire Size. |
