Rixson 327

Name: Rixson 327 Independently Hung Floor Closer
Brand: Rixson
SKU: Rixson 327
Price: 1593.04 USD

Rixson 327 Independently Hung Floor Closer

× This image is for a similar product but it will differ in size, color and/or other attributes.

Rixson 327 Independently Hung Floor Closer

Price: $1,593.04 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

	Heavy Duty Floor Closers

Model 327 Independently Hung Floor Closer
Model 327 Independently Hung Floor Closer	Installation Instruction	Templates	Product Brochure

Application

◊ Single Acting

◊ Handed

◊ Interior Doors

◊ Door Width up to 4'0"(1219mm)

Introduction

Floor closers provide the best mechanical means of controlling a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability.
The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This hanging means provides several important mechanical advantages:
• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out over time. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.
• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and lets any weight door swing with more efficient geometry.Doors hung on floor closers also allow for vertical adjustment throughout the life of the building to compensate for settlement.
• The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in efficiency compared to surface closers with exposed arms.
A floor closer produces an 85% closing force to opening force ratio where surface closers are approximately 60% efficient. A floor closer is far superior in closing a door when weather conditions or building stack pressure are factors. Rixson® Heavy-Duty Floor Closers take this efficiency concept to an even higher level by utilizing helical torsion springs. In addition to these important mechanical and door control advantages, floor closers are fully concealed to maintain aesthetic design of the opening and to prevent vandalism or tampering by unauthorized individuals.

Features

• Floor closers are fully concealed to maintain aesthetic design of the opening.
• Full weight of door is borne by floor closer, providing trouble-free operation and long life.
• Doors up to 1,500 pounds are accommodated, allowing standard and heavy doors in a building to be hung by the same means.
• Available offset or center hung to accommodate any installation.
• Vertical adjustment provides for field adjustment of the door if required.
• Specification of heavy panels on the door face with standard offset floor closer preparation available.
• Full floor-to-ceiling concealment is offered for center hung doors, providing almost unlimited design flexibility.
• Extended spindles available to accommodate any floor condition.
• Offset models available 3/4" or 1-1/2" offset.
• Offset models available for lead-lined doors.
• Offset models available for fire door assemblies up to three hours.
• Spring tension and closing speed are field adjustable.
• Built-in fully adjustable hydraulic backcheck standard on 27 and 28.
• Available in all standard architectural finishes.

Performance

Selective Hold-Open (SHO)
Factory-installed on 27 & 28 Series closers. Hold-open may be turned on/off.
Automatic Hold-Open (AHO)
Available on certain series closers with or without dead stop. Preset at factory for specific degree of hold-open. Degree of hold-open cannot be changed, nor can closer be made into non hold-open.
Delayed Action (DA)
Provided on barrier-free installations. Permits door to remain ajar (at 70°) for up to 30 seconds. Operates by separate valve and can be shut off if not needed. Not available on closers furnished with cold weather fluid, and not recommended for exterior applications because of weather factors. (27 & 28 series only)
Physically Handicapped (PH)
To comply with guidelines established in the American With Disabilities Act, lighter opening forces are met if closers are ordered with a PH prefix. If 5 pounds of opening on interior doors is needed, simply order PH. If 8.5# of force is needed, specify Prefix PH and suffix 8.5#. Be advised that lower opening forces mean lower closer forces. PH products should not be ordered for exterior doors or fire rated openings. Fire/Lifesafety openings take precedence over the convenience of ADA. Securing a building is also a major concern and a lighter closer may not be strong enough to secure a latch bolt in a strike. Use care when specifying PH products.
Cold Weather Fluid (CWF)
Should be considered in installations where ground temperature is constantly below +15°F.May be used in temperatures as low as -35°F.
Sealed Closer (SC)
Used where water contact may occur. Provides gasketing and a cover plate that are epoxied around the case with the closer inside.Not available for replacement closers unless cement case is also replaced.
Fire Rated (F)
Used on labeled fire door requiring steel base pivot. PH with 3 pounds of opening force may not be used on fire doors.

Product Description & Features

Used as a concealed floor closer for independently hung doors - butt hinges or pocket pivots
• Door hanging means (by others) determines maximum door weight
• 90° maximum door swing
• Auxiliary stop recommended
• Includes closer, mortised door rail and slide track type bottom arm
• Separate and independent valves for closing speed, latch speed and backcheck
• Cold weather fluid available, specify“CWF”
• Not available in “PH”, “DA”, or “HO”
• Extended spindle available in 1/2" increments up to 2"
• Extended spindle required for threshold applications
• Cycolac cement case
• Specify door hanging means
• Special template may be required

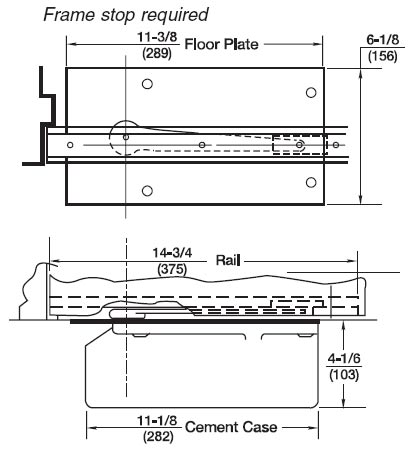

Technical Information

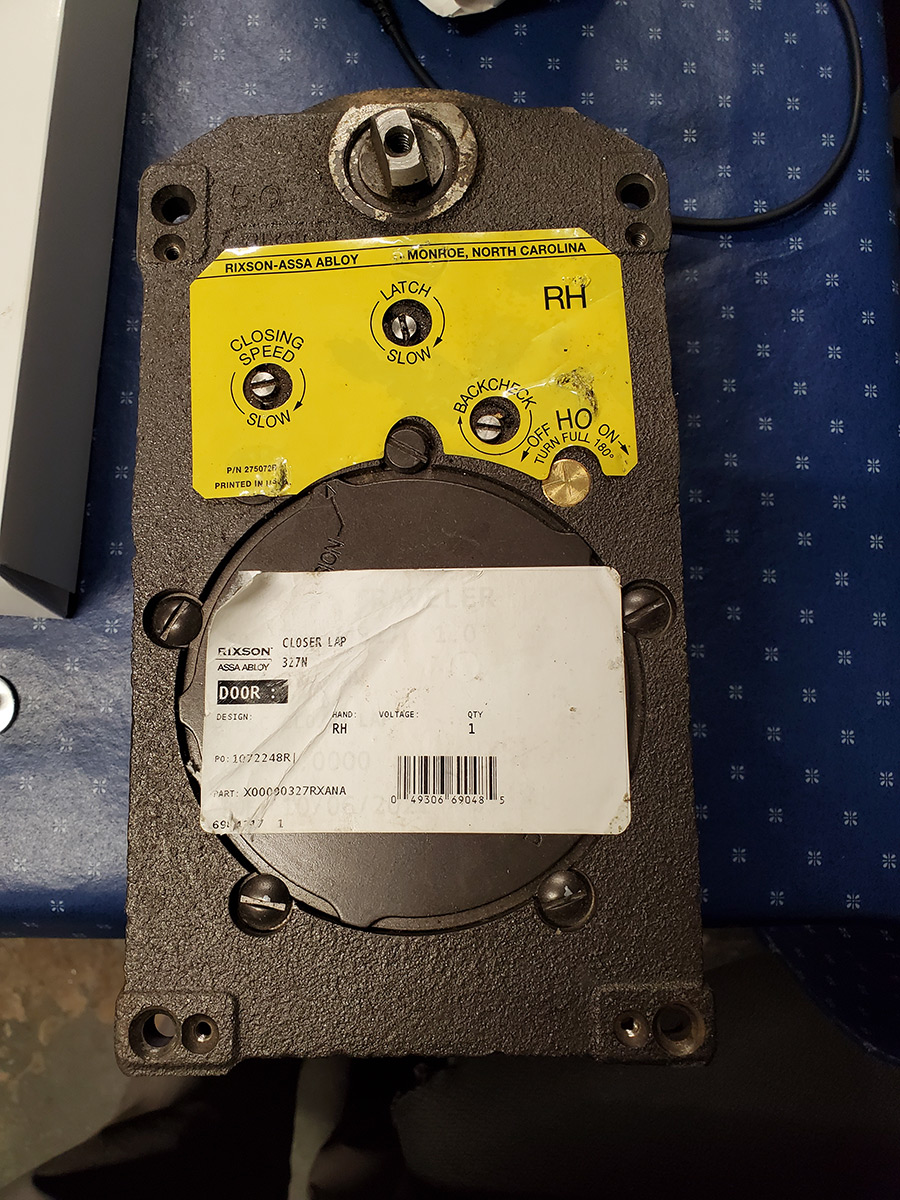

Customer Supplied Photo

(Click to Enlarge)

Customer Supplied Photo

(Click to Enlarge)

Questions and Answers

Q: What is the advantage of the F327 over the 27.

A: These are different closers with different specifications they are used for.

Please tell us more about the door so we can select the correct product for this application.

Please let us know if there is anything else we can help with.

Q: Does this floor closer do the same thing as an top jamb closer, with the main difference being that it is concealed?

A: The 327 Rixson is indeed concealed but is used for door applications requiring the specifications which it was designed for. Can you tell us more about your door?

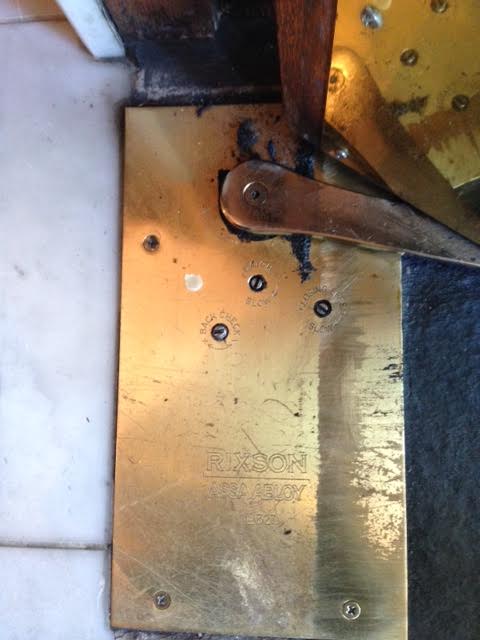

Q: Richard, please let me know if you have one for me. Please see the image here:

View Image

A: Are you looking for an E327 or an F327? I spoke with two people that are deeply involved in wrecks and technical support in both the wholesale level and at the manufacturing level for Rixson and no one knows why that cover plate would be stamped E327 and as a matter of fact it's as much a mystery to them as it is to me if not more so.

When you see the letter E at the beginning of a Rixson and part number it means electrified but we are all, the three of us, in agreement that there's no way to electrify that door closer by any chance is there anything electrified on that door?

Q: Richard that E is actually not an E. it is No for #327.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Thank you for your consideration.

Q: What is the maximum door swing on the Rixson 327?

A: The maximum door swing on the 327 is 90°
