Rixson 173

Name: Rixson 173 3/4" Offset Pivot Set
Brand: Rixson
SKU: Rixson 173
Price: 344.86 USD

Rixson 173 3/4" Offset Pivot Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $344.86 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15-20 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

	Rixson Pivot Sets

173 3/4" Offset Pivot Set
173 3/4" Offset Pivot Set	Installation Instruction	Templates	Product Brochure

Application

◊ Interior doors

◊ Weight 150 lbs

◊ Door sizees up to 3'0" x 8'0" x 1-3/4"

◊ Handed

Introduction

Pivot sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability.
The weight of the door is supported entirely by the bottom arm, which is directly connected to the pivot spindle. This hanging means provides several important advantages:
• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out overtime. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.
• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and allows door adjustment throughout the life of the building to compensate for settlement.

Aesthetics

• Offset or center hung pivot sets are more attractive than alternative door hanging devices.
• Full floor-to-ceiling concealment is offered for center hung doors providing almost unlimited design flexibility.
• Extended spindles available to raise door above finished floor for complete concealment.
• Specification of heavy panels for door face with standard offset pivot preparation is available.
• Doors up to 1,750 pounds are accommodated, allowing all standard and heavy doors in a building to be hung by same hanging means.

Performance

• Full weight of door is borne by floor pivot, providing long pivot life and trouble-free operation.
• Screws are in shear in pivot-set installations and are less likely to pull out from tension–eliminates sagging doors.
• Vertical adjustment provides for field modifications to suit conditions

Safety & Security

• Models are available for labeled fire and lead-lined doors.
• Doors cannot be removed by vandals.
• Virtually concealed, pivots are not abuse or vandal prone.
• All offset pivots shall be UL10C compliant.

Economy

• Pivots provide longer life and more trouble-free operation than other door hanging means.
• Door and frame life is lengthened.

Suggested Specification

All pivots and/or pivot sets shall be the product of one manufacturer. Sets as noted in hardware groups shall be matching in design for both labeled fire doors, lead-lined doors and regular doors. Pivots for 20-minute fire doors shall be non-ferrous and match the finish of adjacent hardware. All pivot sets are required to meet ANSI grade one standard as listed in ANSI 156.4. Caps shall be hex type to increase security.

Product Description & Features

• Standard top pivot 180 included
• 119 intermediate pivot recommended for all doors over 6'8" (order separately)
• Bottom pivot mounts directly to concrete floor
• Uses same arm and cap as 117 pivot set
• Non-ferrous base metal
• 3/4" offset only (measured from centerline of pivot to face of door
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• 3/8" vertical adjustment)
• No spindle extensions available
• Doors will swing 180°, trim permitting

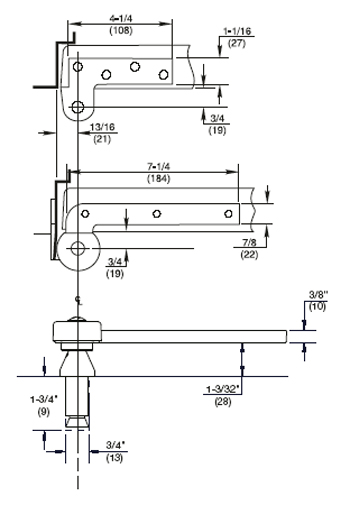

Technical Information
