Home > Door Closers > Overhead Concealed > Parts > Rixson > 0700 > Rixson 0700LAP

Rixson 0700LAP

Name: Rixson 0700LAP Closer Body
Brand: Rixson
SKU: Rixson 0700LAP
Price: 1870.19 USD

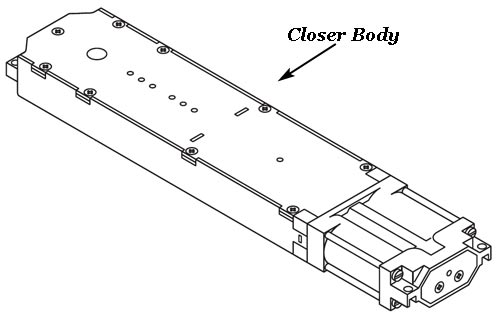

Rixson 0700LAP Closer Body

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $1,870.19 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) Made to order. Call for current lead time.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

	Rixson Overhead Concealed Closer Part

0700 × LAP Closer Body
0700 × LAP Closer Body	Installation Instruction	Templates	Product Brochure

Introduction

Overhead concealed closers are an aesthetically appealing way to close medium-traffic doors. Center-hung Rixson® overhead concealed closers use the spindle as the pivot point, giving the most efficient way to control doors. Offset models allow the use of continuous, standard butts or intermediate and bottom pivots to hang doors.Heavy and high-traffic doors should always use floor closers, but when doors are of average size and usage, the following closers are viable options to surface closers.

Product Description & Features

• 0700 - Aluminum door/frame
M0700 - Metal door/frame
W0700 - Wood door/frame
MW0700 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Means of hanging: offset pivots, butts, etc., by others
• Auxiliary stop required
• Adjustable closing speed and backcheck
• UL listed for fire-rated openings
• Not available CWF and DA
• For ADA compliance use Model 0706 for interior 36" doors
• Metal frames require mounting box 0192 that must be welded in the frame prior to shipment. Included with closer. Wood frames require 0198 mounting plate. Included with closer.
• Closer cover supplied with M/MW/W models only.
