Locknetics 392+DSM2/MBS2
Locknetics 392+DSM2/MBS2
Locknetics 392+ DSM / MBS Electromagnetic Lock
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
1,788.03 USD
In Stock Ready for Shipment
Select Finish
.....Satin Aluminum, Anodized
.....Satin Aluminum - 628 (Add $20.14)
Select HDB90-2 Herculite Door Bracket
Not Required
Required (Add $468.16)
Select RTD Relocking Time Delay
.........................Not Required
.........................Required (Add $75.68)
Select TJ92 Top Jamb Bracket
.......................Not Required
.......................Required (Add $227.04)
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Magforce Plus 391+ Series: The High Security Solution
Ideal for high security applications.
Double Lock with Door Status Monitor/ Magnetic Bond Sensor
Door status monitor indicates when door is opened or closed
Magnetic bond sensor indicates when lock is secured or unsecured
1650 pounds of direct holding force per door leaf
Exceeds ANSI/BHMA A156.23 Grade 1 standards
UL listed as an auxiliary lock for a 3 hour fire rated opening and for burglary resistance.
For pairs of hollow metal, aluminum, and wood doors and frames as well as glass doors without a mullion.
Easily interfaces with electronic access control systems, automatic door operators and fire or other hazard sensing systems for egress and emergency egress.
Input voltage: 12 or 24 VCD (dual voltage, field selectable)
Current Draw: .75A @ 12 VCD or .38A @ 24 VCD
Overall size: 2-3/4" H x 20-5/8" L x 1-11/16" D
Fully Automatic Voltage Selection simplifies installation
Modular design employs a standardized circuit board with easy to install connectors, adjustable mounting brackets, integrated mounting screws, and slide-in architectural finish plates
The uniquely designed armature housing holds the armature in place, eliminating the noise and sagging possible with other armatures
The armature housing increases the overall reliability of the product and provides an aesthetically pleasing look over traditional armature mountings, blending into the surrounding environment more easily
The armature housing holds the magnets for the DSM option without having to mount an additional plate to the armature, ensuring quicker, more reliable installation
Product Brochure
Template
Installation Instructions
Installation Template
TJ Installation Template

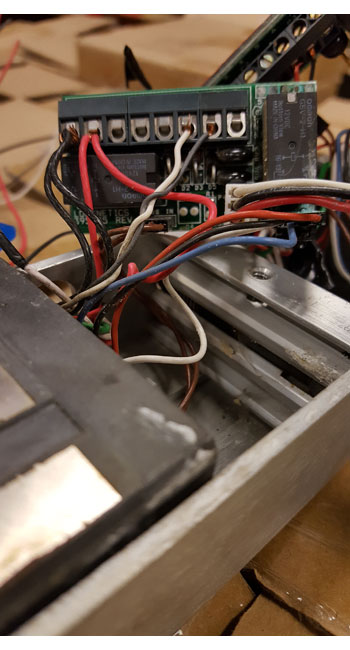

Customer Supplied Photos
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
(Click to Enlarge)
Questions and Answers
Q: How much does the unit weigh in pounds or ounces
A:
An educated guess would be approximately 12 lb
