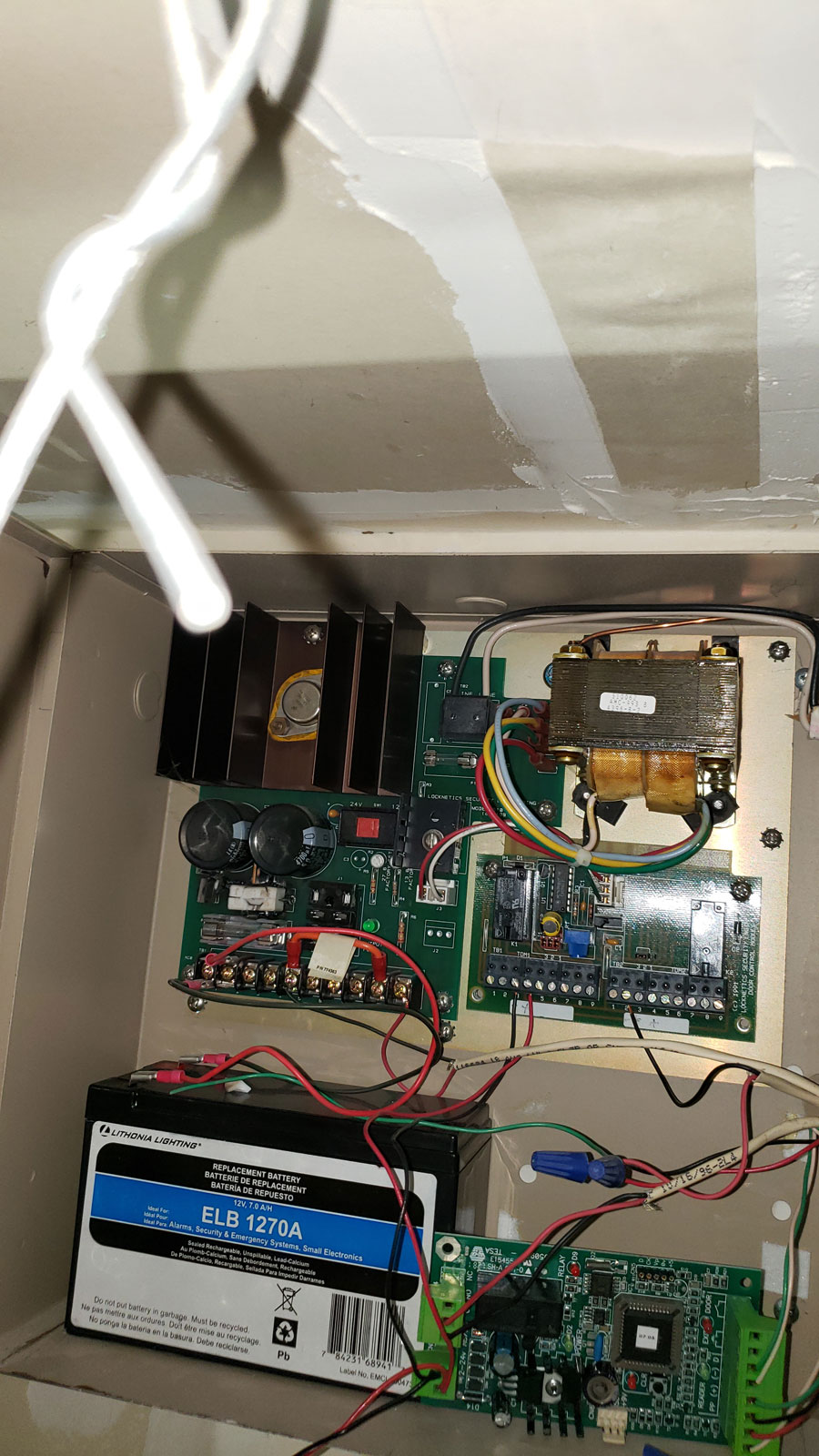

Locknetics 510 Power Supply

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Locknetics 510 Power Supply
More from Locknetics
Price: $634.64 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
510 Series Power Supply
  • INPUT POWER 120 VAC 60HZ 1.25 amp
  • OUTPUT VOLTAGE
    • 12 VDC Nominal (13.8 VDC)
    • 24 VDC Nominal (27.6 VDC)
    • Field Selectable
    • Filtered and Regulated
  • OUTPUT CURRENT
    • 3 amp max. @ 13.8 VDC
    • 2 amp max. @ 27.6 VDC
  • PRIMARY FUSE SIZE 1.25 amp, 5 x 20 mm
  • BATTERY FUSE SIZE 6 amp, 3 AG
  • SECONDARY PROTECTION Output overload protected by the regulatory circuit
  • CHARGING CIRCUIT Built-in standard
  • ENCLOSURE 12"x12"x4" steel NEMA Grade 1 with conduit knockouts and hinged cover with lock down screws
  • COLOR/FINISH beige/baked enamel
  • WEIGHT (Power Supply) 11 lbs.
  • INPUT TERMINALS Barrier strip with (2) #6 screw terminals, protective cover (1) #10 ground screw
  • OUTPUT TERMINALS Barrier strip with (10) #6 screw terminals (Basic unit only)
  • DESCRIPTION OF OPERATIONS Output voltage is field selectable by slide switch. With line power applied, a green LED on the circuit board will be illuminated. This indicates constant power on the output terminals. When batteries are included power may be present on output terminals with the green LED illuminated and on line power present. When line power is present the built-in recharging circuit will keep the batteries charged.




POWER SUPPLY CROSS REFERENCE LIST

PS900-Model PS900-Summary Legacy Supply (PS873)
PS902 2AMP @ 12/24VDC
1 option board connector
1 fire alarm connector
1 battery board plug
505 (1AMP @ 12/24VDC)
510 (@AMP @ 24VDC)
861 (2AMP @ 12VDC, 1AMP @ 24VDC)
PS904 4AMP @ 12/24VDC
2 option board connectors
1 battery board connector
510 (3AMP @ 12VDC)
873 (4AMP @ 12VDC, 2AMP @ 24VDC) - no inrush app's
SBB-3 (24VDC @ 3AMP)
PS906 6AMP @ 12/24VDC
3 option board connectors
1 battery board connector
515 (5AMP @ 24VDC)
SBB-5 (5AMP @ 24VDC)
515 (10AMP @ 12VDC) - no exact match
SBB-2- (10AMP @ 24VDC) - no exact match
PS914 12/24VDC @ 4AMP Hi Inrush
2 option board connectors
1 battery board connector
PS873 (2AMP @ 24VDC, 4AMP @ 12VDC) Hi Inrush

POWER SUPPLY OPTION BOARD

PS900- Model PS900-Summary Legacy supply (PS873)
900-2RS 2 zone control with sequencing 871-2 board
900-2Q 2 zone control for QEL 2Q board
900-4R 4 relay control, no timing or logic DCM, RCM
900-4RL(4TD,AO & SI) 4 relay control with logic - field programmable 4TD, SI, AO, DCM + TDM, RCM + TDM
900-8F 8 fused 4AMP max outputs NEW
900-8P 8 PTC 1.8AMP output NEW
900-BBK Battery backup w/ batteries 873-BB
900-FA Fire alarm FA, EIR

POWER SUPPLY OPTION BOARD COMPATIBILITY

Option Board Von Duprin PS914 Schlage PS902, PS904, PS906
900-2RS Yes No
900-2Q Yes Yes
900-4R Yes Yes
900-4RL Yes Yes
900-8F Yes Yes
900-8P Yes Yes
900-BBK Yes Yes
900-FA Yes Yes

NOTE:
The newer PS900 option cards can NOT be used in the PS873 power supplies.
The PS873 option cards also can NOT be used in the newer PS900 series power supplies


Questions and Answers
Q: Good evening, I was wondering if you guys sell the transformer, for the Locknetics 510 series power supply and the primary fuse: PRIMARY FUSE SIZE 1.25 amp, 5 x 20 mm. Please contact me as soon as possible.
A: We do not sell the transformers or fuses as stand alone items for the Locknetics 510 power supplies.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: Would you guys by any chance have a troubleshooting list or log. I'm having trouble with our unit. It keeps shorting out as soon as i connect the ving unit. Any help would greatly be appreciated Thank you.
A: what are you exactly connecting to the Locknetics 510 Power Supply?
Q: Can I purchase an add-on to I can control the lock wirelessly?
A: I would imagine wirelessly you can control whether or not the power supply was receiving power.
Q: Hello, I have a unit that runs on a time clock, the line power shuts on and off on time, but the batteries keep the maglocks engaged. Does the unit not shut off, or is there an issue with the unit switching off the back up batteries?
A: As long as there are functioning backup batteries installed in the Locknetics 510 power supply, there will be uninterrupted power to the locking unit.
