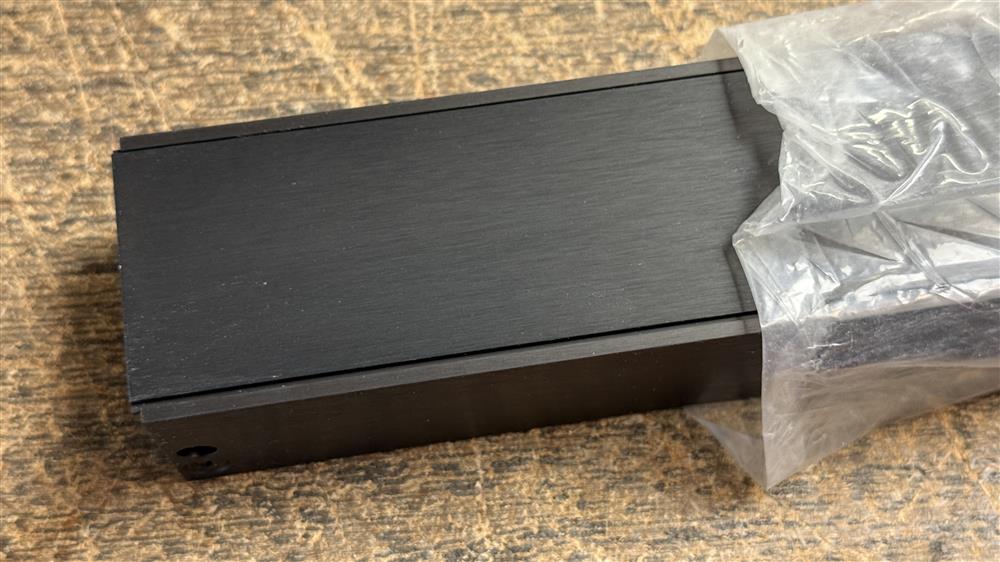

Locknetics 350+ Narrowline Electromagnetic Lock


Locknetics 350+

Locknetics 350+ Narrowline Electromagnetic Lock


Manufacturer: Locknetics
Price: $582.10






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Quick Ship Item
Immediate - In stock ready for shipment:
8 - Not Required,..............Not Required,Satin Aluminum - 628
Standard - ships within 14 business days.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Locknetics
This item ships from FL.

Magforce Plus 350+ Series: The High Security Narrowline Solution
  • Double lock
  • 1200 pounds of direct holding force
  • Exceeds ANSI/BHMA A156.23 Grade 2 standards
  • UL listed as an auxiliary lock for a 3 hour fire rated opening
  • For single, inswinging or outswinging, hollow metal, aluminum, and wood doors and frames and glass doors.
  • Easily interfaces with electronic access control systems, automatic door operators and fire or other hazard sensing systems for egress and emergency egress.
  • Input voltage: 12 or 24 VCD (dual voltage, field selectable)
  • Current Draw: .75A @ 12 VCD or .38A @ 24 VCD
  • Overall size: 2-1/8" H x 12-1/2" L x 1-11/16" D
  • Designed for doors requiring a high level of security.
  • Modular design employs a standardized circuit board with easy to install connectors, adjustable mounting brackets, integrated mounting screws, and slide-in architectural finish plates
  • The 350+ design features a narrow 2-1/8” projection from the frame header
  • The armature housing holds the armature in place, eliminating the noise and sagging known with armatures, and increases the overall reliability of the product
  • The armature housing also provides an aesthetically pleasing look over traditional armature mountings, blending into the
    surrounding environment more easily
Product Brochure Template
  Architectural Builders Supply product suggestions:



Locknetics 320+ MagForce Electromagnetic Lock

DISCONTINUED - Locknetics electromagnetic lock with 700 lbs of direct holding force for single hollow metal, aluminum, and wood doors.

Price: $0.00





Locknetics 390+ DSM / MBS Electromagnetic Lock

DISCONTINUED - Locknetics electromagnetic lock with door status monitor, magnetic bond sensor, and 1650 lbs of holding force for single doors.

Price: $646.82


Questions and Answers
Q: Will mag locks operate with voltage ranges between 12vdc and 24vdc?
A: The entire series of mag locks that Schlage provides advertises 12vdc or 24vdc because they will automatically determine what voltage is being used and switch the internal circuitry based on that voltage. Between approximately 14vdc and 19vdc the circuitry switches between a series and a parallel configuration. If someone were to use 15vdc as an example then they could cause the magnet to act unpredictably which could cause problems for both the power supply or the magnet causing one or both to fail much sooner than designed. It is important to stay with either 12vdc or 24vdc to avoid these possible issues.
