Schlage B520-223

Name: Schlage B520-223 Cam Corbin #11/A/Russwin 7100
Brand: Schlage
SKU: Schlage B520-223
Price: 13.04 USD

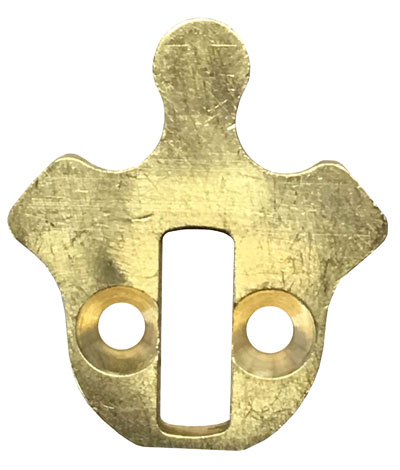

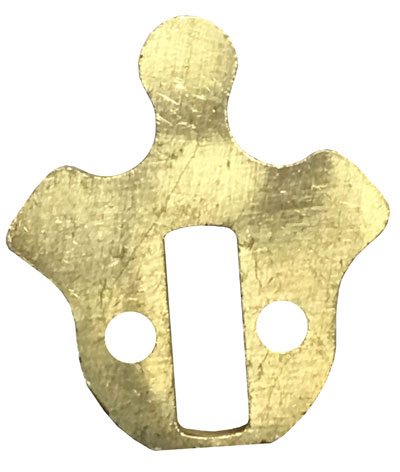

Schlage B520-223 Cam Corbin #11/A/Russwin 7100

× This image is for a similar product but it will differ in size, color and/or other attributes.

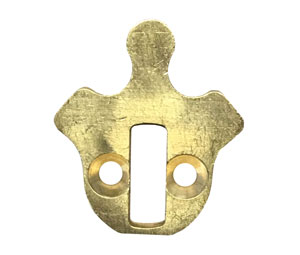

Schlage B520-223 Cam Corbin #11/A/Russwin 7100

Price: $13.04 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 1

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

B520-223 Cam Corbin #11/A/Russwin 7100

B-Series; B520-223 (was XB03-142)
Classic Conventional Non-IC Cam: 20-001
Lockset Compatibility: Corbin Russwin A65 ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. For all Best 40H Series & 30H Dedbolt functions
List of Cams for Schlage Mortise Cylinders

Cams for Schlage Mortise Cylinders in other Manufacturers' Mortise Locks

	Modular cylinder		Interchangeable core	Classic conventional non-IC	Everest 29 & Primus non-IC
CAM substitutions only allowed on these cylinder numbers:(Order example: 20-001 X B210-731 626 S123)	20-001, 20-002, 20-500, 20-501, 20-515, 20-700, 20-701, 20-715, 26-021		20-059, 20-061, 26-064, 20-763, 20-771, 26-091, 26-094, 80-302, 80-110, 80-132, 80-102	For conventional cylinders manufactured before July 2010 not available with cylinder	For Primus & Everest cylinders manufactured before July 2010 not available with cylinder
	1 1⁄8", 1 3⁄8", 1 5⁄8"	1 1⁄4", 1 1⁄2", 1 3⁄4"	N/A	N/A	N/A
Corbin Russwin® DL4000 Series (Old Corbin 420 and Russwin 1503)	B520-730	B520-731	B520-254 (was XB11-426)	B520-295 (was XB11-458)	B520-366 (was XB11-656)
Corbin Russwin® ML2200 Series (Old Corbin 7000-9000 and Russwin 4000-5000) All functions except ML2255 and ML2242 inside (see straight cam)	B520-732	B520-733	B520-253 (was XB11-352)	B520-233 (was XB08-899)	B520-309 (was XB11-629)
Corbin Russwin A65 ML2200 master ring deadbolt functions manufactured before 6/10/93 and old Russwin cast iron residential locks. For all Best 40H Series & 30H Deadbolt function	B520-734	B520-735	B520-360 (was XB11-817)	B520-223 (was XB03-142)	B520-367 (was XB11-887)
Yale® 2160 Arrow ® #004 Sargent ® 13-0660 All functions except 16 inside and 50 outside	B520-736	B520-737	B520-296 (was XB11-461, replaces XB11-484)	B520-256 (was XB11-430, replaces XB10-659)	B520-329 (was XB11-631, replaces XB11-630)
Best 30 Latch function	L583-476	L583-477	K510-730	B502-191	B502-948
Falcon Series MA Mortise Lock Excluding MA381 Function			B520-698

Video Detail Page

Questions and Answers

Q: What is the part number for a Schlage cam to operate a Corbin lock?

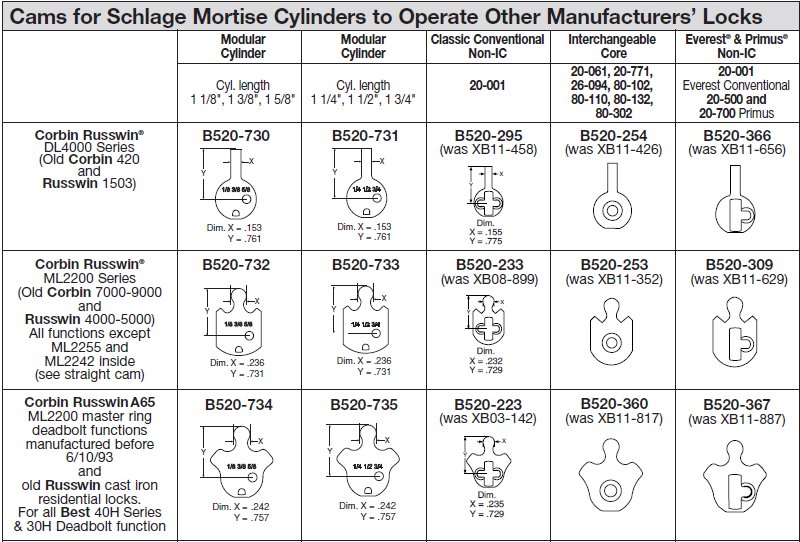

A: Schlage offers several Corbin Russwin competitor cams. The left most column in the image below describes what Corbin function the cam is used on and the additional columns show Modular, Classic, IC, and Everest cam equivalents. See these two tables:

View Image

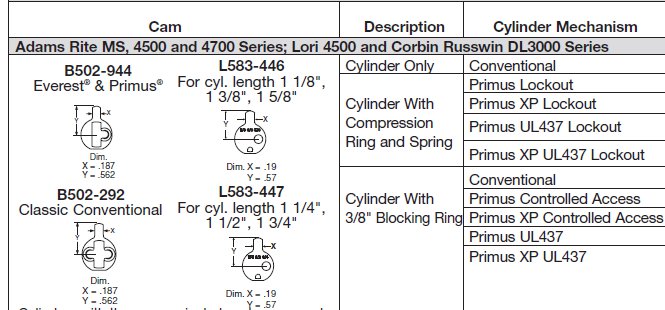

and here:

View Image

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -
