Segal SE19361

copy to clipboard

Segal SE19361 Double Cylinder Deadbolt, KD Keying, Brushed Brass, Angle and Flat Strikes, Clamshell Packaging

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Segal SE19361 Double Cylinder Deadbolt, KD Keying, Brushed Brass, Angle and Flat Strikes, Clamshell Packaging
Main ImageVideo Review Segal SE19321 Double Cylinder Deadbolt, KD Keying, Brushed Brass, Flat Strike only
More from Segal
Price: $132.68 USD
Ships From
Comments (Optional)
ADD TO CART
This item is not in stock and typically ships in 1-2 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
plain bearingSE 19361 Interlocking Double Cylinder Deadbolt
  • With Angle and Flat Strikes
  • Mounts to wood or metal doors and frames
  • KD keying
  • Solid bronze construction
  • Finish: Brushed Brass
  • Custom Finishes: available and would be the powder coat process. Reach out to our sales department for pricing.
  • Consists of: Lock, strike, rim cylinder, 2 keys, screw pack, cylinder trim ring, mounting plate and instructions
  • Clamshell packaging
  • Interior cylinder is drilled and pinned with 4 - chambers. The reason for the 4 pins in the interior cylinder versus the 5 pins in the exterior cylinder is so that you can duplicate the key minus the last cut and leave it in the lock inside for emergency exit in case of a fire, and if someone steals that key they can't use it in the outside cylinder later on. For this reason we see a lot of double sided jimmy proof locks made like this.

Segal Door Lock Installation


Double Cylinder Rekeying Explained

Video Review of Segal SE19321 Double Cylinder Deadbolt, KD Keying, Brushed Brass, Flat Strike onlyVideo Detail Page
Questions and Answers
Q: Where can I find schematic to fix and put back together myself??
A: I don't believe that there is one published anywhere.

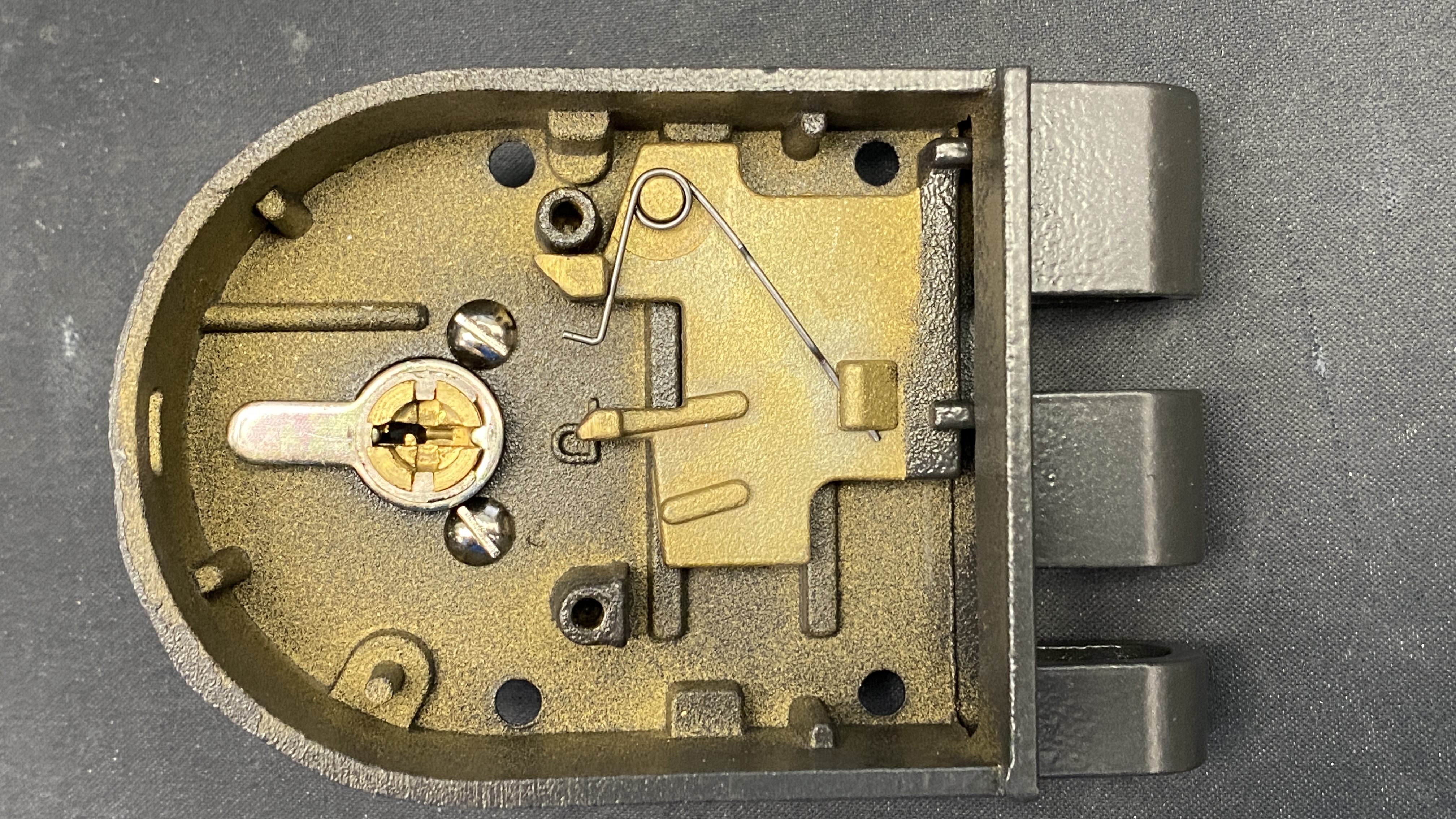

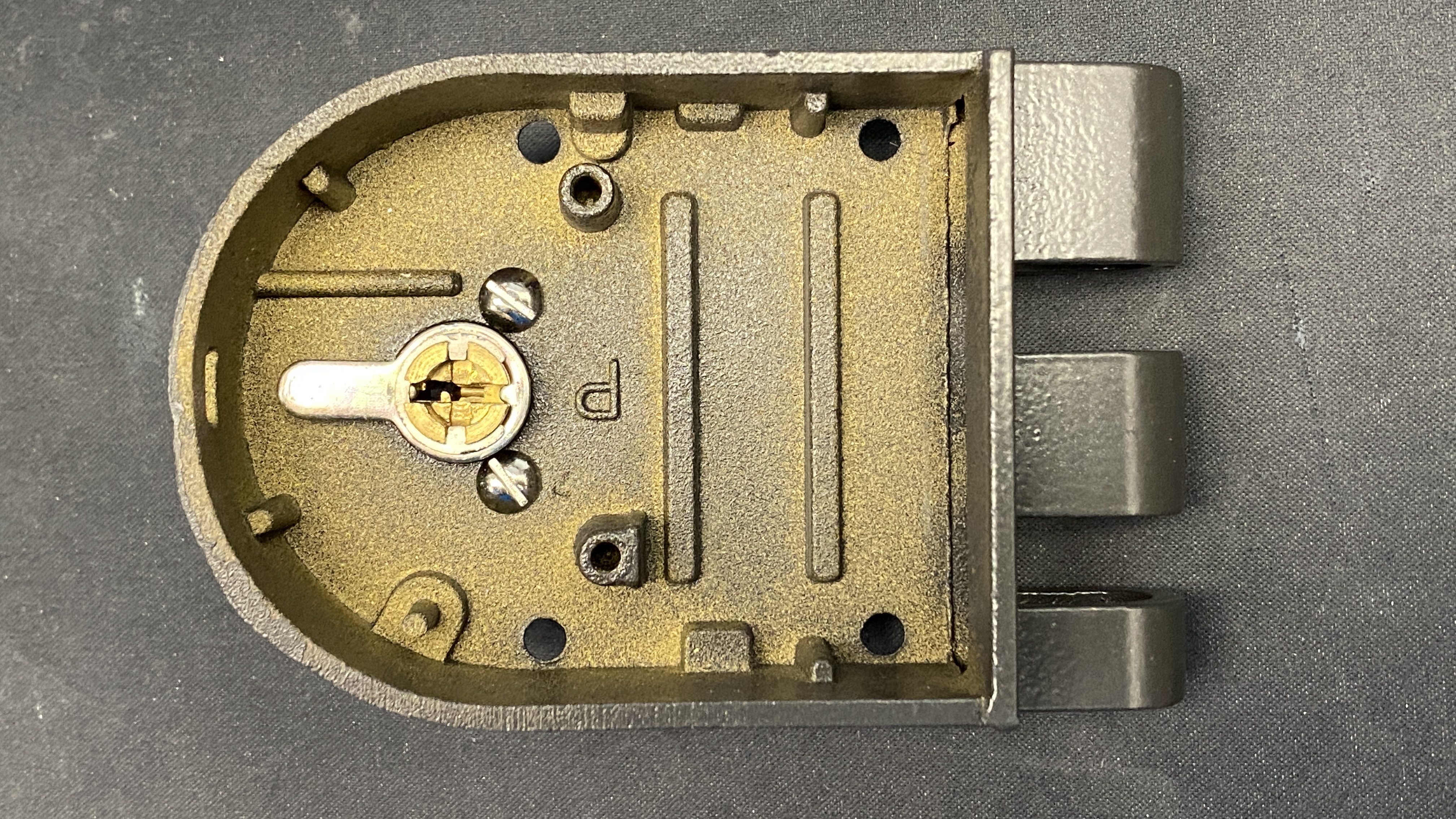

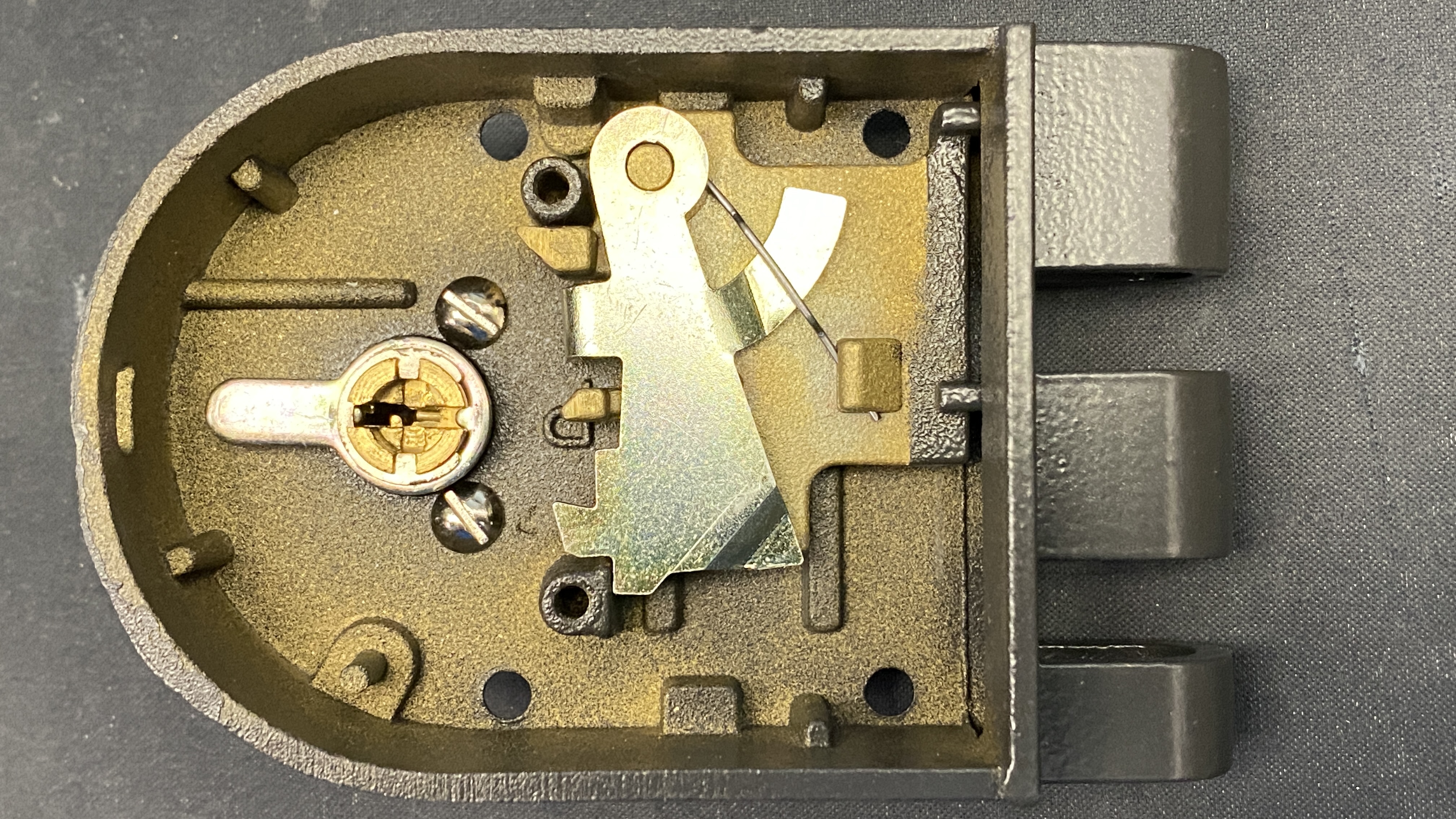

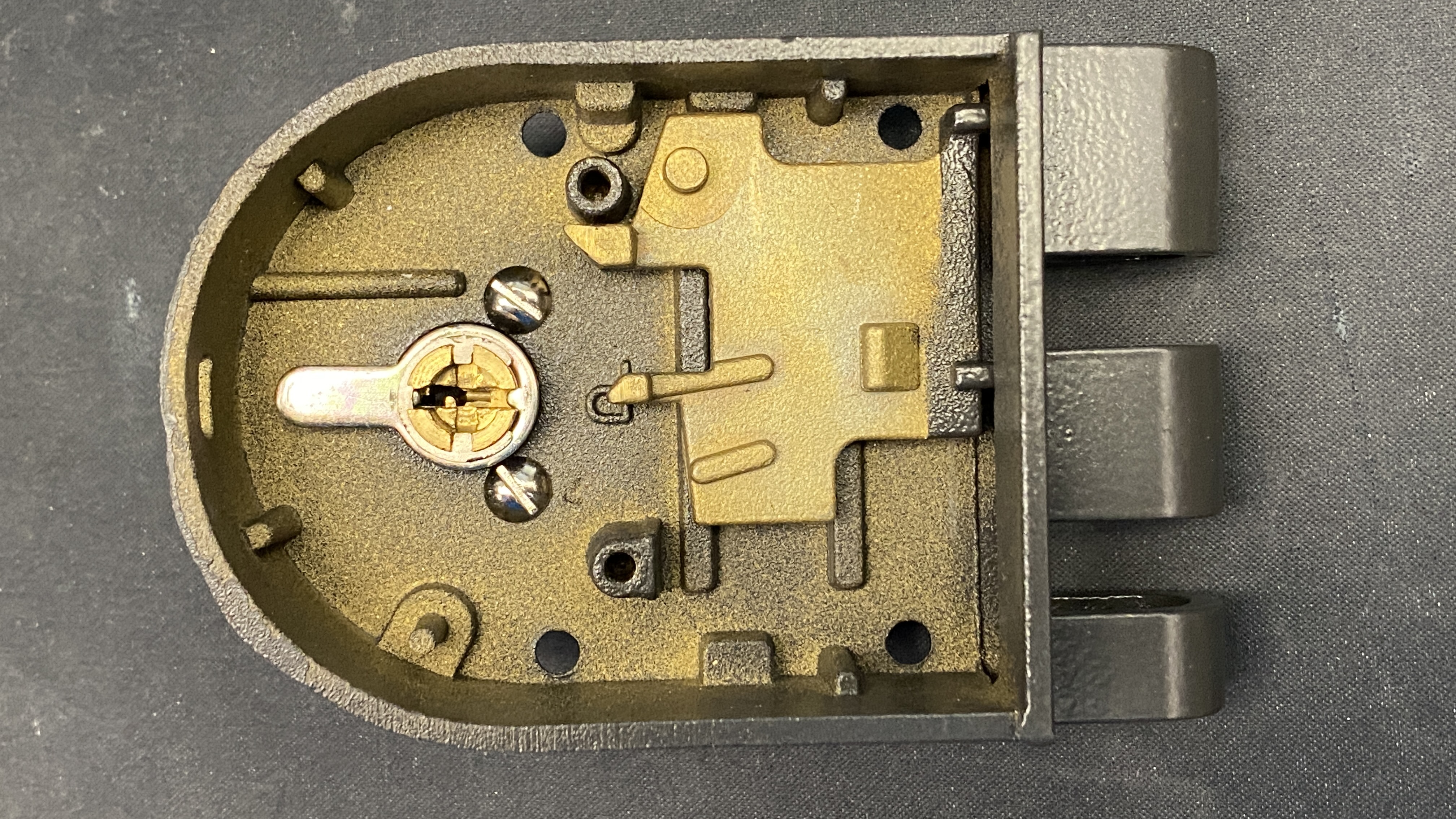

I have taken one off the shelf and have removed the back cover and have taken the following 4 photographs:

View Image

View Image

View Image

View Image

showing the lock with each of the three parts removed so that you can follow those steps and place the unit back together.

If you have any specific troubles with this please feel free to reach out to us and we will assist.
