Locknetics DCM

copy to clipboard

Locknetics DCM Dual Control Module

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Locknetics DCM Dual Control Module
More from Locknetics
Price: $401.81 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 23

1-844-809-3667

Sales
Technical Support

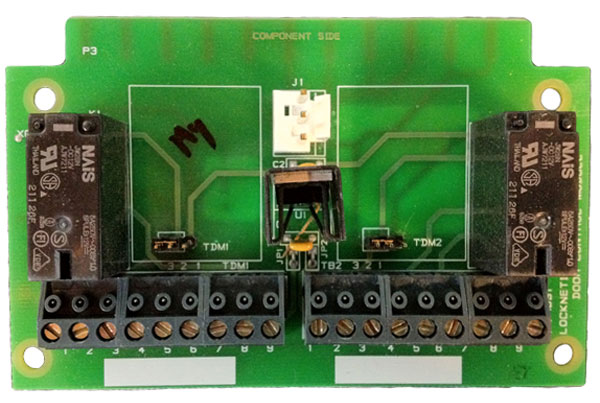

Product Description:
Dual Control Module
  • For use with 510 and 515 series power supplies
  • Plug-in pc card providing separate sections for control of two individual doors.
  • Each section includes a nine (9) position screw terminal block for output power, control hookup and SPDT dry contact outputs (rated 5 amps @ 30 VDC.)
  • Included is a plug to accept a Time Delay Module (TDM) for each section.
  • A plug for interfacing a single card (without the CMR option) to the main board and power assembly is included.
Customer Supplied Photo
Locknetics 510 Power Supply
(Click to Enlarge)

Customer Supplied Photo Shown with 2 - TDM Modules
Customer Supplied Photo


Click to Enlarge Image
Questions and Answers
Q: Is there a warranty with this product ?
A: There is not a warranty offered on discontinued electronic or electrical items from the manufacturer. Absupply.net will warrant this product against DOA.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
