Locknetics 741

Name: Locknetics 741 Break Glass Emergency Door Release with LED Indicator
Brand: Locknetics
SKU: Locknetics 741
Price: 383.71 USD

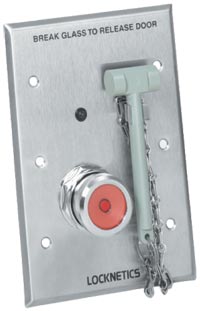

Locknetics 741 Break Glass Emergency Door Release with LED Indicator

× This image is for a similar product but it will differ in size, color and/or other attributes.

Locknetics 741 Break Glass Emergency Door Release with LED Indicator

Video Review Locknetics 741 Break Glass Emergency Door Release with LED Indicator

Price: $383.71 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Emergency Break Glass Release with LED Indicator

Surface mount in a standard 3-gang enclosure
LED Indicator
Compatible with all Fail Safe type electronic locking systems
An effective alternative to the standard pull box
Stainless steel standard finish
Contact rating: 6A @ 120 VAC
Clearly marked signage indicating purpose of the release
Designed for use as emergency releases of non-designated egress doors such as in individual and partitioned laboratories, secluded testing areas, or other isolated work rooms that are purposely provided with exit doors.
The “break glass” concept may be preferred over the pull station, because it is less vulnerable to misuse or tamper actuation.
Units consist of a replacement Break glass cartridge, that normally holds the plunger-activated switch depressed, until the cartridge lens is broken. When the lens is broken the plunger moves forward and alters the switch contact position.
Four replacement lens disks are provided with each assembly.
The small hammer is attached to the Break Glass Assembly via a mounting clip along with a 12" chain, to insure it will not detach from the assembly.


Series Instructions	Instructions	Installation Instructions	Glass Servicing Instructions

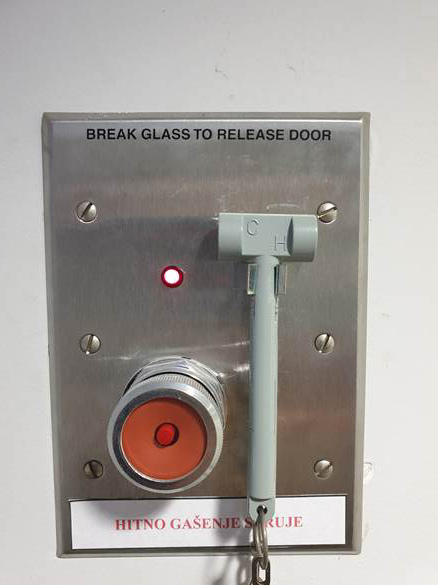

Customer Supplied Photo
Locknetics 741 Break Glass Emergency Door Release with LED Indicator

(Click to Enlarge)

Video Review of Locknetics 741 Break Glass Emergency Door Release with LED Indicator

Video Detail Page

Questions and Answers

Q: Does Model #741 Protective Shield/Gasket and Glass can be sold separately? Please advise. Thanks.

A: Indeed it is and can be seen here:

Click Here

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: We found on the internet model 741-24 also by Locknetics. Does it mean that it works on 24V? Do you have on stock model 742 Locknetics? The Locknetics 741 & 741-24. What is the difference please

A: The 741 is an emergency break glass switch with indicator light. We do not have record of 741-24 having ever been a product. The units I sell are able to work on both 12 and 24 VDC I do sell the 742 as well.
