Q: The Mag Key that came out of the 390DEL would you have one ?
A: I think we do. 390DEL is old, not sold anymore. The new 490DEL doesn’t come with one.
We think the keyfobs we have will work. Hopefully!
Part # IBF ( ibutton keyfob)
Please let us know if there is anything else we can help with.
Q: As it is there is a 5 second push on the door then a alarm starts a 15 second count down them the door unlocked Looking for a 1 or zero push to start the count down Thanks 612.369.5980 cell Larry
A: Larry - I understand you stating the "delayed" feature of the Locknetics 390DEL is no longer an ideal behavior for your application and wonder if the standard 15 second time delay can be modified.
I believe a workable solution can be reviewed on page 9 here:
Download File

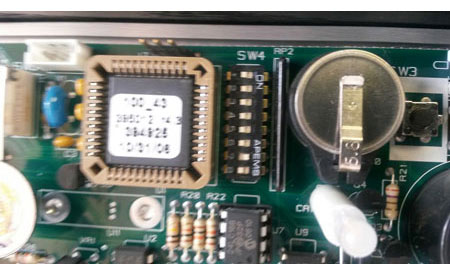

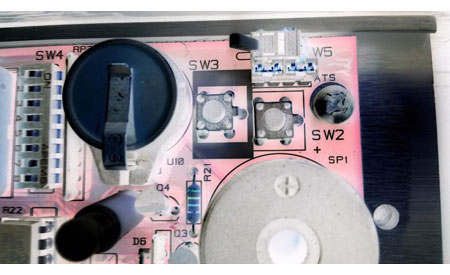

Please review the SW4-2 & SW4-3 jumpers. When set to Right Hand position you should achieve a "DELAYED EGRESS
DISABLED" condition. Please take a moment and let me know if this works for you (please disconnect the power first).
Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: What does a constant blinking yellow light mean?
A: A flashing yellow light is referred to on page 14 of the manufacturer's installation instructions as seen here:
Download File
A flashing yellow condition is when you have put the Locknetics 390DEl into the DOOR PROPPED DELAY programming mode.
Q: Please send me a typical wiring diagram for a Delayed egress maglock used in a fire rated application.
A: Here is a typical wiring diagram for a Delayed egress maglock used in a fire rated application:
Download File
Q: Please send me a typical wiring diagram for a Delayed Egress push side and access control pull side.
A: Here is a typical wiring diagram for a Delayed Egress push side and access control pull side:
Download File
Q: Needing to verify if there is a sic: column [volume] adjustment on the referenced delayed egress device. The device/door is on a rear corridor that is not always staffed and the alarm is NOT loud enough for staff to detect it’s activation
A: There is no volume control on the Locknetics 390DEL but why no add an annunicator to terminals 7 & 8 as seen on page 9 of the installation instructions as seen here:
Download File
and locate it closer to your staff location.
Consider the Alarm Controls TS-34N Satin Stainless Steel Buzzer / annunicator as seen here:
Click Here
