Q: Need DSM parts for locknetics 395935 board. Are these available?
A: We have parts in stock currently. What exactly are you looking for?
Q: Can you tell me what model 390+ the 395935 came out of?
A: That is not a correct part number for the control module. They are discontinued and no longer available. If the control module is bad it can be bypassed and hardwired for 12 or 24vdc. Please find attached. The part numbers for the control modules were P395936-1 for the standard model and P395936-2 for the plus model with MBS, DSM and relocking time delay. These control modules worked for the complete line of the 300 series mag locks except the delayed egress lock.
Q: Can you tell me what model 350/390 this came out of

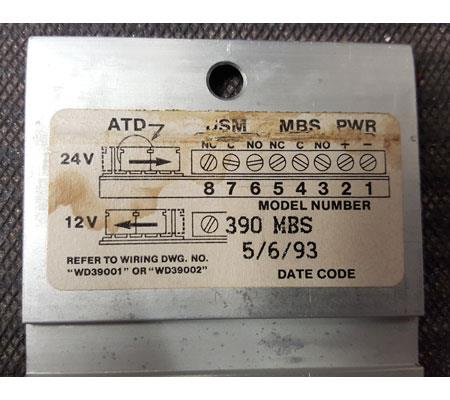

A: I have seen the 395935 come out of the 390+ RTD

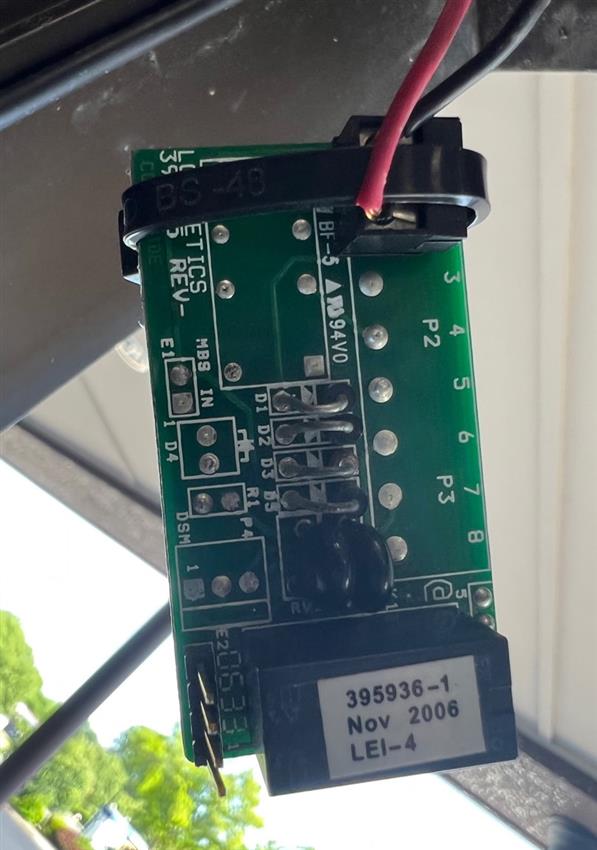

Q: looking to replace the electronic board number 395936-1 what board will replace it
A: Please email a photo of this board to us.
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: I would like to order the locknetics 395935 board but I have a question does this board actually need a magnet on the armature plate to actuate the relays on the board. Bueno, Jaime
A: No - this item does not require the magnet armature plate to be present as the DSM / MBS functions are specifically intended to work based on the presence or lack thereof of the Armature plate.
May I ask your application and why this is important?
Q: I have the 395935 board, was that discontinued? could a P395936-2 work? we have MBS, DSM and time delay required
A: These are discontinued, a P395936-2 will not work and we still have this item in stock and ready to ship.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: How to bypass/hardwire the 395935 for a 350+ mag-lock.
A: Please see the bottom of page 2 here:
Download File
As this link to the wiring diagram dhows wiring for Models without a circuit board = keeping in mind operating the unit without a circult board will give you only basic function.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful - please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here

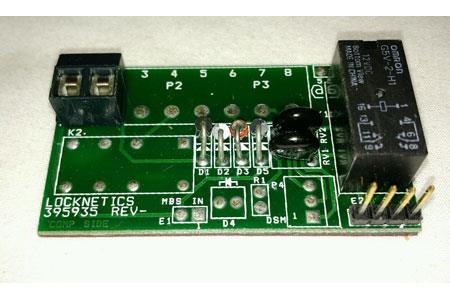

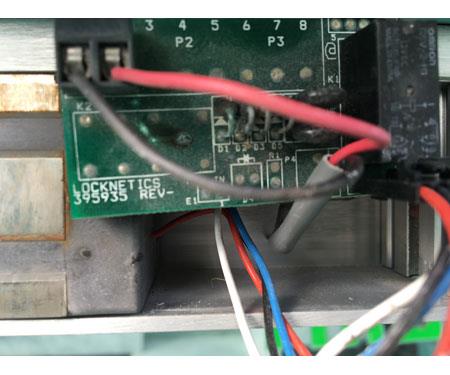

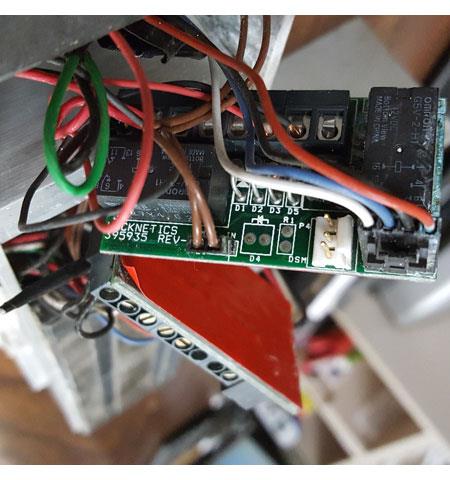

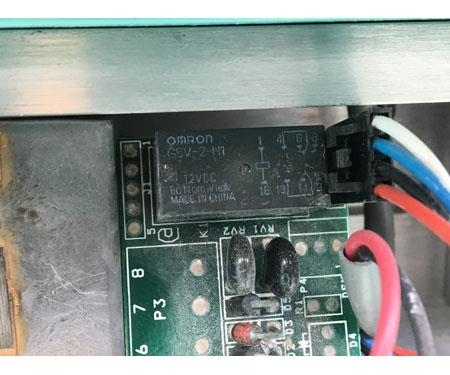

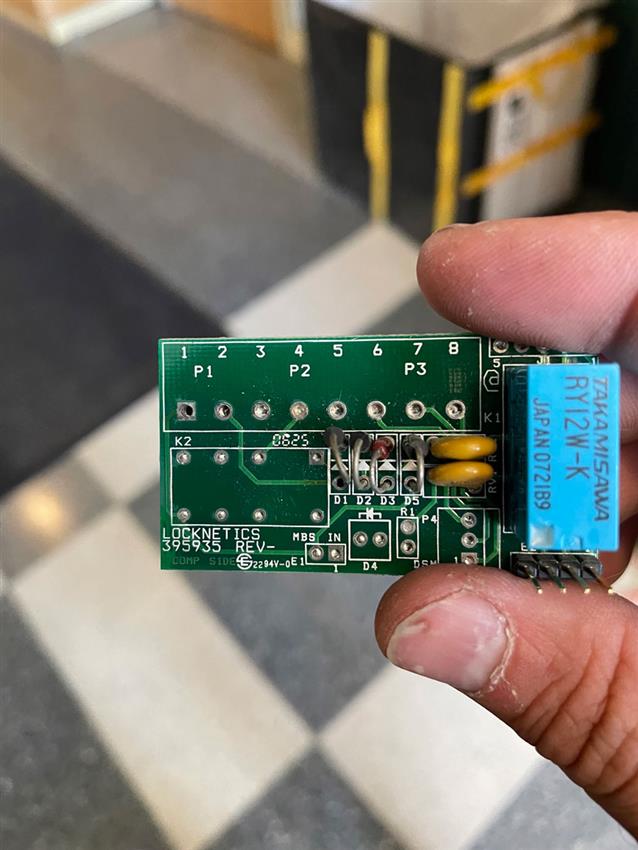

Q: Can you tell me how many variants of the Locknetics 395935 circuit board there are?
A: The 395935 boards should also have -1 or -2 after them
The -1 would go in maglocks without dsm and mbs

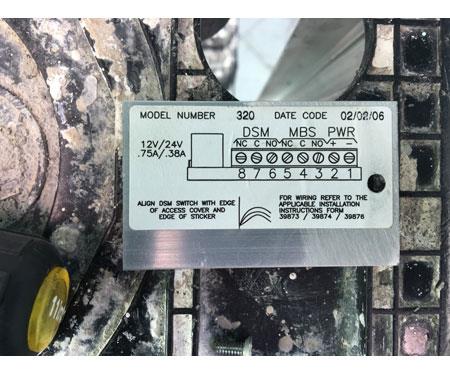

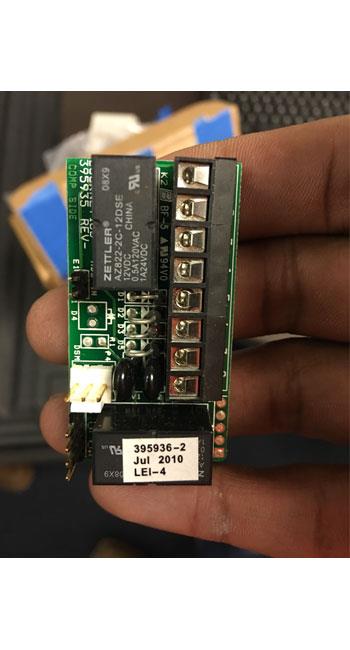

The -2 would go in the plus models with dsm and mbs

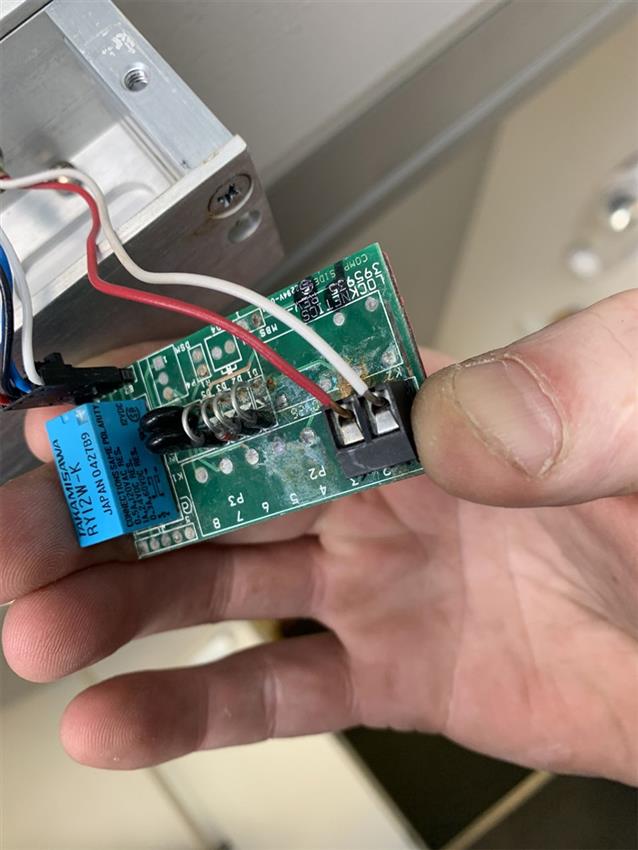

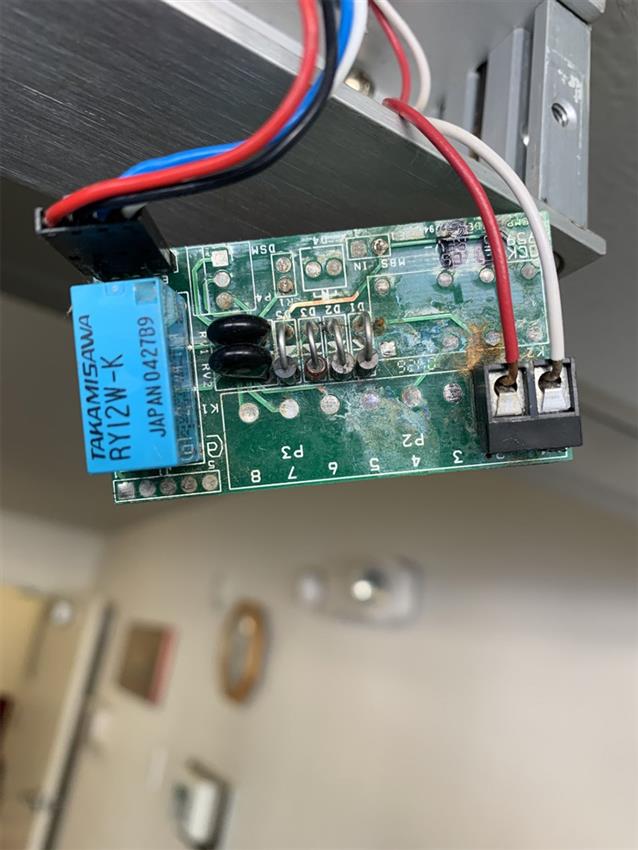

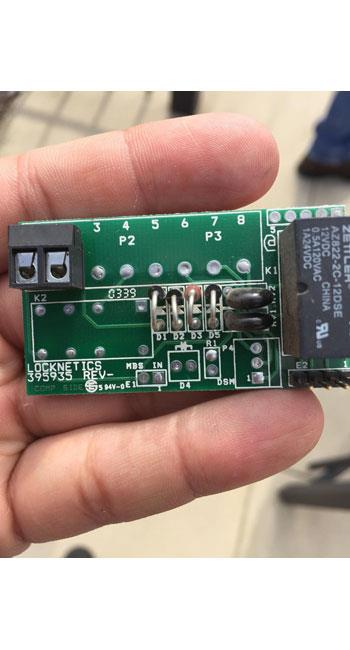

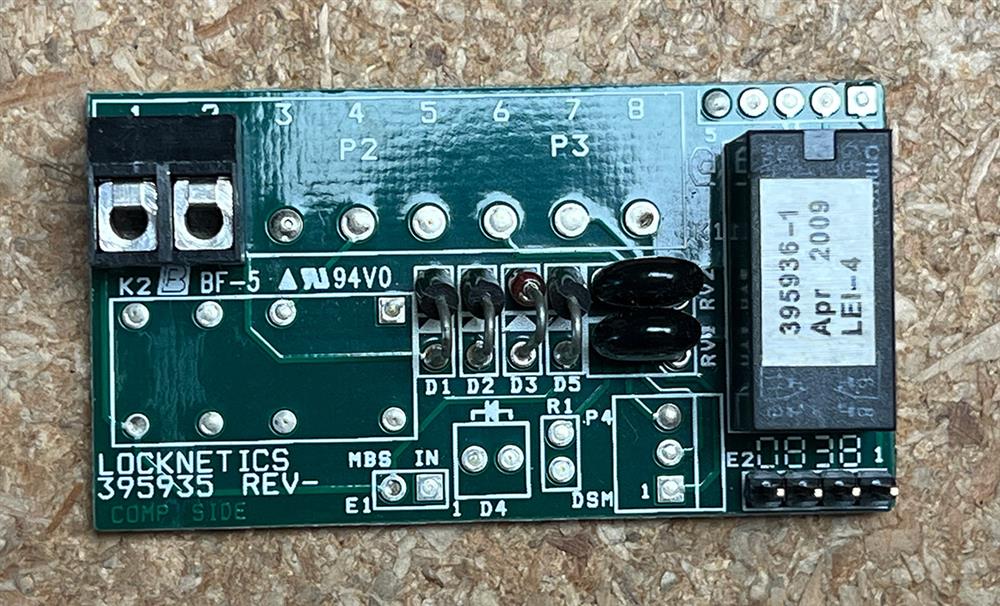

The -1 would have 2 screw terminals for the power

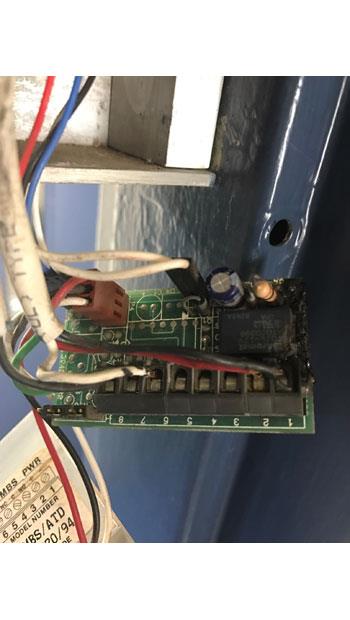

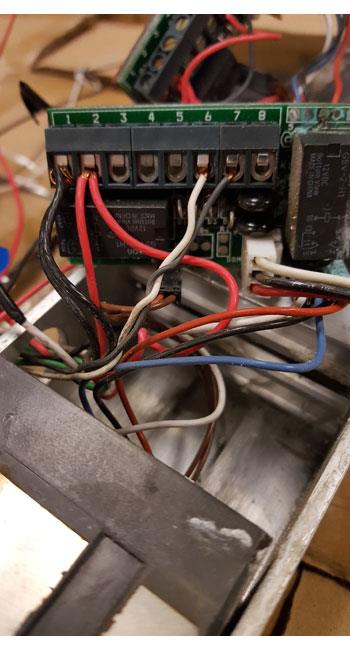

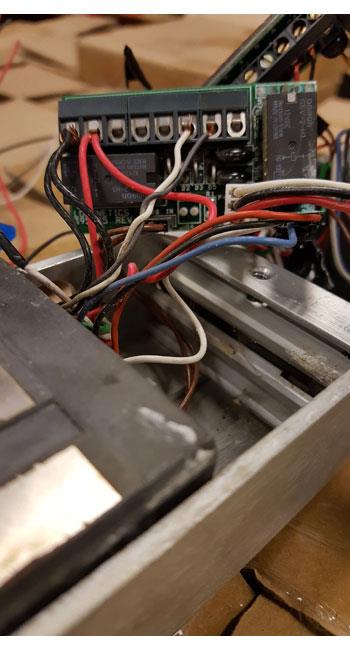

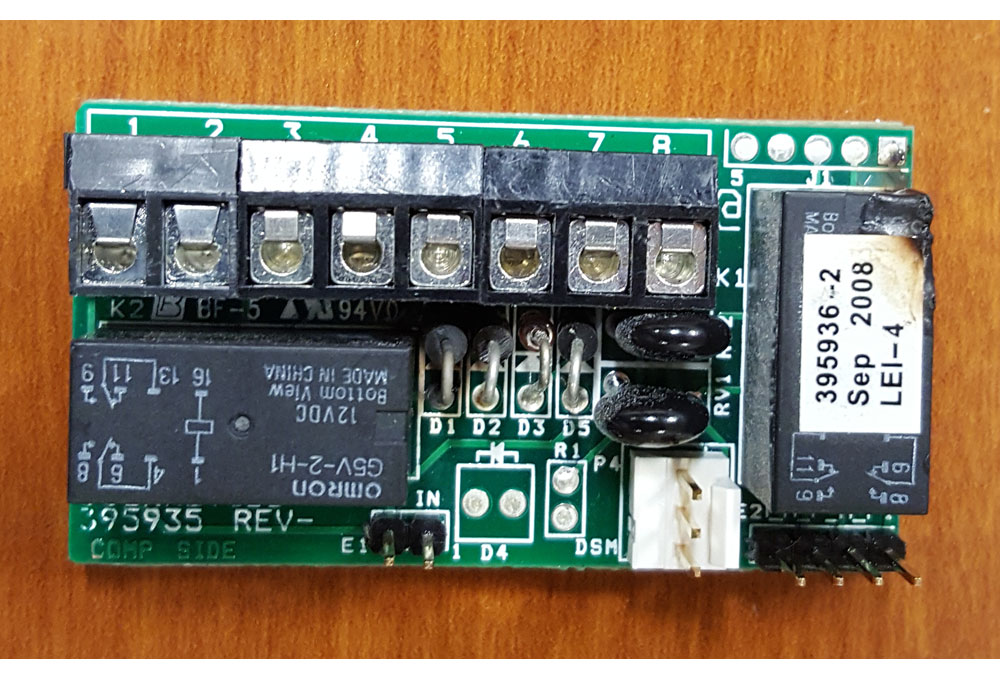

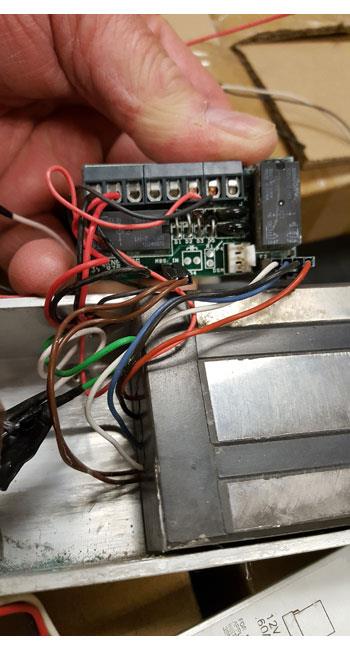

The -2 would have 8 screw terminals

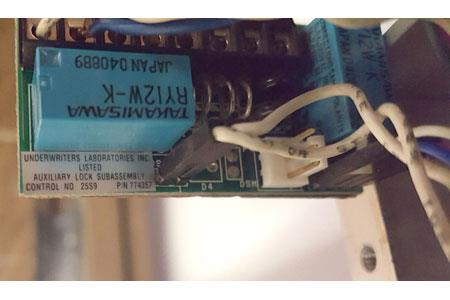

The 394213 are very old versions and they have jumpers for the voltage selection not auto selecting and could have any variant at all, with this one it’s a case of matching the board by looks from the old ones to new one
I hope this helps you
