Locknetics 390+ Control Board 394213

Name: Locknetics 390+ 394213 Control Board for Locknetics 390+ High Security Electromagnetic Lock
Brand: Locknetics
SKU: Locknetics 390+ Control Board 394213
Price: 392.53 USD

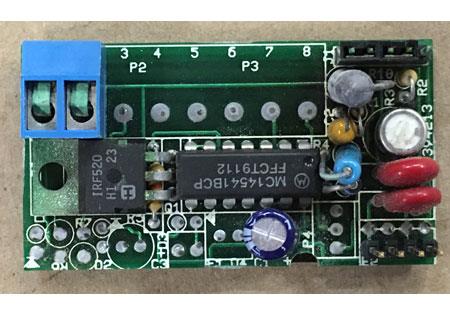

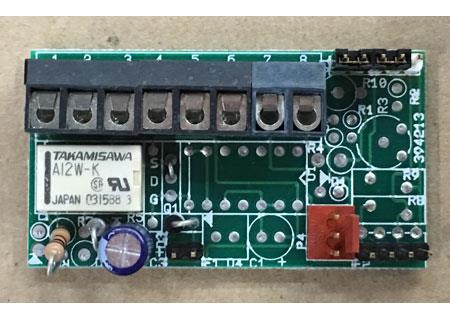

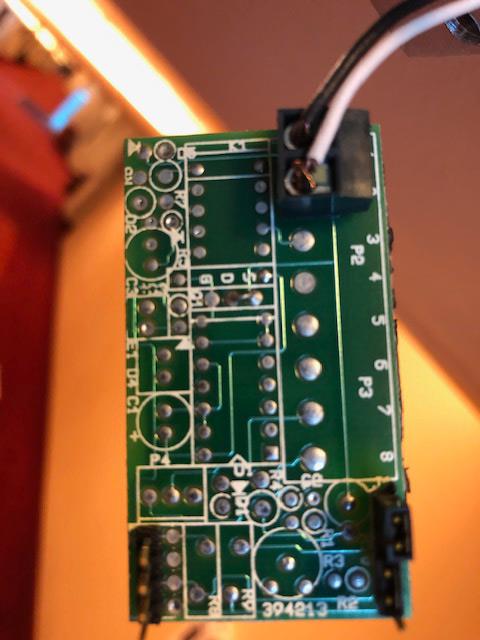

Locknetics 390+ 394213 Control Board for Locknetics 390+ High Security Electromagnetic Lock

× This image is for a similar product but it will differ in size, color and/or other attributes.

Locknetics 390+ 394213 Control Board for Locknetics 390+ High Security Electromagnetic Lock

Price: $392.53 USD

Comments (Optional)

ADD TO CART

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Control Board 394213 for Magforce Plus 390+ Series: The High Security Solution

Control Board for Locknetics 390+ High Security Electromagnetic Lock
Ideal for high security applications.
1650 pounds of direct holding force
Exceeds ANSI/BHMA A156.23 Grade 1 standards
UL listed as an auxiliary lock for a 3 hour fire rated opening and for burglary resistance.
For single, inswinging or outswinging, hollow metal, aluminum, and wood doors and frames as well as glass doors
Easily interfaces with electronic access control systems, automatic door operators and fire or other hazard sensing systems for egress and emergency egress.
Input voltage: 12 or 24 VCD (dual voltage, field selectable)
Current Draw: .75A @ 12 VCD or .38A @ 24 VCD
Overall size: 2-3/4" H x 10-1/2" L x 1-11/16" D
Fully Automatic Voltage Selection simplifies installation
Modular design employs a standardized circuit board with easy to install connectors, adjustable mounting brackets, integrated mounting screws, and slide-in architectural finish plates
The uniquely designed armature housing holds the armature in place, eliminating the noise and sagging possible with other armatures
The armature housing increases the overall reliability of the product and provides an aesthetically pleasing look over traditional armature mountings, blending into the surrounding environment more easily
The armature housing holds the magnets for the DSM option without having to mount an additional plate to the armature, ensuring quicker, more reliable installation

Product Brochure

Template

Wiring Diagram

Installation Template

TJ Installation Template

Replacement Kit for Discontinued Locknetics 390+ Magnetic Lock Installation

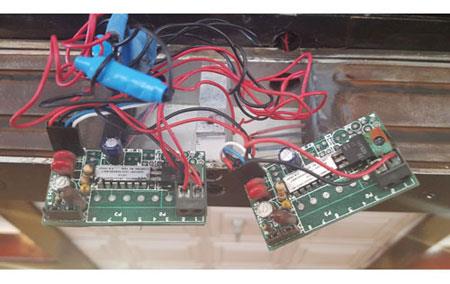

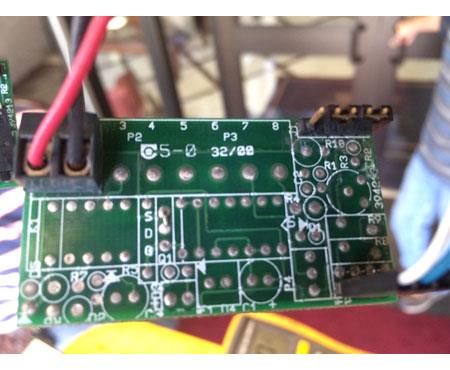

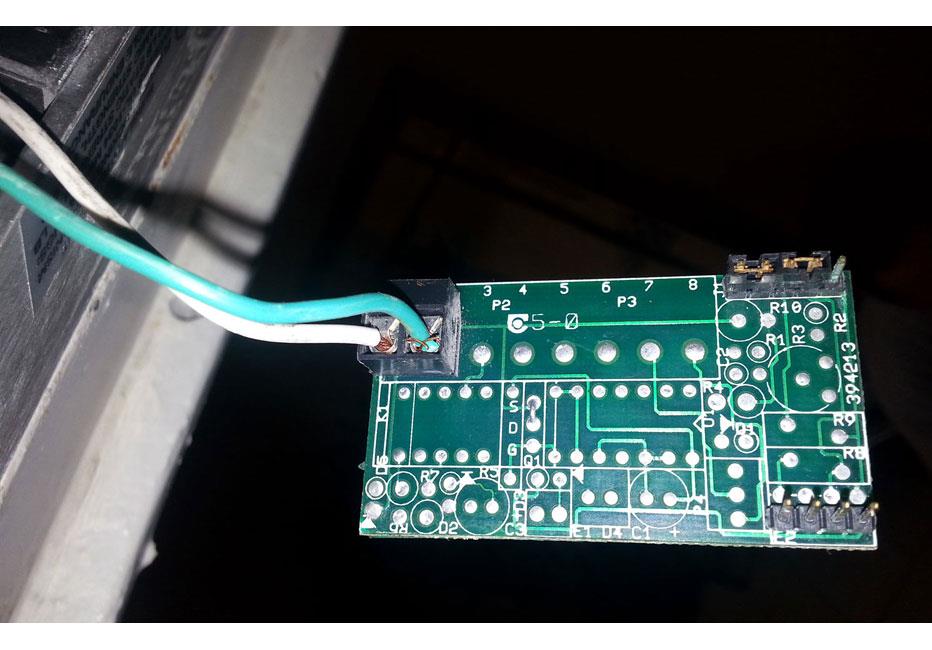

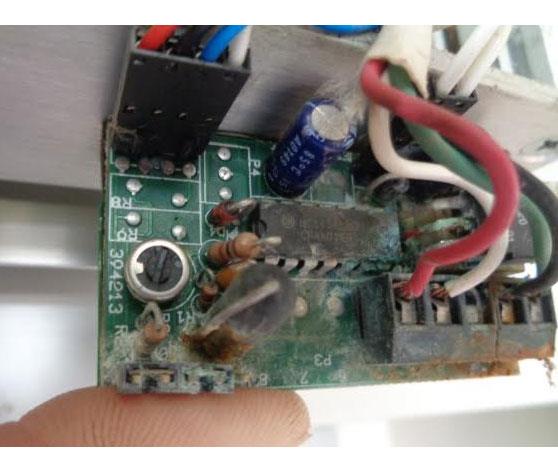

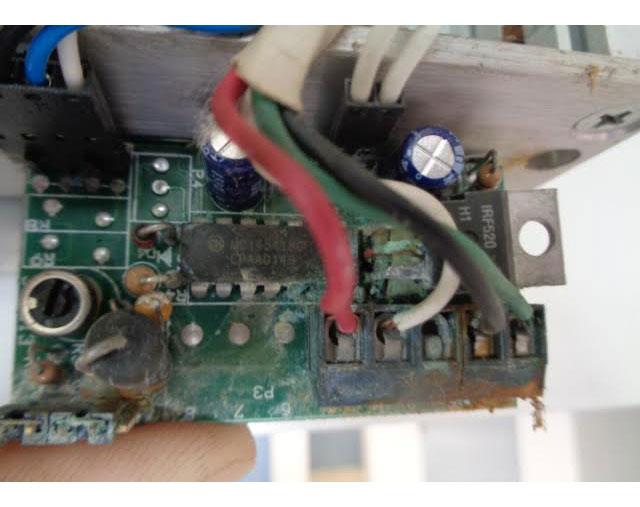

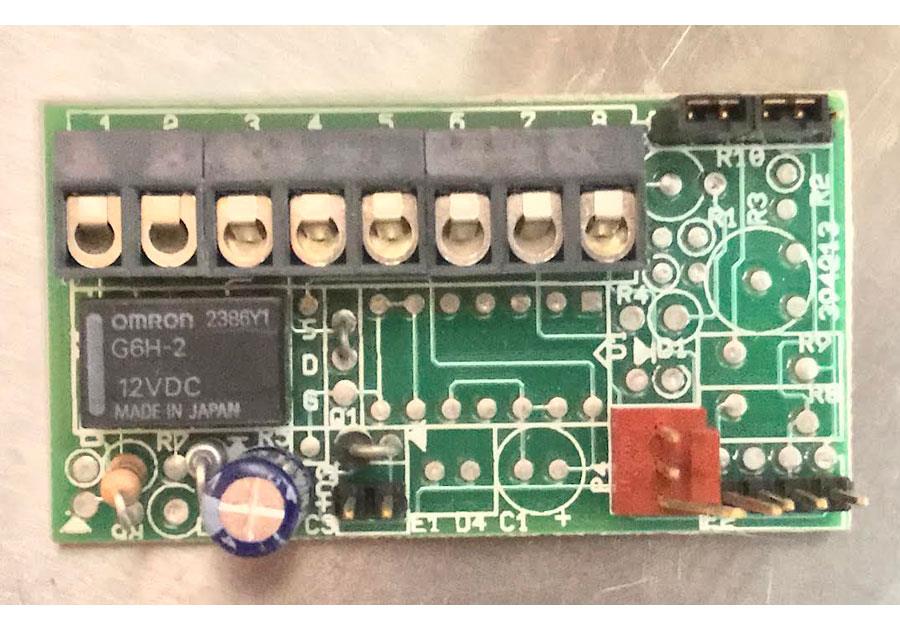

Customer Images:

Questions and Answers

Q: Please send me a wiring diagram for this.

A: The wiring diagram is here:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I need to get the plastic connectors (where the wires connect and you insert in the board) for the Locknetics 515. The 390 board has the same. Thanks

A: I do not have these plastic connectors - I am sorry this is the case as these are discontinued and while I have inventory of both the 5158 and the 390935 board, the 4 - pin connectors I do not have.
