Kwikset 138 1990 version used

Name: Kwikset 138 1990 version Installation Kit - Used
Brand: Kwikset
SKU: Kwikset 138 1990 version used
Price: 561.97 USD

Kwikset 138 1990 version Installation Kit - Used

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $561.97 USD

Comments (Optional)

Low Inventory - This product is discontinued
but there is 1 left in stock
and ready for shipment. Order today.

Sales

Technical Support

Product Description:

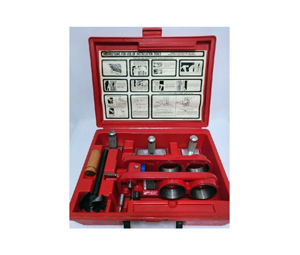

Kwikset 138 1990 version Installation Kit - Used

Details

Kwikset Installation Kit - Used
This is the Kwikset version of the Lock Installation Kit that Kwikset manufactured circa 1990’s and is superior to its discontinued replacement in that it can handle 2-3/8", 2-3/4", 3-3/4", 5" backsets with its only limitation in that it does not a 1-1/2" diameter hole out of the box. If this was an issue I would simply manufacturer a conversion adapter ring for this purpose where it had a nominal OD of 2-1/8" and a nominal ID of 1-1/2". This item was changed from this original design into the replacement which can be seen here Kwikset 138 of which we still have some left in stock at this time at least in the middle of 2020. This tool was/is a favorite of handyman companies and locksmiths alike and back then we knew that we would sell approximately 1 per week.

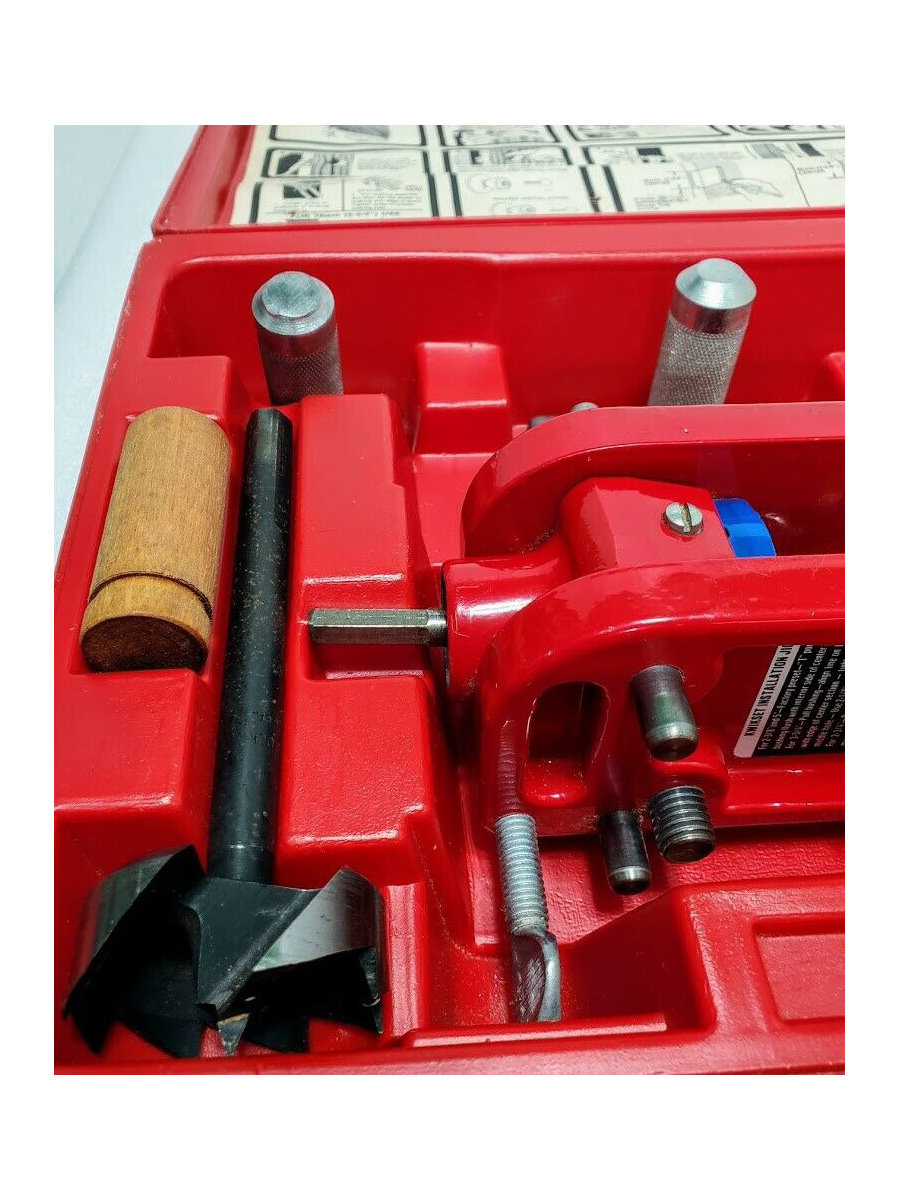

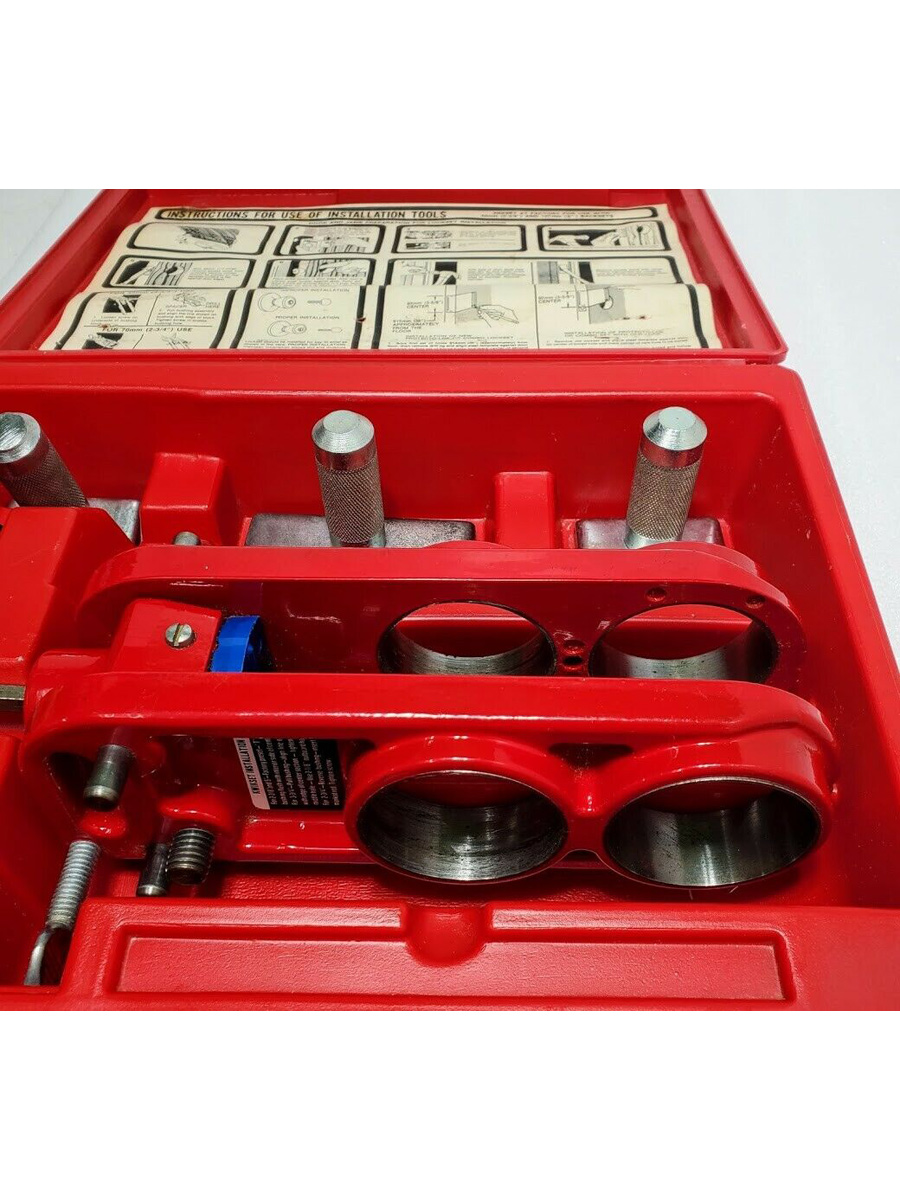

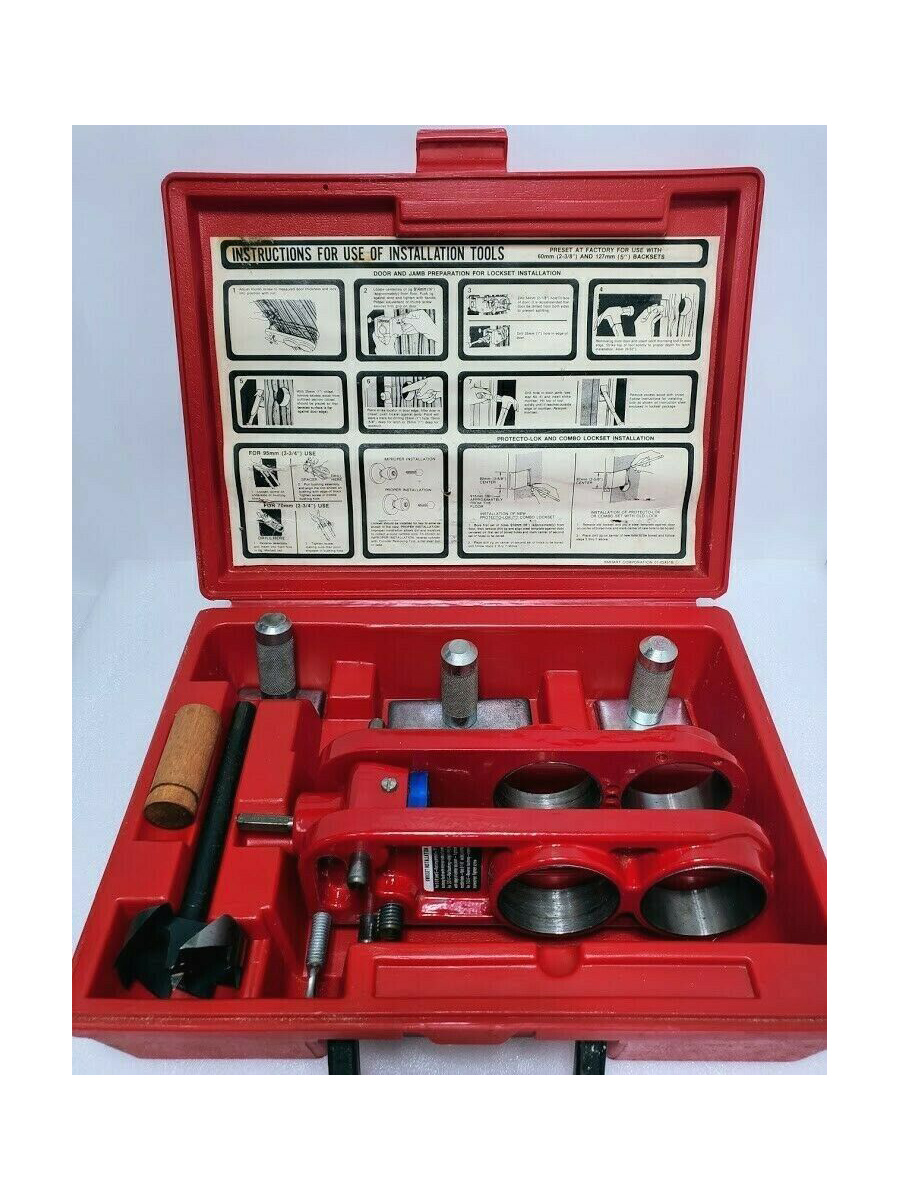

NOTA: The kit we are selling is a used item, which is the exact item seen in the attached photographs.

Installation Instructions

Warranty

Replacement Parts

Model	Function	Video Review
138 138 1990 version 138 1990 version used 138 1990 Version-A 138 1990 Version-A used	Installation Kit - Discontinued Installation Kit 1990 version - Discontinued Installation Kit 1990 version used Installation Kit 1990 Version-A Installation Kit 1990 Version-A used	1990 version

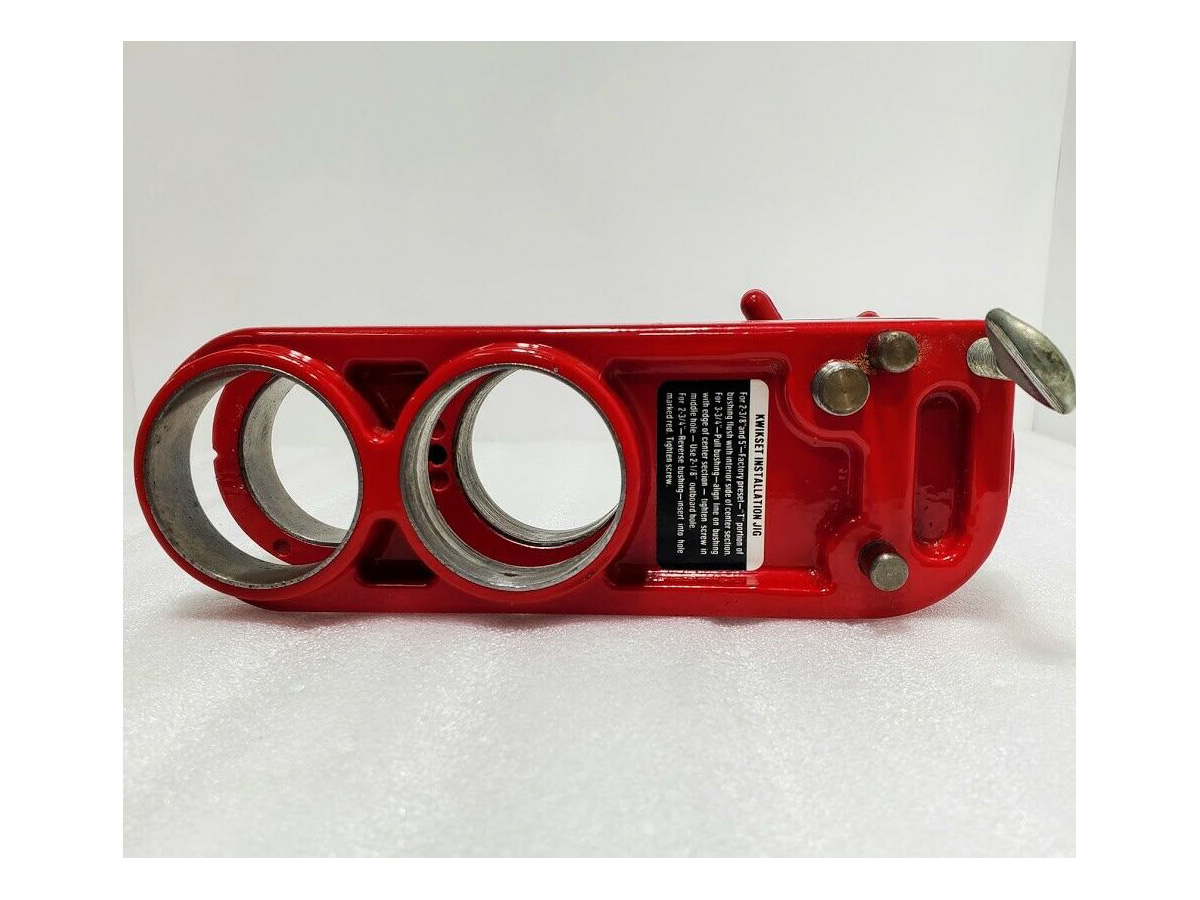

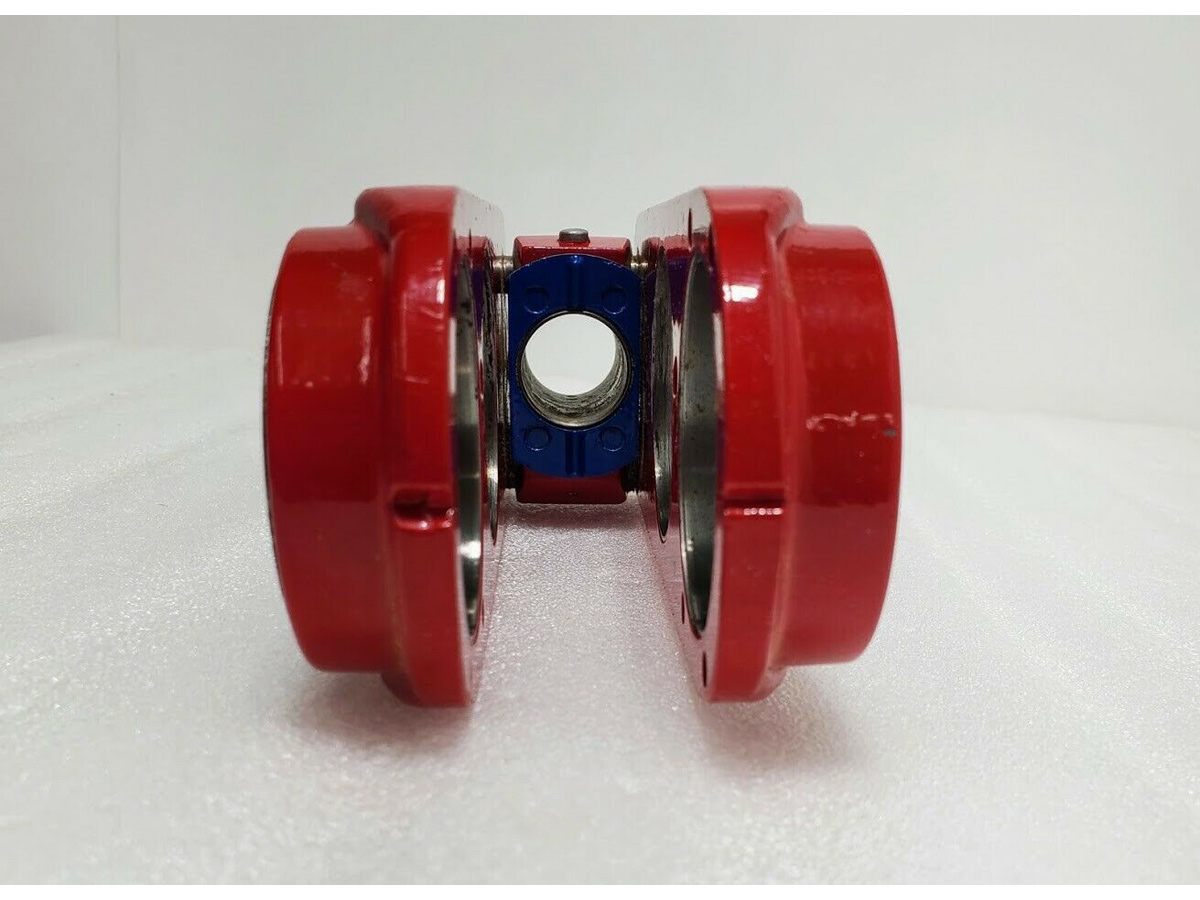

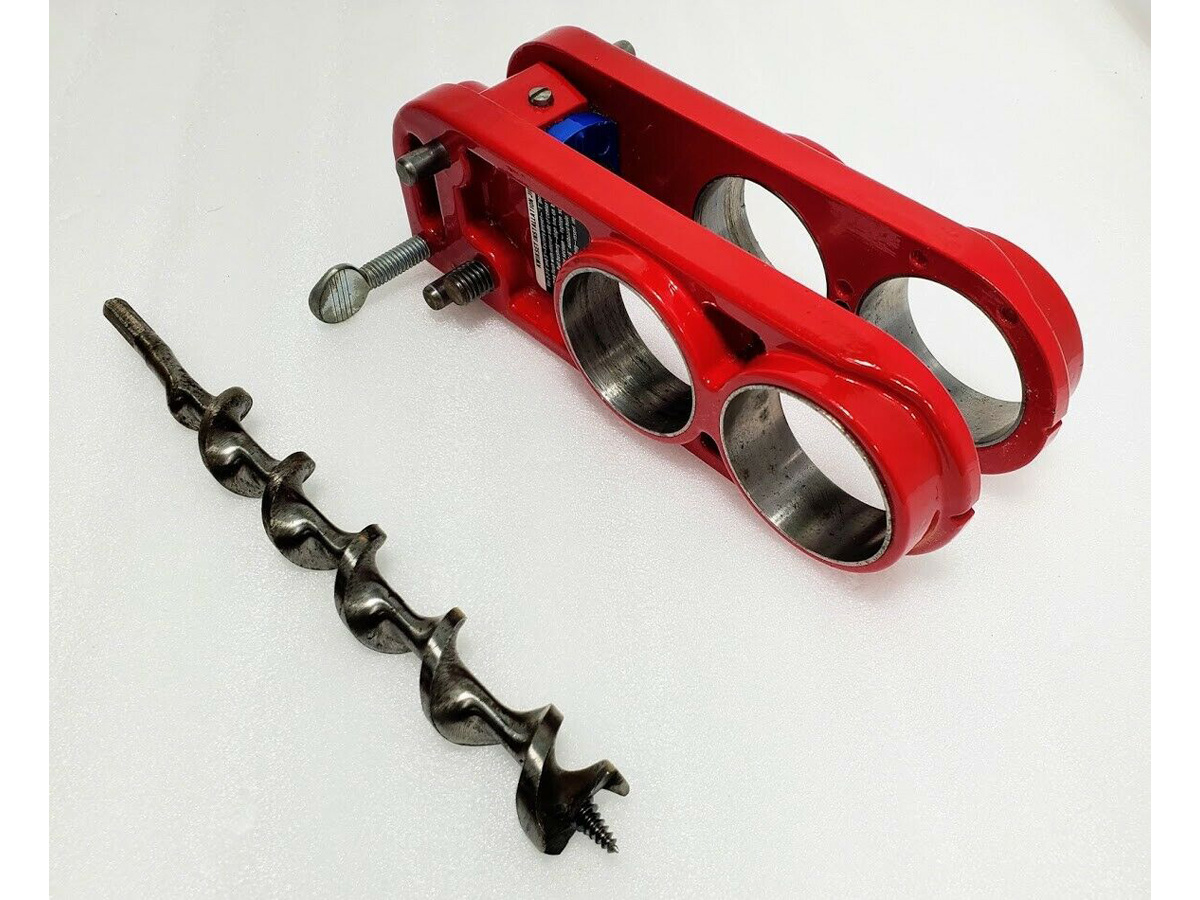

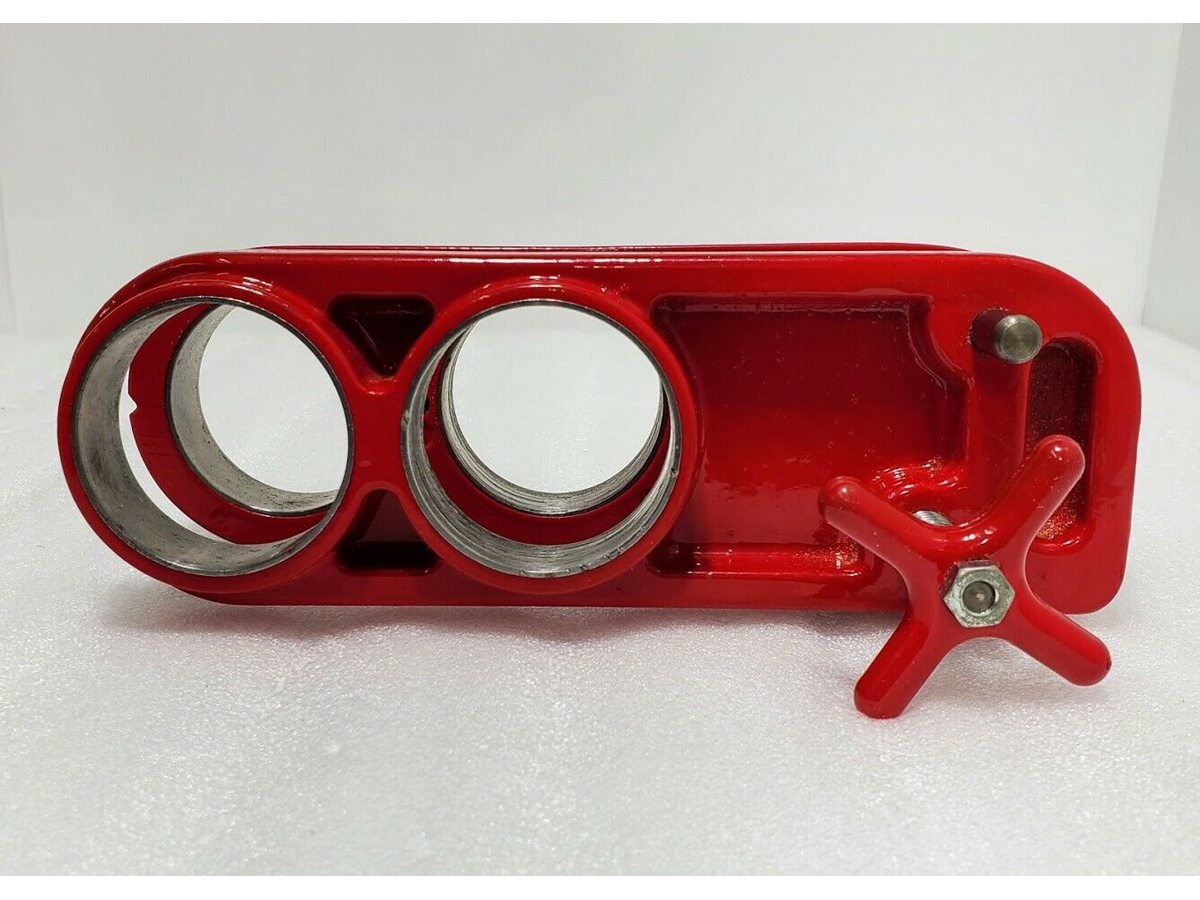

89900-001	Jig with Wood Arm Guide	-
89901-001	Wood Door In-Line Guide Arm	-
89902-001	Metal Door In-Line Guide Arm	-
89903-001	1" Spade Bit	89903-001

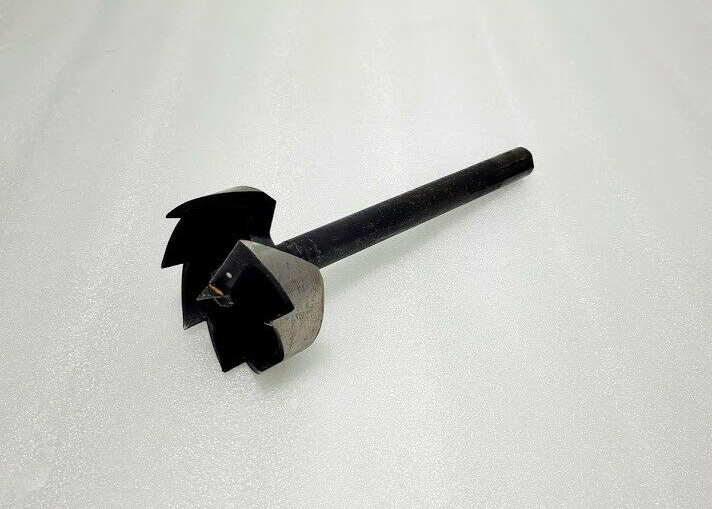

89904-001	2-1/8" Multi-Spur Bit	89904-001
89905-001	1-1/2" Multi-Spur Bit	-
89906-001	2-1/8" Hole Saw Bit	89906-001
89907-001	Hole Saw Mandrel	89907-001
89908-001	Snap Rings	89908-001
89909-001	Full Lip Strike Mortise Tool	89909-001
89912-001	Latch Mortise Tool	89912-001
89915-001	Maximum Security Strike Mortise Tool	-
89918-001	Quick Bit Changer	89918-001
89919-001	Strike Locator	89919-001
89920-001	Strike Locator Tip	-

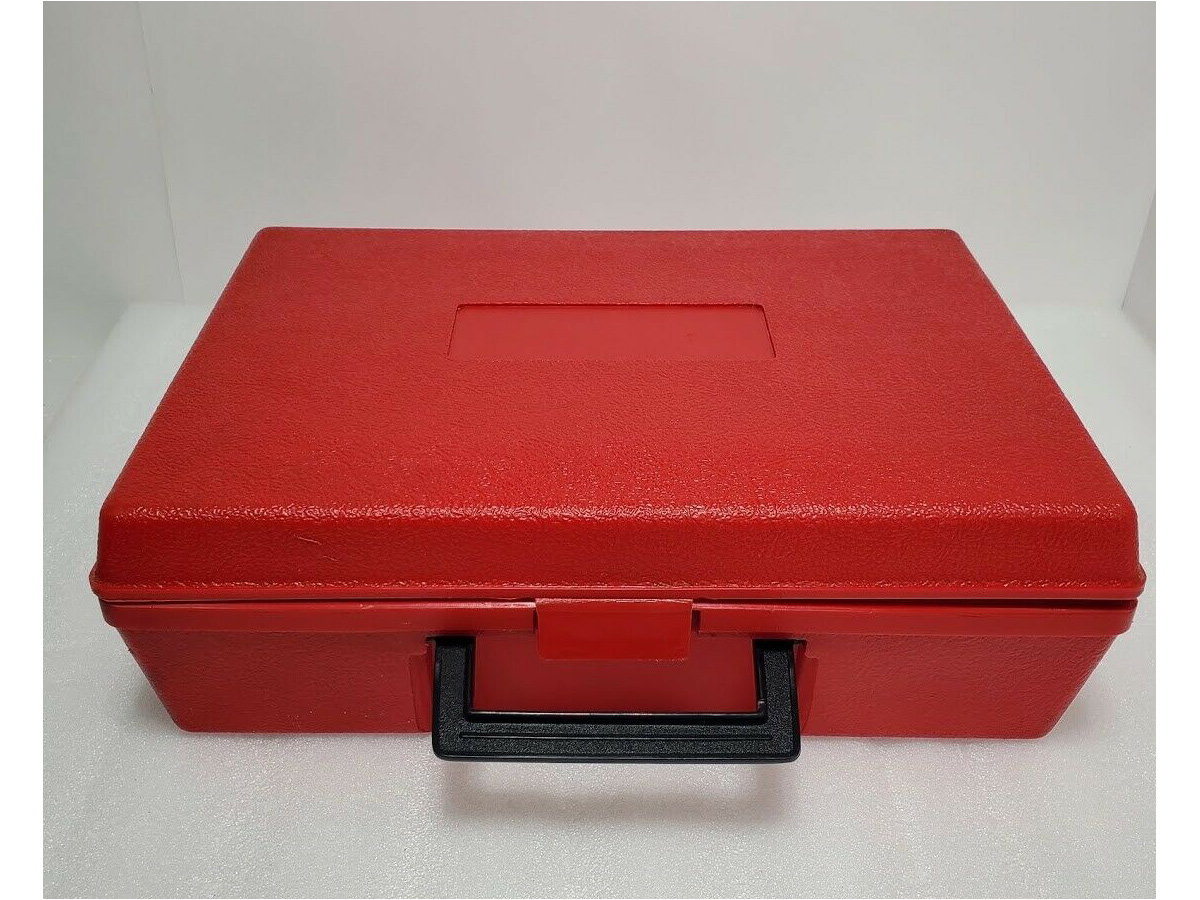

89921-001	Kit Box	-
89922-001	Jig Bushing	89922-001
89923-001	1-1/2" Adapter Ring	89923-001
89924-001	663 Boring Depth Stop	89924-001
89925-001	Boring Template	89925-001
89926-001	1/8" Hex Ring	-
91300-001	Door-Lock Installation Kit (for Wood Doors)	-
83125-001	Tumblers	-
Kwikset 138 Case Only	Case Only	-
