DOR-O-MATIC Rim Exit 1790 EO


DOR-O-MATIC 1790 EO

DOR-O-MATIC Rim Exit 1790 EO


Manufacturer: Dor-O-Matic
Price: $339.11






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Dor-O-Matic
This item ships from MA.


Dor-O-Matic Rim Exit Device1790 EO


Now, Dor-O-Matic is pleased to announce the new standard for aluminum door exit devices, the 1790. The new exit device continue Dor-O-Matic’s commitment to quality and long-lasting performance, with the sleek, modern touchbar design.The design of the 1790 is ideally suited for demanding, high-traffic applications.


Product Features
  • Carries the Underwriters Laboratory (UL) label and are approved for life safety
  • Metal end caps protect the device from damage caused by passing carts and equipment.
  • Less maintenance and adjustment
  • 1790 pushbar width is 21/2˝
  • The devices project 3˝ in the neutral position, and 21/4˝ in the depressed/dogged position
  • Grade 1
  • Exit Only






Installation Instructions 2004 version Template
Touch Bar Info Catalog
Installation Instructions 2017 version 179L Control for 1790 Rim Panic Device
Order Options Guide
Color Options
US28 628 Anodized Aluminum – Clear
DC13 710 Anodized Aluminum – Dark Bronze
Handing
Please be sure to select the correct hand when ordering. For instance you may notice the Right Hand and Left Hand Reverse drawings look similar. Indeed they appear to be similar. But there is a very important difference between them. The Right Hand drawing shows the push side of the door to be the locked (usually exterior) side of the door. But the Left Hand Reverse drawing shows the locked side of the door to be the pull side. This difference is significant when talking about door hardware as the application of that hardware is dependant upon the swing of a door.
Handing Chart

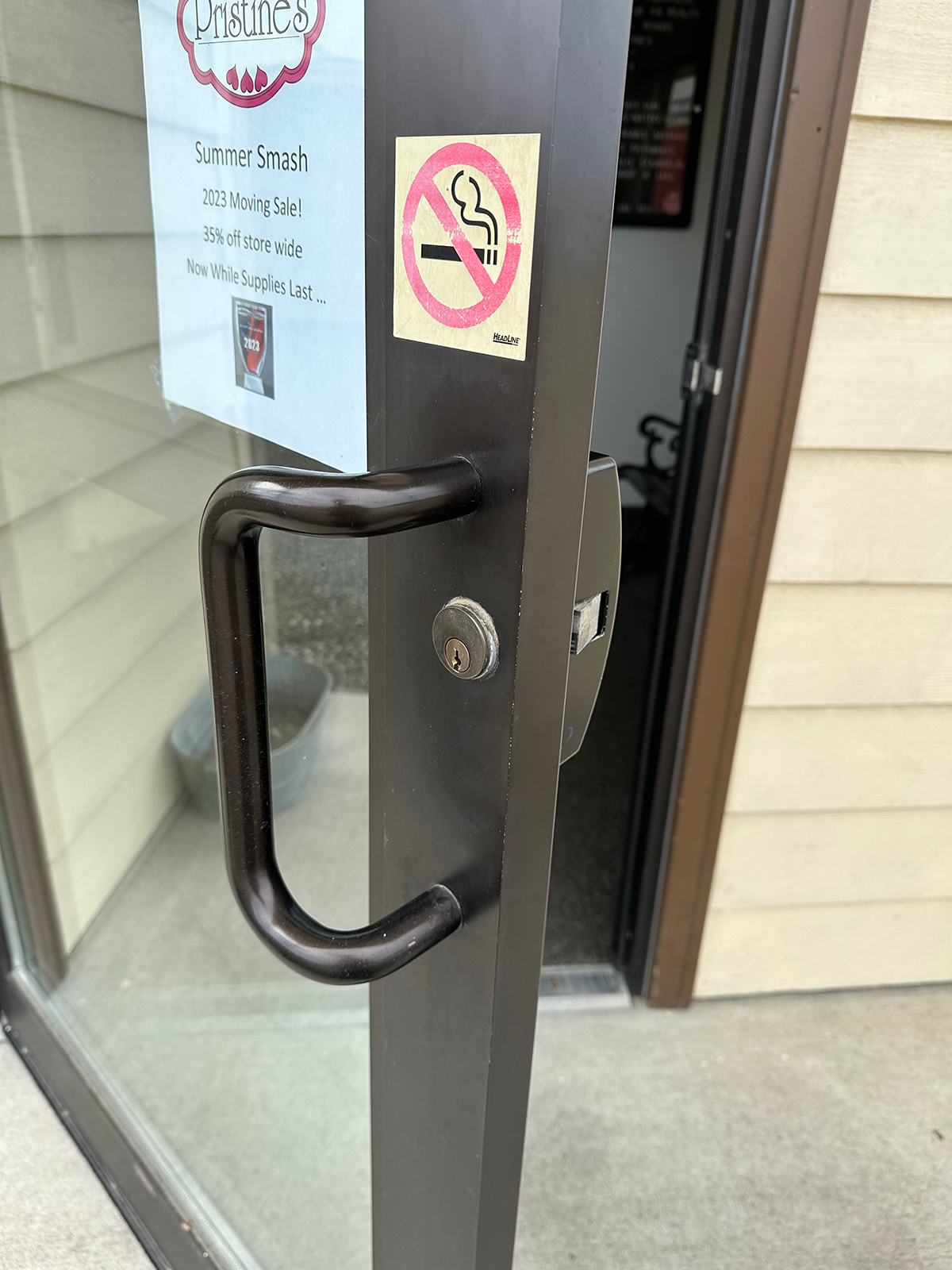

Customer Supplied Photo
Dor-O-Matic Rim Exit Device1790 EO
(Click to Enlarge)
Questions and Answers
Q: What parts are required to add a cylinder to the 1790 EO?
A: You will need a 1790NL/HB cylinder assembly, part number CYLASY.1151 as seen here:

Click Here

and a rim cylinder as seen here:

Click Here

Q: Are lever trims available for DOM devices?
A: The only Falcon Doromatic device with a lever trim option trim is the 1790 device and can be reviewed on the 4'th page of the manufacturers catalog as seen here:

Download File
