DOR-O-MATIC Door Closer SC81


DOR-O-MATIC SC81

DOR-O-MATIC Door Closer SC81


Manufacturer: Dor-O-Matic
Price: $139.25






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Standard - ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Dor-O-Matic
 This item ships from MA.

DOR-O-MATIC Door Closer SC81
  • Product Features
  • ANSI/BHMA A156.4, Grade 1
  • SC81 Closers are great for interior doors up to 48" wide and can be adjusted to meet the ADA accessibility requirements.
  • UL10C approved all weather fluid
  • Ten year warranty

Cut Sheet


Mounting Style


Installation Instructions


Full Catalog

Order Options Guide
Color Options
Aluminium 689 Finish
Dark Bronze 695 Finish
Arm Type

Regular Arm w/PA

  • Nonhold-open arm with adjustable forearm assembly to accommodate a range of door and frame reveal conditions

  • Includes PA bracket to allow installation in a parallel arm configuration

Hold Open Arm w/PA

  • Heavy-duty
  • Parallel arm includes a positive mechanical stop and nonadjustable forearm assembly for high volume traffic or potentially abusive
    installation condition
  • Also includes a manually selective hold-open function

Cylinder Type Options

Standard cylinder

  • Provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where function controls the final closing motion.
  • The opening swing is controlled by the hydraulic backcheck function from about 70° to maximum opening angle.

Delayed action cylinder

  • Special cylinder provides a separate delayed closing motion from maximum opening angle to approximately 70°
  • Main speed function controls the door motion until the door is a few inches from the latch where latch function controls the final closing motion
  • During the opening swing, the door is controlled by the hydraulicbackcheck function from about 70° to maximum opening angle.
Handing
Please be sure to select the correct hand of door when ordering a door closer. For instance you may notice the Right Hand and Left Hand Reverse drawings look similar. Indeed they appear to be similar. But there is a very important difference between them. The Right Hand drawing shows the push side of the door to be the locked (usually exterior) side of the door. But the Left Hand Reverse drawing shows the locked side of the door to be the pull side. This difference is significant when talking about door hardware as the application of that hardware is dependant upon the swing of a door. Door closers are especially relevant to the matter.
Handing Chart
Drop Plate
  • Top jamb mounting application is when the closer is mounted to the face of the head frame and the arm attaches to the top rail of the door.
  • The Push side mount is when the closer is mounted to the door and the arm attaches to the underside of the head jamb.

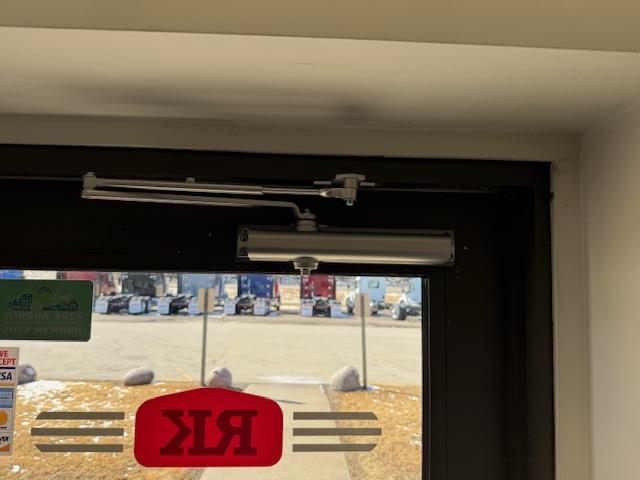

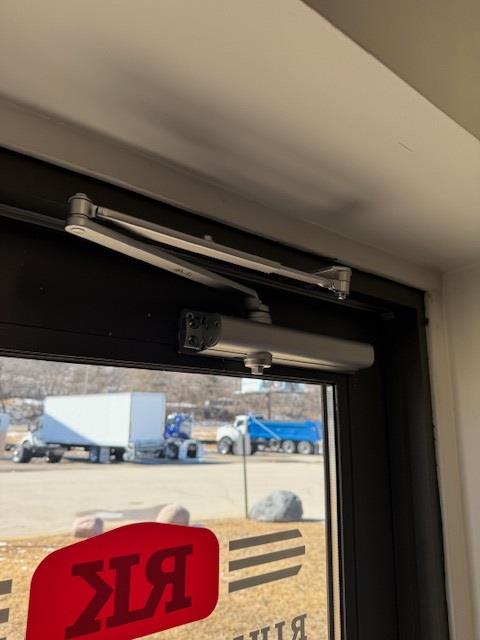

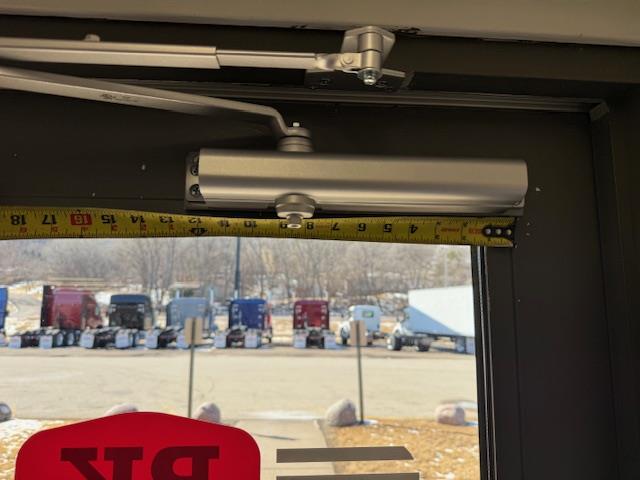

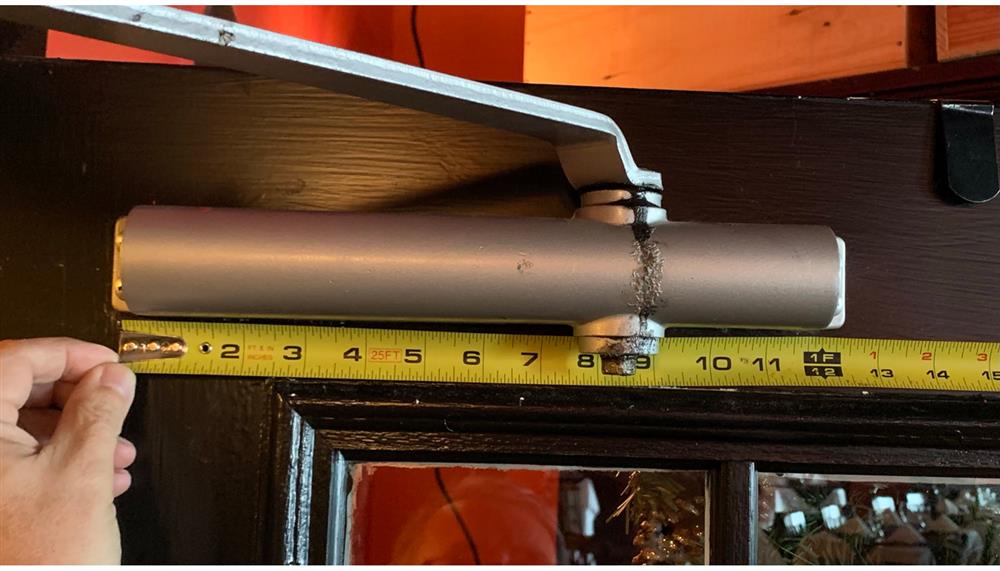

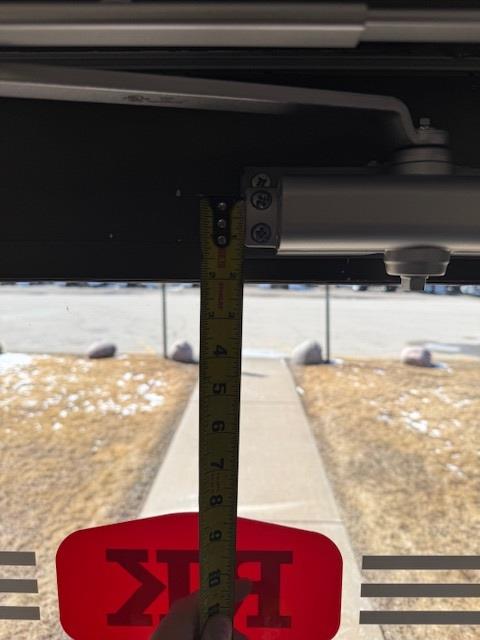

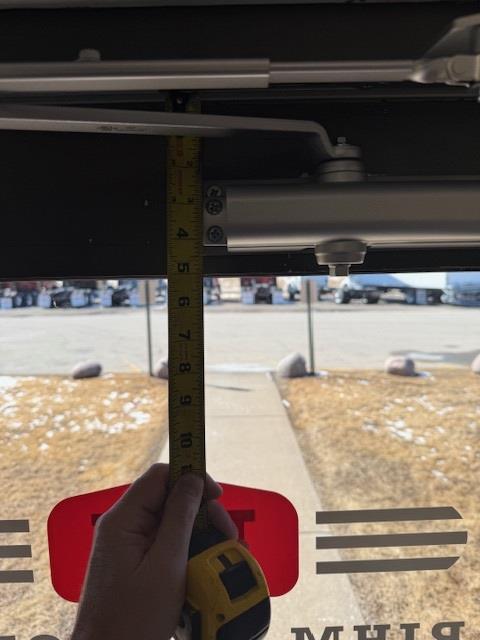

Customer Supplied Photos
DOR-O-MATIC Door Closer SC81
(Click to Enlarge)

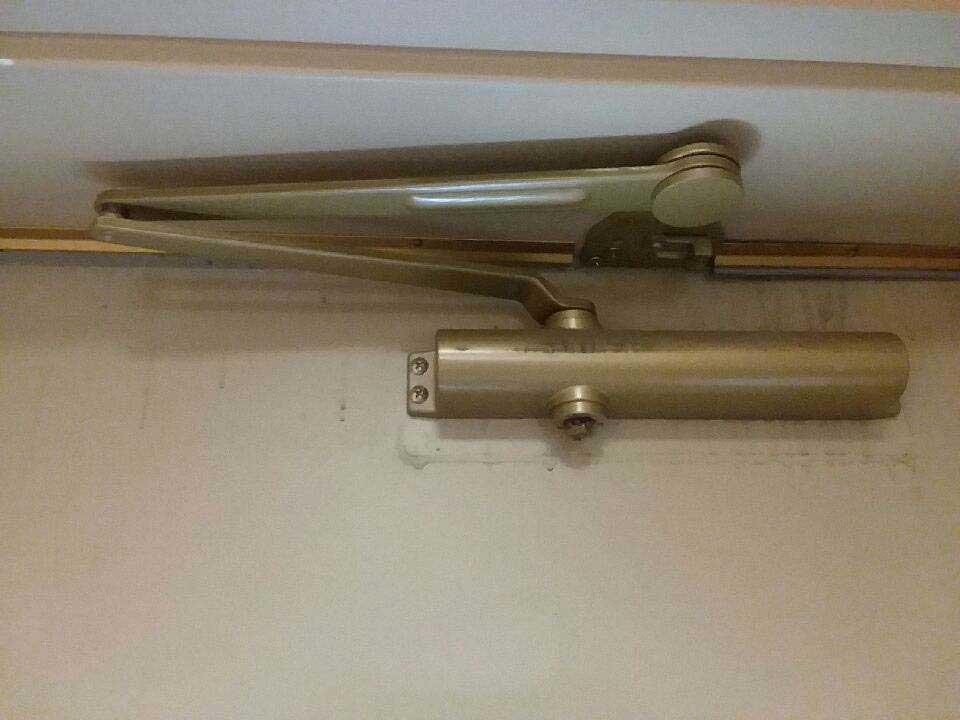

Image depicts the ‘DS’ arm type
DOR-O-MATIC Door Closer SC81
(Click to Enlarge)

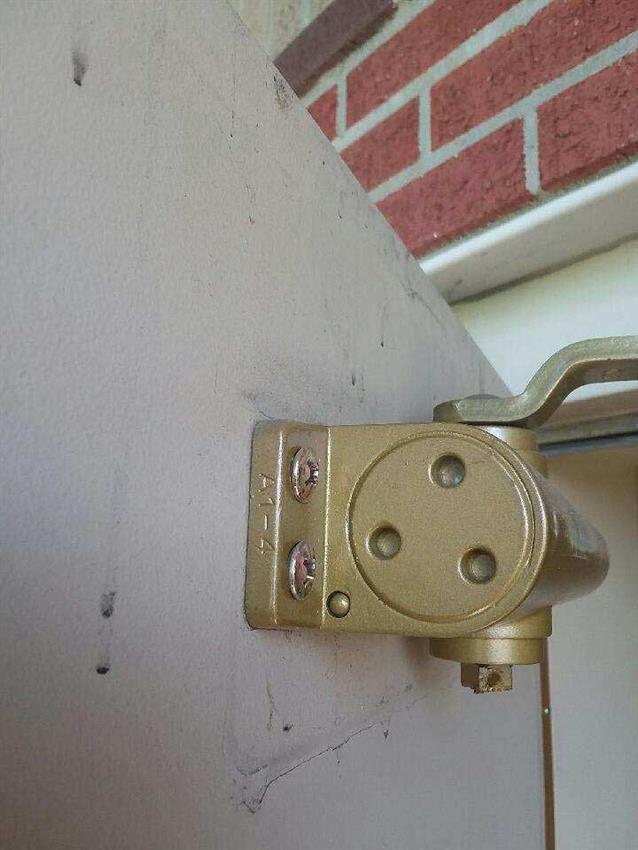

Customer Supplied Photo
DOR-O-MATIC Door Closer SC81
(Click to Enlarge)
  Architectural Builders Supply product suggestions:



DOR-O-MATIC Door Closer SC60

DOR-O-MATIC SC60 door closer perferct for sizes 2-5

Price: $112.67





DOR-O-MATIC Door Closer SC61

DOR-O-MATIC SC61 door closer adjustable for ADA requirements

Price: $102.09





DOR-O-MATIC Door Closer SC71

DOR-O-MATIC SC71 door closer adjustable for ADA requirements

Price: $230.01





DOR-O-MATIC Door Closer SC80

DOR-O-MATIC SC80 door closer medium duty w/ standard slim cover

Price: $184.08





DOR-O-MATIC Full Cover SC70-72

DOR-O-MATIC SC70-72 Full Cover also perfect for Dor-O-Matic Door Closer SC71

Price: $15.58





DOR-O-MATIC Full Cover SC80-72FC

DOR-O-MATIC SC80-72 Full Cover also perfect for Dor-O-Matic Door Closer SC80

Price: $11.71





DOR-O-MATIC Hold Open Arm w/PA Bracket SC60-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC60-3049/PA also perfect for Dor-O-Matic Door Closer SC60

Price: $70.18





DOR-O-MATIC Hold Open Arm w/PA Bracket SC70-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC70-3049/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $70.18





DOR-O-MATIC Hold Open Arm w/PA Bracket SC80-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC80-3049/PA also perfect for Dor-O-Matic Door Closer SC80

Price: $70.18





DOR-O-MATIC Mounting Plate-Push Side SC60-18PA

DOR-O-MATIC SC60-18PA Mounting Plate-Push Side also perfect for Dor-O-Matic SC60 Door Closer

Price: $31.87





DOR-O-MATIC Mounting Plate-Push Side SC80-18PA

DOR-O-MATIC SC80-18PA Mounting Plate-Push Side also perfect for Dor-O-Matic SC80 Door Closer

Price: $21.08





DOR-O-MATIC Mounting Plate-Top Jamb SC60-18

DOR-O-MATIC SC60-18 Mounting Plate-Top Jamb perfect for Dor-O-Matic SC60 door closer

Price: $14.49





DOR-O-MATIC Mounting Plate-Top Jamb SC80-18

DOR-O-MATIC SC80-18 Mounting Plate-Top Jamb also perfect for Dor-O-Matic SC80 Door Closer

Price: $21.08





DOR-O-MATIC Narrow Frame Back Plate SC70-18

DOR-O-MATIC SC70-18 Narrow Frame Back Plate also perfect for Dor-O-Matic Door Closer SC71

Price: $35.91





DOR-O-MATIC Narrow Top Rail Drop Plate SC70-18PA

DOR-O-MATIC SC70-18PA Narrow Top Rail Drop Plate also perfect for Dor-O-Matic SC71

Price: $35.91





DOR-O-MATIC Regular Arm w/PA Bracket SC60-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC60-3077/PA also perfect for Dor-O-Matic Door Closer SC60

Price: $52.26





DOR-O-MATIC Regular Arm w/PA Bracket SC70-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC70-3077/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $52.26





DOR-O-MATIC Regular Arm w/PA Bracket SC80-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC80-3077/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $52.26





DOR-O-MATIC Slim Cover SC60-72

DOR-O-MATIC SC60-72 Slim Cover also perfect for Dor-O-Matic Door Closer SC60

Price: $13.72


Questions and Answers
Q: What would cause a door closer to slam?
A: There are a few things that can cause a closer to slam.

  • The closer could be adjusted incorrectly. Turn all regulating screws clockwise until they stop. Then open each valve 1 and 1/2 turns. If the closer now seems to work, it can be adjusted to your closing preferences.

  • The closer may have lost some oil. If there is evidence that the closer has lost oil, nothing can be done to get it to work correctly. It will need to be replaced, or sent back to the factory for rebuild. Contact Sales Support for warranty/repair information.

  • There is internal damage or component failure. The closer will need to be replaced / repaired. Contact Sales Support for warranty/repair information.

Q: What is the difference between an SC80 and an SC81?
A: As of Sept 2010 SC81 models are adjustable 1-6, the SC80 model was discontinued.
Q: Can you tell me what hand this closer is:

View Image

Can it be used on the inside of an exterior door that swings out?

A: The part number that is in your image is a non handed door closer and can indeed be used on the interior side of an exterior door that swings out which is the ‘DS’ portion of the part number.

See page 20 of the manufacturers catalog as seen here:

Download File

Q: Thank you for your reply. I’m using these interior on doors that swing out in opposite directions. Will they work on either one, or just the one that is hinged on the right?
A: Your Dor-o-matic SC81 series door closer will work on either left hand reverse or right hand reverse doors. The door closer body and the ‘DS’ arm that you have are non handed and universal can terms of the handing.
Q: What is the difference between an SC80 and an SC81?
A: As of Sept 2010 SC81 models are adjustable 1-6, the SC80 model was discontinued.
Q: How do you identify the model of a Falcon closer?
A: To determine the SC series, measure center to center on the closer body bolt hole mounting pattern and an overall description of the closer and arm.

  • SC60 -- 9-1/16" x 3/4" -- tube style arm
  • SC70 -- 6-3/4" x 2-3/8" -- has label on spring tube
  • SC80 -- 12" x 3/4" -- tube style arm
  • SC91 -- 6-3/8" x 3/4" -- unique arm
  • SC93 -- 9-1/16" x 3/4" -- threaded arm
  • SC94 -- 9-1/16" x 3/4" -- threaded arm

    615R is the UL label, does not designated product model.
