DOR-O-MATIC Door Closer SC61


DOR-O-MATIC SC61

DOR-O-MATIC Door Closer SC61


Manufacturer: Dor-O-Matic
Price: $102.09






  Order Options:


Comments (Optional)


  Qty:

  Add To Cart

Availability Information
Quick Ship Item
Immediate - In stock ready for shipment:
6 - Aluminum 689 Finish_______________,Regular Arm w/PA,Standard Cylinder_________________..,Right Hand Reverse,A. Drop Plate Not Required (standard),No Cover Required_________________
Standard - ships in 1 business day.
Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

Similar Product Video
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
Email Friend
More from Dor-O-Matic
This item ships from MA.

dor-o-matic-logo
DOR-O-MATIC Door Closer SC61
DOR-O-MATIC Door Closer SC61
  • Product Features
  • ANSI/BHMA A156.4, Grade 1
  • SC61 closers are great for for interior doors from 30" to 54" wide and exterior doors up to 42" wide.
  • UL10C approved all weather fluid
  • Ten year warranty
  • R1943
Order Options Guide
Color Options
Aluminium 689 Finish
Dark Bronze 695 Finish
Arm Type

Regular Arm w/PA

  • Nonhold-open arm with adjustable forearm assembly to accommodate a range of door and frame reveal conditions

  • Includes PA bracket to allow installation in a parallel arm configuration

Hold Open Arm w/PA

  • Heavy-duty
  • Parallel arm includes a positive mechanical stop and nonadjustable forearm assembly for high volume traffic or potentially abusive
    installation condition
  • Also includes a manually selective hold-open function
Cylinder Type Options

Standard cylinder

  • Provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where function controls the final closing motion.
  • The opening swing is controlled by the hydraulic backcheck function from about 70° to maximum opening angle.

Delayed action cylinder

  • Special cylinder provides a separate delayed closing motion from maximum opening angle to approximately 70°
  • Main speed function controls the door motion until the door is a few inches from the latch where latch function controls the final closing motion
  • During the opening swing, the door is controlled by the hydraulicbackcheck function from about 70° to maximum opening angle.
Handing
Please be sure to select the correct hand of door when ordering a door closer. For instance you may notice the Right Hand and Left Hand Reverse drawings look similar. Indeed they appear to be similar. But there is a very important difference between them. The Right Hand drawing shows the push side of the door to be the locked (usually exterior) side of the door. But the Left Hand Reverse drawing shows the locked side of the door to be the pull side. This difference is significant when talking about door hardware as the application of that hardware is dependant upon the swing of a door. Door closers are especially relevant to the matter.
Handing Chart
Drop Plate
  • Top jamb mounting application is when the closer is mounted to the face of the head frame and the arm attaches to the top rail of the door.
  • The Push side mount is when the closer is mounted to the door and the arm attaches to the underside of the head jamb.
Select Cover
Without Cover
With Cover

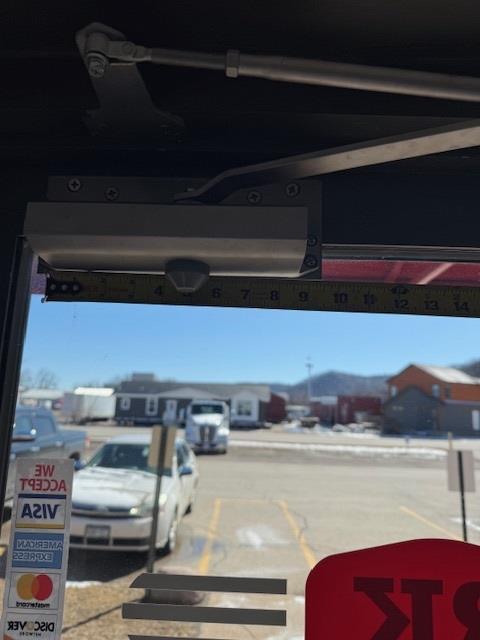

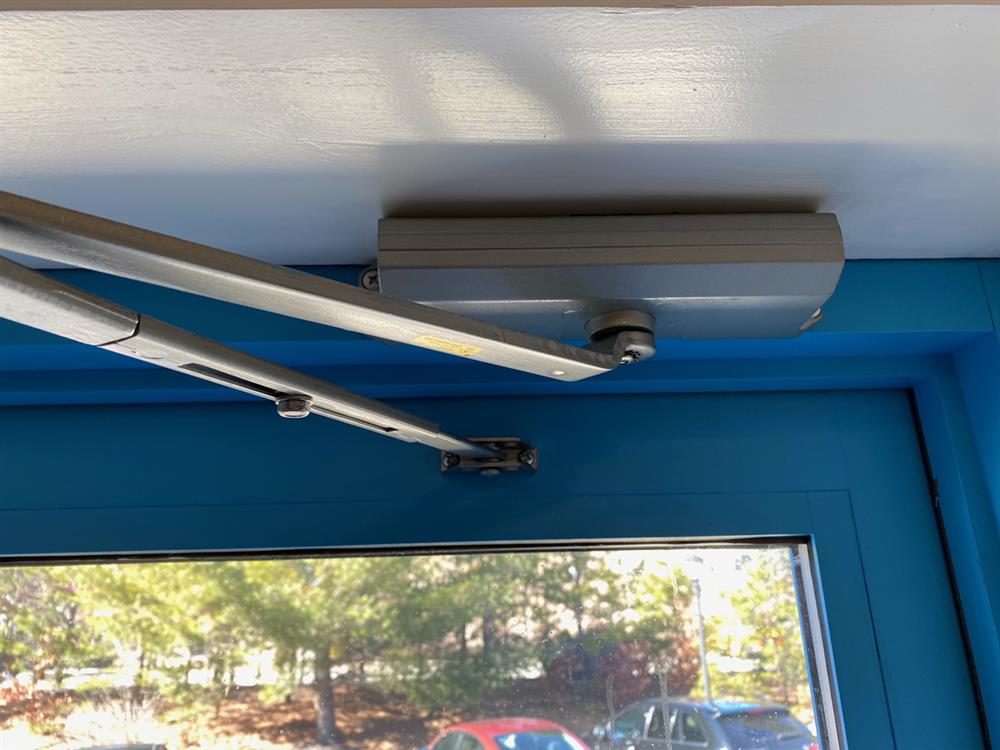

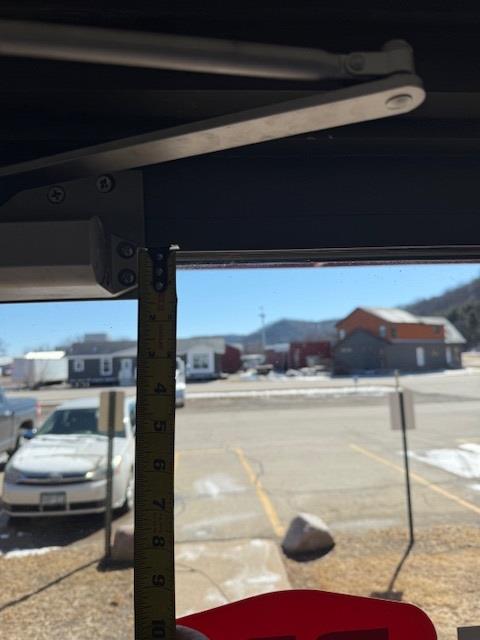

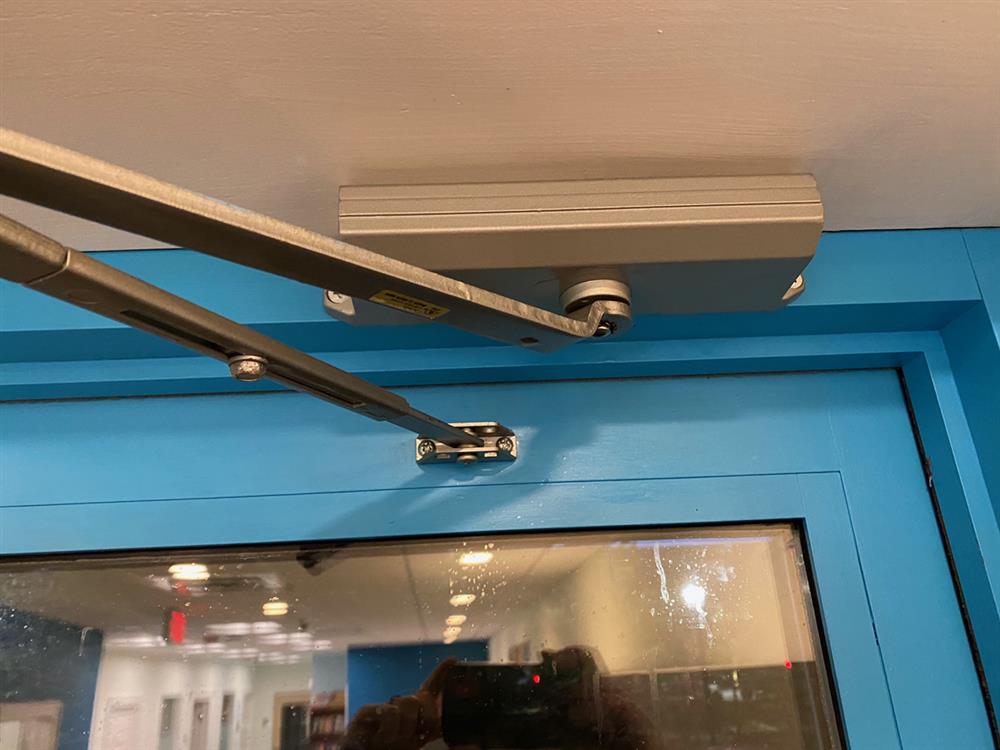

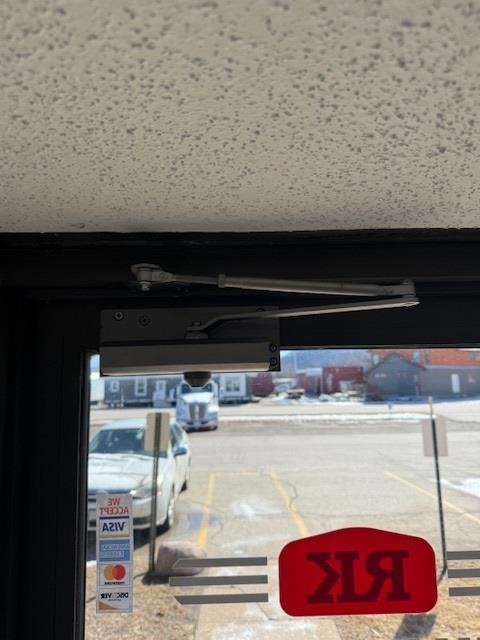

Customer Supplied Photos
DOR-O-MATIC Door Closer SC61
(Click to Enlarge)
  Architectural Builders Supply product suggestions:



DOR-O-MATIC Door Closer SC60

DOR-O-MATIC SC60 door closer perferct for sizes 2-5

Price: $95.64





DOR-O-MATIC Door Closer SC71

DOR-O-MATIC SC71 door closer adjustable for ADA requirements

Price: $230.01





DOR-O-MATIC Door Closer SC80

DOR-O-MATIC SC80 door closer medium duty w/ standard slim cover

Price: $184.08





DOR-O-MATIC Door Closer SC81

DOR-O-MATIC SC81 door closer medium duty w/ standard slim cover meets ADA requirements

Price: $139.25





DOR-O-MATIC Full Cover SC70-72

DOR-O-MATIC SC70-72 Full Cover also perfect for Dor-O-Matic Door Closer SC71

Price: $15.58





DOR-O-MATIC Full Cover SC80-72FC

DOR-O-MATIC SC80-72 Full Cover also perfect for Dor-O-Matic Door Closer SC80

Price: $11.71





DOR-O-MATIC Hold Open Arm w/PA Bracket SC60-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC60-3049/PA also perfect for Dor-O-Matic Door Closer SC60

Price: $70.18





DOR-O-MATIC Hold Open Arm w/PA Bracket SC70-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC70-3049/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $70.18





DOR-O-MATIC Hold Open Arm w/PA Bracket SC80-3049/PA

DOR-O-MATIC Hold Open Arm w/PA Bracket SC80-3049/PA also perfect for Dor-O-Matic Door Closer SC80

Price: $70.18





DOR-O-MATIC Mounting Plate-Push Side SC60-18PA

DOR-O-MATIC SC60-18PA Mounting Plate-Push Side also perfect for Dor-O-Matic SC60 Door Closer

Price: $31.87





DOR-O-MATIC Mounting Plate-Push Side SC80-18PA

DOR-O-MATIC SC80-18PA Mounting Plate-Push Side also perfect for Dor-O-Matic SC80 Door Closer

Price: $21.08





DOR-O-MATIC Mounting Plate-Top Jamb SC60-18

DOR-O-MATIC SC60-18 Mounting Plate-Top Jamb perfect for Dor-O-Matic SC60 door closer

Price: $14.49





DOR-O-MATIC Mounting Plate-Top Jamb SC80-18

DOR-O-MATIC SC80-18 Mounting Plate-Top Jamb also perfect for Dor-O-Matic SC80 Door Closer

Price: $21.08





DOR-O-MATIC Narrow Frame Back Plate SC70-18

DOR-O-MATIC SC70-18 Narrow Frame Back Plate also perfect for Dor-O-Matic Door Closer SC71

Price: $35.91





DOR-O-MATIC Narrow Top Rail Drop Plate SC70-18PA

DOR-O-MATIC SC70-18PA Narrow Top Rail Drop Plate also perfect for Dor-O-Matic SC71

Price: $35.91





DOR-O-MATIC Regular Arm w/PA Bracket SC60-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC60-3077/PA also perfect for Dor-O-Matic Door Closer SC60

Price: $52.26





DOR-O-MATIC Regular Arm w/PA Bracket SC70-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC70-3077/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $52.26





DOR-O-MATIC Regular Arm w/PA Bracket SC80-3077/PA

DOR-O-MATIC Regular Arm w/PA Bracket SC80-3077/PA also perfect for Dor-O-Matic Door Closer SC71

Price: $52.26





DOR-O-MATIC Slim Cover SC60-72

DOR-O-MATIC SC60-72 Slim Cover also perfect for Dor-O-Matic Door Closer SC60

Price: $13.72


Questions and Answers
Q: [email protected] My SC60 is having trouble staying in the hold open position. What do I adjust?
A: Email a photo of the arm here:

Click Here

Q: model sc61 arm hits top of door seems to have too much up and down play in closure arm
A: I can suggest to replace the arm, but I usually only see this in a new installation where the closer has not been installed per the templating.

Please let us know if there is anything else we can help with.

Q: for an SC60 or 61, what is the recommended closing time from the 90 degree open position? also, what is the recommended closing time for a door that does not have to comply with ADA, an door installed before ADA existed?
A: Is this a door installed in a public setting?
Q: no, the exterior door of an apartment dwelling with a 3 inch high step ( a wheel chair would not access it).
A: Since this is a private setting I suppose you are well within your arena to set the closer speed so that it suits your practical requirements.

Having said that I would like to add that the Department of Justice published American with Disability Act guidelines state:

Door closers and gate closers shall be adjusted so that from an open position of 90 degrees, the time required to move the door to a position of 12 degrees from the latch is 5 seconds minimum.

as seen in the link to the code as published here:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise (something Amazon can not provide) as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful -

please consider following us on Twitter

Click Here

or liking our page on Facebook

Click Here

Thank you for your consideration.

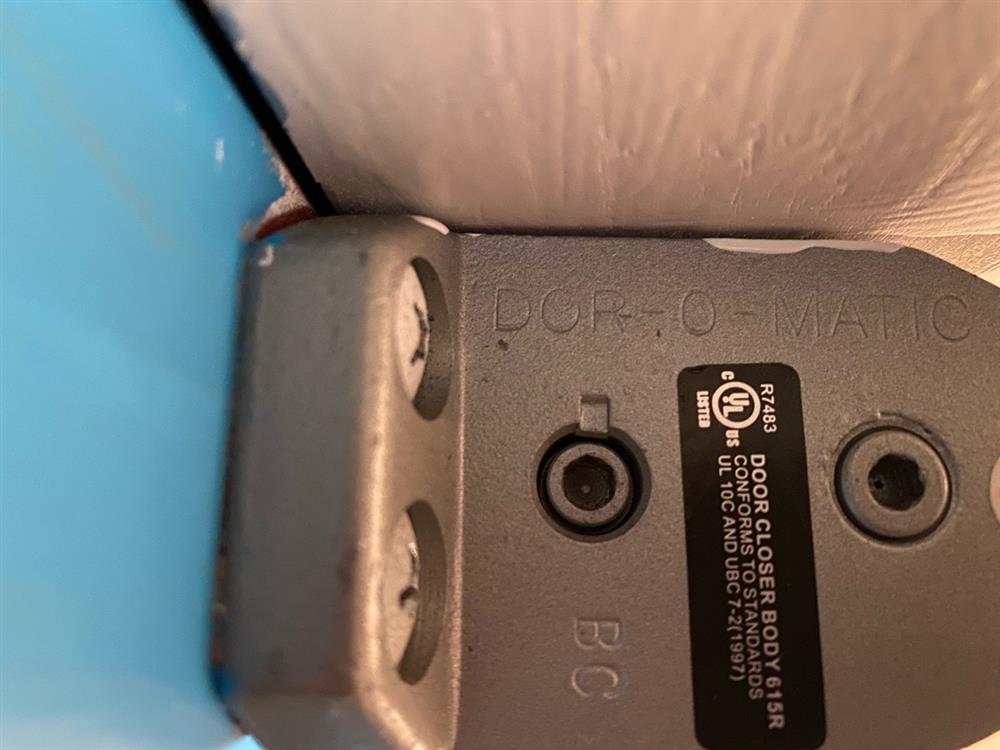

Q: I need to replace r7483 (615r) but I cannot find a supplier. I woud like a unit with exact hole alignment.
A: We can supply you with either the entire door closer or just a replacement arm.

Please contact our sales department for assistance and placing this order

Q: On a sc60 I have the arm off and when I push the keypad code, the pad lights up but system does not cycle. Any help would be appreciated.
A: Please let me know what are all the parts on this opening.
Q: Which Falcon closer has the mounting hole pattern of 12" x 3/4"?
A: The Falcon SC81 series closer has a mounting hole pattern of 12" x 3/4" as seen here:

Click Here
