Falcon D800 |
D800 Series Grade 2 Standard-Duty Deadlocks
|
| |
| Manufacturer: Falcon |
| Price: $77.01
|
| |
|
| |
|
| |
| |
| |
|
|
|
This product review video is for a similar product but it will differ in size, color and/or other attribute. We still feel the video will be of value to you.
|
|
 |
|
 |
|
| |
Falcon Lock Philosophy |
|
| Falcon takes a proactive approach to addressing commercial
facility needs. |
| Whether the application is government, military, retail,
industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2
locksets with functions and key systems to fit your budget requirements. |
| With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs. |
| As part of the world-renowned IR Security & Safety Sector, Falcon
benefits from the power of IR’s industry leadership, global distribution
and multiple product lines that deliver integrated security solutions. |
| Falcon is represented and supported by the Security & Safety
Consultant organization across the US and Canada. |
| Their capabilities
include facility surveys, specification writing, value engineering, key
system design. In conjunction with IR security Centers complete after
the sale service and support is available |
| Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411. |
How to Order |
| For correct ordering, and to ensure no delays in shipment of
your order, the following descriptive data must be listed in the
sequence shown. Necessary information can be found in other
parts of this catalog. The example below shows an order for
20 each D locksets in the 441 Entry function, in a 626 (satin
chrome) finish, to accommodate doors 1-3/4" thick with
AA1-AA20 keying. |
 |
Quantity: |
Indicate the quantity required. |
|
Catalog Number: |
Select catalog number. |
|
Finish |
When the finish is the same for the outside and inside
trim, it is shown once (626). For split finishes, the outside is
designated first, then the inside (626 x 625). |
|
Latch: |
2-3/4" backset standard. 2-3/8" backset available. |
|
Strike: |
2-3/4" x 1-1/8" lipless standard. Optional ANSI, T-strike,
full lip strikes or security strike available. |
|
Cylinder Type: |
For 6-pin, add 6-pin. For 7-pin, add 7-pin. |
|
Door hand |
Not required. All other locks are fully reversible. |
|
Keying Detail: |
We suggest using the standard terms developed
by the A.H.C. (Architectural Hardware Consultants).
EXAMPLE: AA1 - Grand Master keyed, Master keyed, change key 1. |
|
Interchangeable Core: |
To order product capable of accepting
an interchangeable core, add “FIC” (for interchangeable core).
To order product with an interchangeable core, add “WIC”
(with interchangeable core). |
|
Keyway: “G” |
is standard on regular cylinders, “A” is standard
on interchangeable cores. Other keyways available. Please
consult factory. |
|
Additional Keys: |
Note the total number of keys required. |
|
Large Bow Keys: |
Add– “with large bow keys.” |
|
| |
| Cylinder Deadlock (Schoolhouse Safety)D811 |
Cylinder Deadlock D821 |
| Locked or unlocked by key from outside. Unlocked by turn
on the inside. Cannot be locked from the inside. Dead bolt
automatically deadlocks when fully extended.
ANSI/BHMA E2172 and E0172 |
Locked or unlocked by key outside. Blank plate inside. Dead
bolt automatically deadlocks when fully extended.
ANSI/BHMA E2162 and E0162 |
|
|
|
|
|
|
| Double Cylinder Deadlock D831 |
Cylinder Deadlock With Turn D841 |
Locked or unlocked by key from either side. Dead bolt
automatically deadlocks when fully extended. The attaching
bolts are from inside only.
ANSI/BHMA E2142 and E0142 |
Locked or unlocked by key from outside and by turn on inside.
Dead bolt automatically deadlocks when fully extended.
ANSI/BHMA E2152 and E0152 |
|
|
|
|
|
|
| Finishes |
| The latest in modern techniques and equipment are used to
apply the highest quality finish. Extra steps assure durable,
consistent finishes and long useful life.
Although we apply the finest available protective plating and/or
enamel coating to the surface of our products, these finishes
have limitations and in time may deteriorate either from
exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of
these finishes is, therefore, not a defect, but a normal process
which is unavoidable. Our company cannot accept responsibility
for finish deterioration in these circumstances; therefore, the
finishes cannot be guaranteed. These products will not be
refinished or replaced under our warranty should deterioration
of finishes occur. |
| Description |
ANSI No. |
Available on |
Bright Brass |
605 |
avaiable on special order |
Satin Brass |
606 |
avaiable on special order |
Satin Bronze |
612 |
avaiable on special order |
Satin Bronze Oil Rubbed |
613 |
avaiable on special order |
| Bright Chrome |
625 |
avaiable on special order |
Satin Chrome |
626 |
All trim |
Satin Stainless Steel |
630 |
Avaiable only in Interchangeable Cores |
Falcon M Series Non Keyed Lever
|
| Full D800-Series Falcon catalog |
|
|

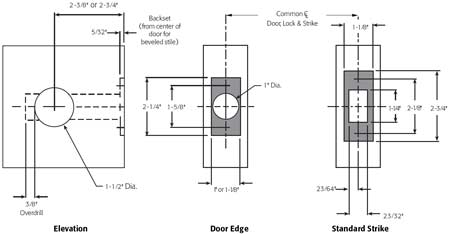

| Door thickness: |
1-5/8" to 1-7/8". Specify for thinner doors
and appropriate spacer rings will be included. For thicker doors
consult factory. |
| Backset: |
2-3/4" standard. 2-3/8" also available. |
| Attachment: |
Locks are solidly attached to the door by 1/4"
heat-treated steel bolts. These bolts pass through a steel plate
(D811, D821 and D841) or the inner cylinder housing
(D831) and thread directly into the back of the outer cylinder
housing. The D831 is provided with (2) regular 1/4" bolts and
a tamper proof, one-way bolt as standard. |
| Handing: |
Non-handed. May be used in right hand or left hand
doors swinging in or out. |
| Cylinders: |
Furnished with solid brass plug and housing, drilled
with 6-pin chambers, pinned in 5 unless otherwise specified.
Available with 6 or 7-pin interchangeable cores. Furnished with
two (2) nickel silver keys standard. |
| Keyways: |
“G” keyway standard on standard cylinders. “A”
keyway standard on I/C core cylinders. Also available with
some optional keyways. |
| Trim: |
The outer trim (on D831 both trims) is pressure cast
material with a crimped on cover to allow for a variety of finishes.
(The inner and outer trims are 2-1/2" in diameter.) |
| Latches: |
Deadlocks are furnished with latches which have a
full 1" projection dead bolt. Housed within the dead bolt is a
free-turning, 1/4" thick, hardened steel, saw resistant roller.
Furnished standard with 2-3/4" backset. 2-3/4" backset has a
1-1/8" x 2-1/4" faceplate. Optional 2-3/8" backset has a 1" x 2-1/4"
faceplate. |
| Strikes: |
2-3/4" x 1-1/8" lipless standard. ANSI 4-7/8" x 1-1/4"
lipless, 2-1/4" full lip strikes, a 2-3/4" x 1-1/8" T-strike or a security
strike are available. |
| Screws: |
Furnished with wood/machine screws for use on
wood or metal doors or frames. |
|
|
| Falcon Mortise Lock Specifications |
|
For over 40 years Falcon Lock has been manufacturing reliable lock
hardware |
 |
|
Our reputation and commitment to providing a high quality
product at a reasonable price with timely delivery has been rewriting
the standard in our industry. |
|
Falcon has one of the most extensive
lines available on the market today - with a choice of functions and
applications to meet and outreach the most demanding requirements.. |
|
Falcon locks feature the convenience and flexibility of an interchangeable
core. |
|
Whenever a key is lost or stolen, locks can be re-keyed quickly
by removing the core and installing a new one, avoiding locksmith
services. |
|
Our interchangeable cores are also compatible with other
small format interchangeable core products. |
|
We continue to keep a pulse on our market by working closely with
various agencies and organizations, such as ANSI/BHMA, who are
responsible for the writing of specifications and standards. |
|
This allows
us to improve and meet the needs of a changing market with reliable
and flexible locks, delivered on time, exactly when you need them. |
| Dead Bolt |
Indicator Dead Bolt |
For inside locking of exterior doors. Not visible from the outside.
Dead bolt automatically deadlocks when fully extended.
ANSI/BHMA E2191, E0191, E2192 or E0192 |
A dead bolt lock used in conjunction with a regular hotel or
motel guest room lock. When locked from inside the room a
dead bolt locks the door, and, in addition, a visual OCCUPIED*
sign appears in the face of the lock on the outside of the door.
The indicator dead bolt lock provides privacy for the guest. The
dead bolt can only be operated by the guest when he is in the
room and must be withdrawn by the guest when leaving the room.
*When bolt is retracted, message reads VACANT.
Emergency key and instruction tag supplied when requested. |
|
|
| Dead Bolt |
2" Handicap Lever |
| For inside locking of exterior doors. Turn inside, blank plate
outside. Dead bolt automatically deadlocks when fully extended. ANSI/BHMA E2192 or E0192 |
NOTE: D411, D441, D811, D841, D861, D861M and D871 are
available with special 2" handicap lever inside.  |
|
|
D411K
D441K
D811K
D841K
D861K
D861MK or
D871K |
D SERIES DESCRIPTION |
|
1" Faceplate |
|
|
1" Faceplate w/ 1/4" Radius |
|
|
1-1/8" Faceplate |
|
|
Circular Flat Faceplate |
|
|
| |
|
|
Dummy Trim |
Single & Double |
|
|
| Special Small Faceplate Latches |
|
|
1" Faceplate |
|
|
1" Faceplate w/ 1/4" Radius |
|
|
| Strikes |
| Furnished with a 4-7/8" ANSI strike unless specified otherwise. |
|
|
|
|
030020-000 |
010018-001 |
010019-000 (avaiable on special order ) |
030290-000 (avaiable on special order ) |
ANSI Strike |
Lipless Strike |
Lipless Strike |
T-Strike or Security |
|
|
|
005075-000 (avaiable on special order ) |
005051-000 (avaiable on special order ) |
005051-001 (avaiable on special order ) |
T-Strike,
Square Corner |
Full Lip,
Square Corner |
Full Lip,
1/4 Radius Corner |
| Latches—1" Projection, Standard |
| Latches for D Series locks are non-UL listed.
Available in 2-3/8" or 2-3/4" backsets.
Unless otherwise specified, we furnish a
2-1/4" x 1" x square corner faceplate on
2-3/8" backset latches and 2-1/4" x1-1/8"
x square corner on 2-3/4" backset latches. |
|
|
|
Square Corner |
Radius Corner(avaiable on special order) |
Drive-In (avaiable on special order ) |
| Latches– for D400 (except D431) and D800 (except D831) series and upper trim for H series |
| Catalog Number |
Description |
Faceplate Size |
Corner |
| A74420-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1" |
Square |
| A74421-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1" |
Radius |
| A74425-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1-1/8" |
Square |
| A76429-000 |
2-3/8" Backset Dead Bolt |
Drive-In |
Round |
| A74430-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1" |
Square |
| A74431-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1" |
Radius |
| A74435-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1-1/8" |
Square |
| A76439-000 |
2-3/4" Backset Dead Bolt |
Drive-In |
Round |
| K74420-00U |
UL Deadbolt Latch Kit 2-3/8" Backset |
2-1/4" x1" |
Square |
| K74435-00U |
UL Deadbolt Latch Kit 2-3/4" Backset |
2-1/4" x 1-1/8" |
Square |
| Latches– for D431 and D831 functions only |
| Catalog Number |
Description |
Faceplate Size |
Corner |
| A84420-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1" |
Square |
| A84421-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1" |
Radius |
| A84425-000 |
2-3/8" Backset Dead Bolt |
2-1/4" x 1-1/8" |
Square |
| A86429-000 |
2-3/8" Backset Dead Bolt |
Drive-In |
Round |
| A84430-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1" |
Square |
| A84431-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1" |
Radius |
| A84435-000 |
2-3/4" Backset Dead Bolt |
2-1/4" x 1-1/8" |
Square |
| A86439-000 |
2-3/4" Backset Dead Bolt |
Drive-In |
Round |
| K84420-00U |
UL Deadbolt Latch Kit 2-3/8" Backset |
2-1/4" x1" |
Square |
| K84435-00U |
UL Deadbolt Latch Kit 2-3/4" Backset |
2-1/4" x 1-1/8" |
Square |
|
Questions and Answers
Q: I am looking for an emergency key for a D871 Falcon lock and was wondering if I could buy one from you guys. I couldnt find it on the website, but I was hoping it was available. Thank you, A: Here is the tool you are looking for: Click Here Please reach out to us if there is anything else we can assist with. Q: What backsets are available on Schlage and Falcon locks? A: SCHLAGE locks are available with the following backsets in the chart as seen here:
Download File
FALCON locks are available with the following backsets in the chart as seen here:
Download File Q: Does the D871 occupancy lock take a 2 1/8" hole? A: It did but has been replaced by the D271 as seen here: Click Here Q: What replaced the D400 series or the D800 series? A: Falcon replaced its deadbolt offering in 2008 with the D100 and D200 series. The D800 Grade 2 deadbolt was replaced by the D200 and the D400 Grade 1 deadbolt was replaced by the D100. The new bolts utilize an adjustable backset (2-3/8" and 2-3/4") and the function numbers carry over with the exception of the first digit.
Example: D811 = D211, D421 = D121
(Required, used to email you once question is answered.)
Customer Reviews
There are no customer reviews yet.
|
|
|
