Dorma DB600

copy to clipboard

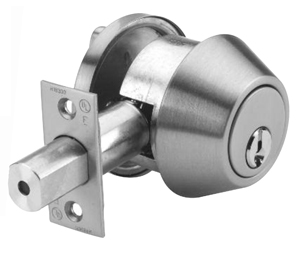

DB600 Series Dead Bolts

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
DB600 Series Dead Bolts
More from Dorma
Price: $64.65 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
DORMA’s DB600 Series Grade 2 dead bolts provide increased security, reliability, and durability.

dorma DORMA offers a choice of rugged dead bolts to provide an added level of protection.

dorma The DB600 Series are Grade 2 dead bolts with an adjustable 2-3/8"–2-3/4" backset.

dorma The 1" throw dead bolt includes a hardened steel roller to prevent sawing through the bolt.

dorma The heavy duty cylinders are throughbolted, with reinforced cylinder rings to protect against physical attack.

dorma Brass 6-pin cylinders are provided for security and durability.

dorma The solid steel strike plate reinforcement with 2" screws protects the door jamb against a kick-in attack.

DB600 Series

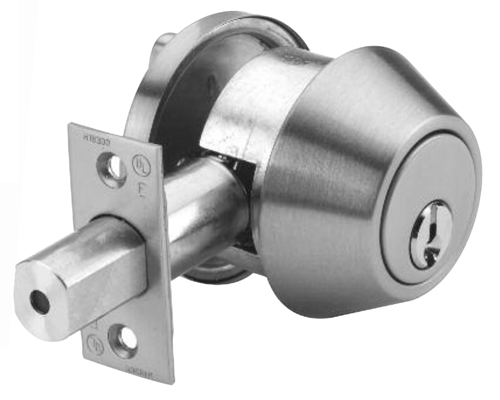

Techical picture
cut sheet
Brochure

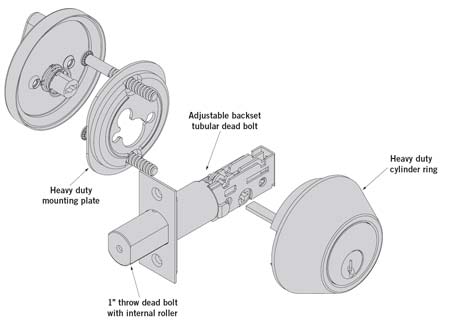

Drawing
Instructions
Recommended Applications
arrow Apartments
arrow Municipal Buildings
arrow Retail Complexes
arrow Warehouses
Technical Details:
• DB600 Grade 2 Tubular Auxiliary Dead Bolt.
• Dead bolt front manufactured from stainless steel, brass, or bronze, depending on the selected finish.
• Available in Small Format Interchangeable Core (SFIC), Schlage C and E, Sargent LA, and Corbin Russwin L4 (consult factory for additional keyways).
• Stainless steel, brass, or bronze strikes.
• Adjustable 2-3/8"–2-3/4" backset, 1" throw dead bolt with hardened steel roller.
• Solid steel reinforced strike plate with 2" screws.
CL8000
Certification
Dorma The DORMA DB600 is certified to the requirements of ANSI A156.5 2001 Grade 2.
Dorma The DORMA DB600 is U.L./C.U.L. listed as 3-hour fire rated auxiliary lock.
Cylinders and Keying:
Dorma Unless otherwise specified, cylinders will be provided in DORMA standard keyway with two (2) nickel silver keys.
Dorma Optional patented key system available.
Dorma Refer to DORMA Price List for full details and options such as master keying, retrofit cylinders and keyways, and small format nterchangeable cores.
Finishes:
hammer Brass: 605 (Bright), 606 (Satin), or 609 (Antique).
hammer Bronze: 613 (Dark Oxidized Oil Rubbed Satin).
hammer Stainless Steel: 629 (Bright) or 630 (Satin).
Warranty:
One (1) year limited warranty.
FUNCTION SERIES OUTSIDE/INSIDE DESCRIPTION
Cylinder x Turn DB660
dummy trim
• Dead bolt operated by key outside or by turn inside.
Cylinder x Blank DB861
passage
• Dead bolt operated by key either side.

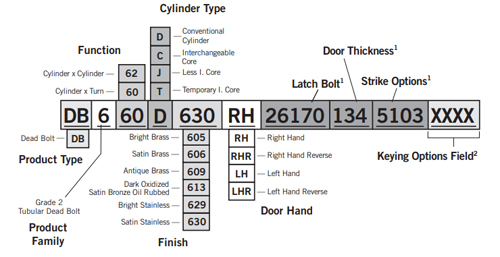

How to Order DB600/DB660 Series
Arhitectural Builders Supply sells the entire Dorma Lock Line . If you would like to order non-stock products please refer the chart below
• DB600 Series Dead Bolt
• DB660 Series Grade 2
• Cylinder x Turn Function
• Satin Chrome Finish
• Right Hand
• 2-3/8"–2-3/4" Adjustable Backset Latch Bolt with 1" Throw
• 1-3/4" Thick Door
• 1-1/8" x 2-3/4" Strike
order
1" Throw Latch Bolt Strike ANSI Strike Full Lip Strike
deadbolt
deadbolt
deadbolt
deadbolt
26170 — 1-1/8" x 2-1/4" front, 1" diameter, 1" throw
dead bolt with 2-3/8"–2-3/4"
adjustable backset. Square
corner. Standard for DB600
Series Dead Bolts
5103 — 1-1/8" x 2-3/4"
strike. No lip. Standard for
DB600 Series Dead Bolts.
5004 — 1-1/4" x 4-7/8" ANSI strike with dead bolt cutout. No lip. Optional for DB600 Series Dead Bolts. 5203 — 1-5/8" x 2-1/4" full lip strike with dead bolt cutout. 1-1/8" lip length. Optional for DB600 Series Dead Bolts.
26173 — 1" diameter, 1" throw
dead bolt with 2-3/8"–2-3/4"
adjustable backset. Drive in.
Optional for DB600 Series
Dead Bolts
