Falcon D400

Name: D400 Series Grade 1 Heavy-Duty Deadlocks
Brand: Falcon
SKU: Falcon D400
Price: 156.89 USD

D400 Series Grade 1 Heavy-Duty Deadlocks

× This image is for a similar product but it will differ in size, color and/or other attributes.

D400 Series Grade 1 Heavy-Duty Deadlocks

Price: $156.89 USD

11. Insert keying options here: (Optional)

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Falcon Lock Philosophy

Falcon takes a proactive approach to addressing commercial facility needs.

Whether the application is government, military, retail, industrial, tenant or institutional, Falcon offers a full line of Grade 1 and 2 locksets with functions and key systems to fit your budget requirements.

With a broad set of retrofit products including locks, trim options and cylinders for other manufacturers keyways, Falcon can provide an economical solution for your locking system needs.

As part of the world-renowned IR Security & Safety Sector, Falcon benefits from the power of IR’s industry leadership, global distribution and multiple product lines that deliver integrated security solutions.

Falcon is represented and supported by the Security & Safety Consultant organization across the US and Canada.

Their capabilities include facility surveys, specification writing, value engineering, key system design. In conjunction with IR security Centers complete after the sale service and support is available

Other trim designs and finishes are avaible on special order. For more information call: 1-877-631-9411.
How to Order
For correct ordering, and to ensure no delays in shipment of your order, the following descriptive data must be listed in the sequence shown. Necessary information can be found in other parts of this catalog. The example below shows an order for 20 each D locksets in the 441 Entry function, in a 626 (satin chrome) finish, to accommodate doors 1-3/4" thick with AA1-AA20 keying.
	Quantity:	Indicate the quantity required.
	Catalog Number:	Select catalog number.
	Finish	When the finish is the same for the outside and inside trim, it is shown once (626). For split finishes, the outside is designated first, then the inside (626 x 625).
	Latch:	2-3/4" backset standard. 2-3/8" backset available.
	Strike:	2-3/4" x 1-1/8" lipless standard. Optional ANSI, T-strike, full lip strikes or security strike available.
	Cylinder Type:	For 6-pin, add 6-pin. For 7-pin, add 7-pin.
	Door hand	Not required. All other locks are fully reversible.
	Keying Detail:	We suggest using the standard terms developed by the A.H.C. (Architectural Hardware Consultants). EXAMPLE: AA1 - Grand Master keyed, Master keyed, change key 1.
	Interchangeable Core:	To order product capable of accepting an interchangeable core, add “FIC” (for interchangeable core). To order product with an interchangeable core, add “WIC” (with interchangeable core).
	Keyway: “G”	is standard on regular cylinders, “A” is standard on interchangeable cores. Other keyways available. Please consult factory.
	Additional Keys:	Note the total number of keys required.
	Large Bow Keys:	Add– “with large bow keys.”


Cylinder Deadlock (Schoolhouse Safety) D411		Cylinder Deadlock D421
Locked or unlocked by key from outside. Unlocked by turn on the inside. Cannot be locked from the inside. Dead bolt automatically deadlocks when fully extended. ANSI/BHMA E1171 and E0171		Locked or unlocked by key outside. Blank plate inside. Dead bolt automatically deadlocks when fully extended. ANSI/BHMA E1161 and E0161


Double Cylinder Deadlock D431		Cylinder Deadlock With Turn D441
Locked or unlocked by key from either side. Dead bolt automatically deadlocks when fully extended. The attaching bolts are from inside only and are covered by a permanent type cover (No. 014606-002). ANSI/BHMA E1141 and E0141		Locked or unlocked by key from outside and by turn on inside. Dead bolt automatically deadlocks when fully extended. ANSI/BHMA E1151 and E0151

Finishes
The latest in modern techniques and equipment are used to apply the highest quality finish. Extra steps assure durable, consistent finishes and long useful life. Although we apply the finest available protective plating and/or enamel coating to the surface of our products, these finishes have limitations and in time may deteriorate either from exposure to weather, pollution, perspiration, extremes of climate, frequency of use or other factors. Deterioration of these finishes is, therefore, not a defect, but a normal process which is unavoidable. Our company cannot accept responsibility for finish deterioration in these circumstances; therefore, the finishes cannot be guaranteed. These products will not be refinished or replaced under our warranty should deterioration of finishes occur.
Description	ANSI No.	Available on
Bright Brass	605	avaiable on special order
Satin Brass	606	avaiable on special order
Satin Bronze	612	avaiable on special order
Satin Bronze Oil Rubbed	613	avaiable on special order
Bright Chrome	625	avaiable on special order
Satin Chrome	626	All trim
Satin Stainless Steel	630	Avaiable only in Interchangeable Cores

Falcon M Series Non Keyed Lever

Full D400-Series Falcon catalog

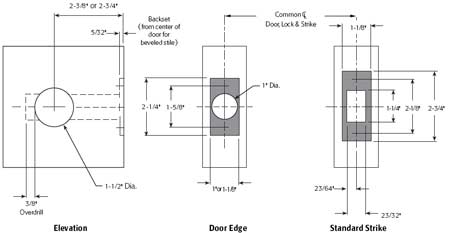

Door thickness:	1-1/2" to 1-3/4". Other thicknesses available, consult factory.
Backset:	2-3/4" standard. 2-3/8" also available.
Attachment:	Locks are solidly attached to the door by 1/4" heattreated steel bolts. These bolts pass through a steel plate (D411, D421 and D441) or the inner cylinder housing (D431) and thread directly into the back of the outer cylinder housing. A permanent type cap is inserted over each bolt (D431) thus making the bolts nearly impossible to remove.
Handing:	Non-handed. May be used on right hand or left hand doors swinging in or out.
Cylinders:	Furnished with solid brass plug and housing, drilled with 6-pin chambers, pinned in 5 unless otherwise specified. Also available with 7-pin cylinders. Available with 6 or 7-pin interchangeable cores. Furnished with two (2) nickel silver keys standard.
Keyways:	“G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
Trim:	Solid, bar stock brass housing. The housing is guarded by a tapered, free-turning, solid brass ring. Note:Security collar diameter is 2". Not available with larger diameter collar. Auxiliary trim ring No. 1676 is available in matching finishes for 2-1/8" cutout.
Latches:	9/16" bolt projection, UL Listed. Standard latch faceplates 2-1/4" x 1-1/8" with square corners to accommodate beveled or flat front doors. 3/4" projection, UL Listed latch with 2-3/4" backset also available.
Strikes:	4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard. Consult Options and Accessories section for other strike sizes and configurations.
Screws:	Furnished with combination wood/machine screws for use in wood or metal doors and frames.
ANSI/BHMA:	Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
UL:	3 hour A label.

Falcon Mortise Lock Specifications
	For over 40 years Falcon Lock has been manufacturing reliable lock hardware
	Our reputation and commitment to providing a high quality product at a reasonable price with timely delivery has been rewriting the standard in our industry.
	Falcon has one of the most extensive lines available on the market today - with a choice of functions and applications to meet and outreach the most demanding requirements..
	Falcon locks feature the convenience and flexibility of an interchangeable core.
	Whenever a key is lost or stolen, locks can be re-keyed quickly by removing the core and installing a new one, avoiding locksmith services.
	Our interchangeable cores are also compatible with other small format interchangeable core products.
	We continue to keep a pulse on our market by working closely with various agencies and organizations, such as ANSI/BHMA, who are responsible for the writing of specifications and standards.
	This allows us to improve and meet the needs of a changing market with reliable and flexible locks, delivered on time, exactly when you need them.

Hand Selector

D SERIES DESCRIPTION
All functions except Dummy Trim
1" Faceplate	Metal door	Wood door
1" Faceplate w/ 1/4" Radius		Wood door
1-1/8" Faceplate	Metal door	Wood door
Circular Flat Faceplate

Dummy Trim
Single & Double	Metal door	Wood door
Special Small Faceplate Latches
1" Faceplate	Metal door	Wood door
1" Faceplate w/ 1/4" Radius		Wood door

Strikes
Furnished with a 4-7/8" ANSI strike unless specified otherwise.

030020-000	010018-001 (avaiable on special order )	010019-000 (avaiable on special order )	030290-000 (avaiable on special order )
ANSI Strike	Lipless Strike	Lipless Strike	T-Strike or Security

005075-000	005051-000 (avaiable on special order )	005051-001 (avaiable on special order )
T-Strike, Square Corner	Full Lip, Square Corner	Full Lip, 1/4 Radius Corner

Latches—1" Projection, Standard
Latches for D Series locks are non-UL listed. Available in 2-3/8" or 2-3/4" backsets. Unless otherwise specified, we furnish a 2-1/4" x 1" x square corner faceplate on 2-3/8" backset latches and 2-1/4" x1-1/8" x square corner on 2-3/4" backset latches.

Square Corner	Radius Corner(avaiable on special order)	Drive-In (avaiable on special order )

Latches– for D400 (except D431) and D800 (except D831) series and upper trim for H series
Catalog Number	Description	Faceplate Size	Corner
A74420-000	2-3/8" Backset Dead Bolt	2-1/4" x 1"	Square
A74421-000	2-3/8" Backset Dead Bolt	2-1/4" x 1"	Radius
A74425-000	2-3/8" Backset Dead Bolt	2-1/4" x 1-1/8"	Square
A76429-000	2-3/8" Backset Dead Bolt	Drive-In	Round
A74430-000	2-3/4" Backset Dead Bolt	2-1/4" x 1"	Square
A74431-000	2-3/4" Backset Dead Bolt	2-1/4" x 1"	Radius
A74435-000	2-3/4" Backset Dead Bolt	2-1/4" x 1-1/8"	Square
A76439-000	2-3/4" Backset Dead Bolt	Drive-In	Round
K74420-00U	UL Deadbolt Latch Kit 2-3/8" Backset	2-1/4" x1"	Square
K74435-00U	UL Deadbolt Latch Kit 2-3/4" Backset	2-1/4" x 1-1/8"	Square

Latches– for D431 and D831 functions only
Catalog Number	Description	Faceplate Size	Corner
A84420-000	2-3/8" Backset Dead Bolt	2-1/4" x 1"	Square
A84421-000	2-3/8" Backset Dead Bolt	2-1/4" x 1"	Radius
A84425-000	2-3/8" Backset Dead Bolt	2-1/4" x 1-1/8"	Square
A86429-000	2-3/8" Backset Dead Bolt	Drive-In	Round
A84430-000	2-3/4" Backset Dead Bolt	2-1/4" x 1"	Square
A84431-000	2-3/4" Backset Dead Bolt	2-1/4" x 1"	Radius
A84435-000	2-3/4" Backset Dead Bolt	2-1/4" x 1-1/8"	Square
A86439-000	2-3/4" Backset Dead Bolt	Drive-In	Round
K84420-00U	UL Deadbolt Latch Kit 2-3/8" Backset	2-1/4" x1"	Square
K84435-00U	UL Deadbolt Latch Kit 2-3/4" Backset	2-1/4" x 1-1/8"	Square

Questions and Answers

Q: What is the Falcon lock warranty?

A: Falcon released a new 10 year warranty for its portfolio of locks. The new warranty is in affect for all locks purchased since November 1st, 2008. The only exception is that electronics/electrified functions will have a 1 year warranty. See documentation here for additional details:

Download File

Q: What replaced the D400 series or the D800 series?

A: Falcon replaced its deadbolt offering in 2008 with the D100 and D200 series. The D800 Grade 2 deadbolt was replaced by the D200 and the D400 Grade 1 deadbolt was replaced by the D100. The new bolts utilize an adjustable backset (2-3/8" and 2-3/4") and the function numbers carry over with the exception of the first digit.

Example: D811 = D211, D421 = D121
