Q: Thanks for taking the call today… As I said, I need to order two square push plates, two transmitters and two receivers. Ive used the BEA with the 23A battery inside, is there a better/ comparable unit? What different transmitter power supplies are available? 3V 12V? 2 AA 9V?
how do I specify this on the order? Thank you. Thomas

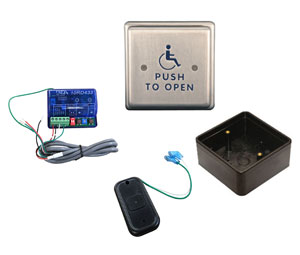

A: The BEA PUSH PLATE 45S 433 Push Plate Package with 433 MHz Transmitters and Receivers - 4.5" Square includes:
2 - BEA 10PBS451 4 ½ in sq plate as seen here:
Click Here
2 - BEA 10BOX45SQSM Surface mount boxes as seen here:
Click Here
and either:
2 - BEA 10td 433pb3v 3volt transmitters as seen here:
Click Here
or
2 - BEA BEA 10TD433PB9V 9volt transmitters as seen here:
Click Here
Specify which voltage transmitter you want at the time of the order
and finally 1 - BEA BEA 10RD433 433 MHz Digital Receiver as seen here:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
If you want the 900 MHz the part number is: Push Plate 45S 900 and the transmitters on the 900mHz system are AAA battery powered.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with. If this answer was helpful - please consider following us on Twitter
Click Here
or liking our page on Facebook
Click Here
A: The wiring diagram for the Ditec FA8-SP
can be seen on the 53'rd page of the installation Instructions here:
Download File
and the BEA PUSH PLATE 45S 433 Push Plate Package with 433 MHz Transmitters and Receivers - 4.5" Square package will give you everything needed to wirelessly activate your Ditec FA8-SP.
