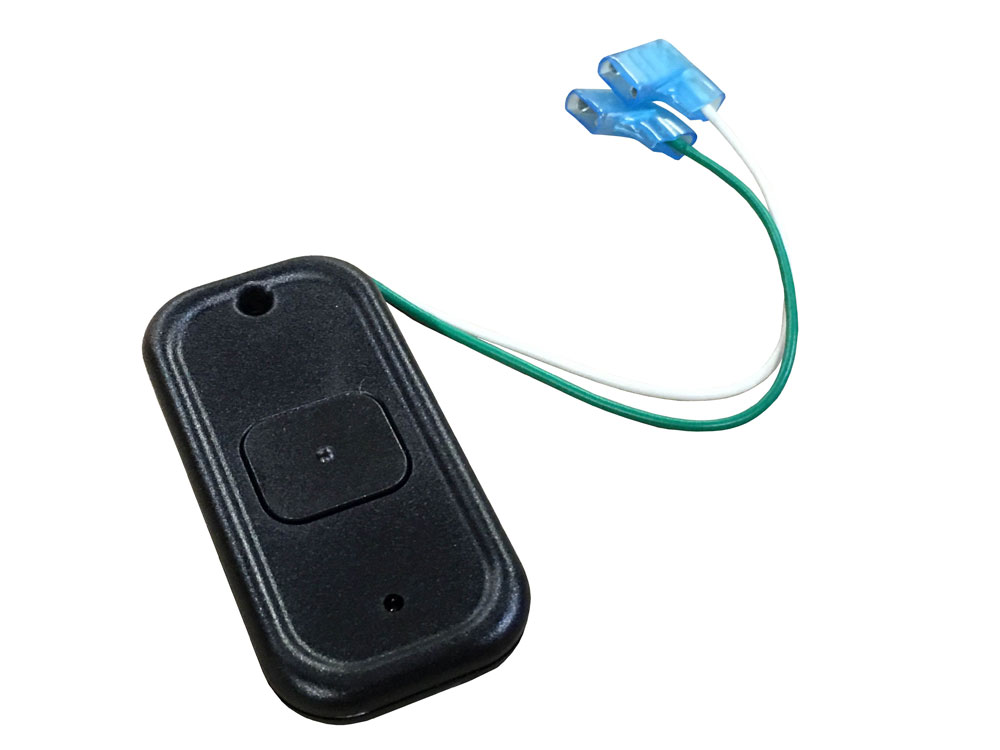

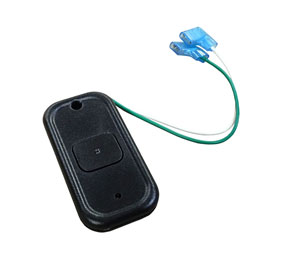

Digital Transmitter 433 MHz with Flag Connectors
Digital transmitter 433 MHz with Flag Connectors 3v lithium "button" battery. This transmitter replaces model 10TD433PB12V and will fit in all boxes except the 10BOXJAMBST.
The Transmitters are available in hand-held styles and they transmit a unique rolling code each time the transmitter is activated (thus providing a secure door opening signal).
Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple applications. Upon activation (pushplate / transmitter), all receivers will acquire the signal at the same time; however, each receiver will respond according to their programming. Those receivers programmed with NO DELAY will active immediately upon receiving the transmitter signal. Those receivers programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer.
The use of multiple receivers will allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.
1.0 A @ 30 VDC/0.3 A @ 60 VDC
0.5 A @ 125 VAC
RED
BLUE
2 3/4" x 1 3/8" x 9/16" (70mm x 35mm x 14mm)
2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
