BEA 10RD433EH

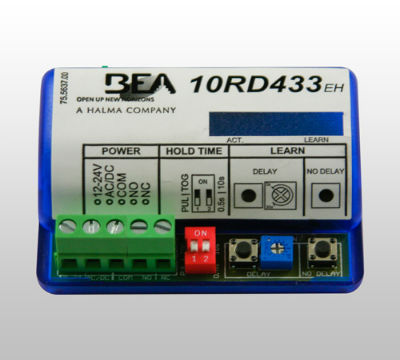

Name: BEA 10RD433EH 433 MHz Digital Receiver for Extended Hold Time Applications
Brand: BEA
SKU: BEA 10RD433EH
Price: 54.78 USD

BEA 10RD433EH 433 MHz Digital Receiver for Extended Hold Time Applications

× This image is for a similar product but it will differ in size, color and/or other attributes.

BEA 10RD433EH 433 MHz Digital Receiver for Extended Hold Time Applications

Video Review BEA 10RD433EH 433 MHz Digital Receiver for Extended Hold Time Applications

Price: $54.78 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 2

For quantities beyond the "In Stock" above, the item(s) ships in 2 business days.

BEA has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


10RD433EH 433 MHz Digital Receiver for Extended Hold Time Applications

Operates with a unique rolling code each time the switch is activated. Multiple applications (i.e. Vestibule) with Delay or No Delay programming. 100 transmitters can be programmed into a single receiver. Allows for removal of a single transmitter code. 433 MHz Extended Hold (EH) version: The transmitters used in conjunction with an Extended Hold (EH) receiver, once depressed and held, are designed to hold the door open until the transmitter button is released. Once released the 'EH' receiver will begin its no delay or predetermined delay time countdown sequence and allow the door to close. The 433MHz Series Transmitters and Receiver are ideal for the wireless activation and/or sequencing of automatic doors. The transmitters are available in hand-held or pushplate styles and they transmit a unique rolling code each time the transmitter is activated (thus providing a secure door opening signal). The transmitter PN: 10TD433PB9V is powered by a 9-volt battery whereas all other transmitters are powered by a 3 volt battery and all illuminate a Red LED when activated. Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple applications. Upon activation (pushplate / transmitter), all receivers will acquire the signal at the same time;; however, each receiver will respond according to their programming. Those receivers programmed with NO DELAY will active immediately upon receiving the transmitter signal. Those receivers programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer. The use of multiple receivers will allow for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.	Technical Data Instructions Instructions 433EH Product Catalog
