ASI 0469-2

Name: ASI 0469-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit
Brand: ASI
SKU: ASI 0469-2
Price: 420.97 USD

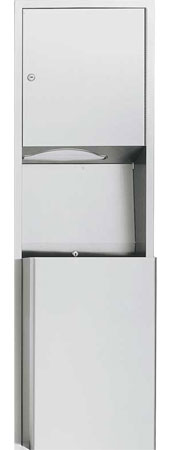

ASI 0469-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit

× This image is for a similar product but it will differ in size, color and/or other attributes.

ASI 0469-2 Semi-Recessed Paper Towel Dispenser and Waste Receptacle Unit

Price: $420.97 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

+ Add to My Wish List

1-844-809-3667

Sales

[email protected]

Technical Support

[email protected]

Product Description:

ASI Semi-Recess Mounted Paper Towel Dispenser and Waste Receptacle

Dispenses 800 standard multi-fold or 600 standard C-fold paper towels
Waste capacity of 12 gallons
Satin stainless steel
Tumbler locks keyed alike to other ASI washroom equipment
Rough wall opening: 15-3/4"W x 54-1/2"H x 2"D minimum (400mm x 1384mm x 51mm)

Cut Sheet

Operation

Towels are self-feeding until supply is depleted.
Waste container is emptied manually on cycle determined by maintenance needs.
Locked compartment prevents unauthorized access.

Installation

Rough Wall Opening required is 15-3/4"W x 54-1/2"H x 2"D minimum (400mm x 1384mm x 51mm).
Unit is semi-recessed in wall using four (4) No 10 self tapping screws (by others) through concealed mounting holes provided.
For compliance with ADA Accessibility Guidelines, unit should be installed so that towel dispenser slot is 54" (1372mm) maximum above finished floor (AFF) if clear floor side reach access is provided or 48" (1219mm) maximum AFF if clear floor forward reach access only is provided.
Note that top of RWO is 3/4" (19mm) below top of unit. SR collar is installed on cabinet prior to mounting in wall recess following procedure described on SR Collar Data Sheet.

Questions and Answers

Q: What is the part number for the lock only from the 0469 series of material?

A: The lock is part # L-001 as seen here:
