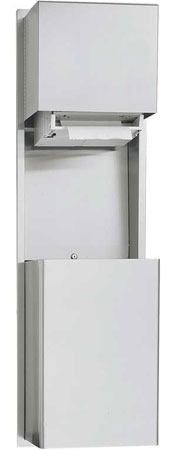

ASI 046924A Recessed Automatic Paper Towel Dispenser and Waste Receptacle Unit

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 046924A Recessed Automatic Paper Towel Dispenser and Waste Receptacle Unit
More from ASI
Price: $1,086.91 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
ASI Recess Mounted Automatic Paper Towel Dispenser and Waste Receptacle
  • Dispenses one 8" diameter x 8" wide standard towel roll up to 800 ft. long and one 8" wide stub roll up to 4" diameter
  • Waste capacity of 12 gallons
  • Powered by four (4) D-size batteries (not supplied)
  • Satin stainless steel
  • Tumbler locks keyed alike to other ASI washroom equipment
  • Rough wall opening: 15-3/4"W x 54-1/2"H x 4"D minimum (400mm x 1384mm x 102mm)

Operation
  • Towels are dispensed one at a time automatically when hands are placed in sensor zone until supply is depleted.
  • Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll.
  • Locking compartment and receptacle retainer prevents unauthorized access and removal.
  • Waste container is emptied manually on cycle determined by maintenance needs.
Installation
  • Rough Wall Opening (RWO) required is 15-3/4" W x 54-1/2" H x 4" D minimum (400 x 1384 x 102)
  • Install unit in wall recess using No 10 self-tapping screws (by others) through concealed mounting holes provided.
  • Note that top of Rough Wall Opening (RWO) is 3/4" (19) below top of unit.
  • For compliance with ADA Accessibility Guidelines, install unit so that bottom edge of towel dispenser door is 48" (1219) maximum above finished floor (MAX AFF).
Questions and Answers
Q: Will it work with 8.25" x 700 roll towels
A: This unit dispenses one 8" diameter x 8" wide standard towel roll up to 800 ft. long and one 8" wide stub roll up to 4" diameter.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
