ASI 0347

copy to clipboard

ASI 0347 Vertical Soap Dispenser

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ASI 0347 Vertical Soap Dispenser
Main ImageVideo Review ASI 0347 Vertical Soap Dispenser
More from ASI
Price: $40.06 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 7
In Stock (Minimums Apply):
Yonkers, NY Warehouse Qty: 8396
Quick Ship - up to 25 units available to ship in 1 business day
For quantities beyond the "In Stock" above, the item(s) ships in 4 business days.

ASI has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:
ASI Surface Mounted Vertical Soap Dispenser
  • Capacity of 40 oz (1.18 liter) of liquid or lotion soaps, synthetic detergents and antibacterial soaps containing PCMX and/or Triclosan
  • Satin stainless steel
  • Unbreakable refill window
  • Valve meets ADA Accessibility Guidelines by requiring no more than 5 lbs pressure
  • 4 3⁄4" x 8 1⁄8" x 5 1⁄4" (120 x 205 x 135 mm)


Operation

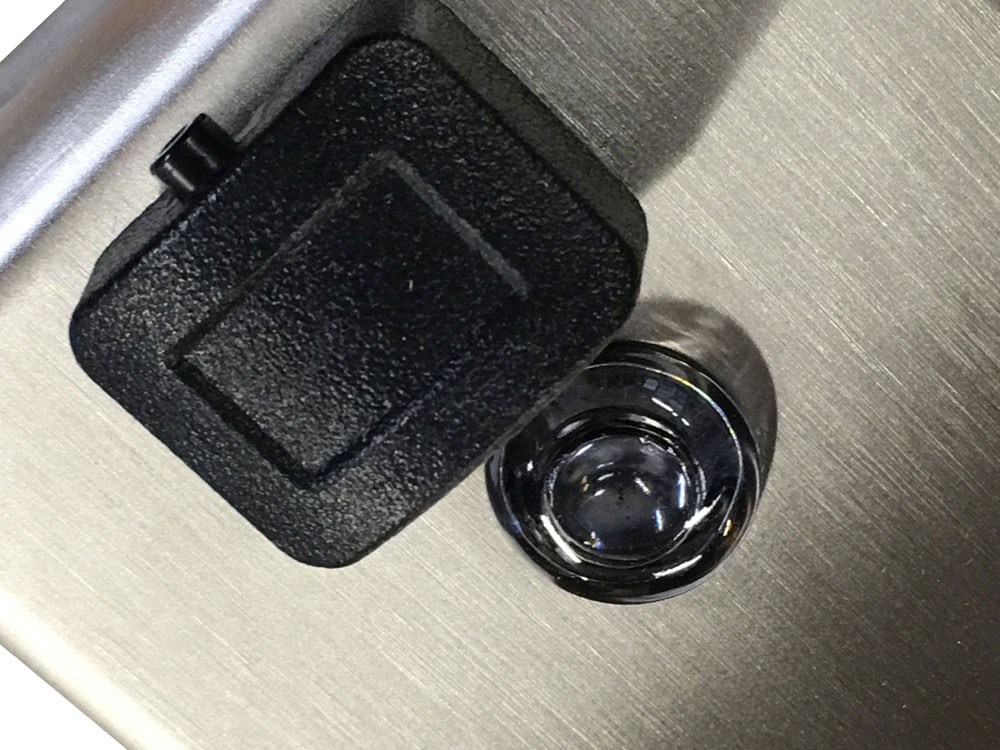

  • Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open.
  • Soap tank will continue to feed properly until soap level is below valve intake port.
Installation

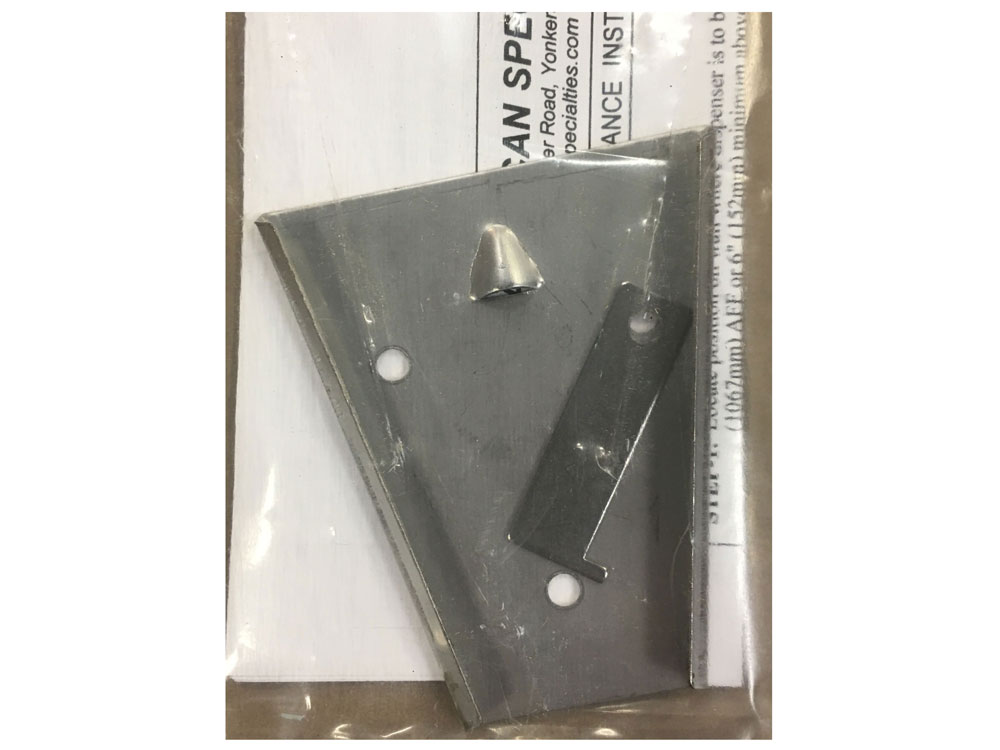

  • Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others).
  • Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door.
  • Recommended installation for general utility is 42" (1066 mm) AFF or 6" (152 mm) minimum above washbasin.

ASI 0345 and ASI 0347 Wall Plate Dimensional Review
Questions and Answers
Q: Hi, i bought 6 of those a while ago and we are doing renovations, and the wall mountng plates are gone. Do you sell the wall mounted as spare part? Thanks
A: Sorry - No, we do not offer as a spare part - an entire unit will need to be purchased - sorry but this is a result of this item being an imported item and the factory does not import the soap dispenser sub-components.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: really? Awe :9 Any chance you would have the dimensions and maybe i can try to replicate?
A: It is my pleasure to attempt in helping you solve this problem. Please review this video:

Click Here

and if there are any other questions, please let me know.

Q: Please confirm it is stainless steel in grade 316.
A: The ASI 0347 Dispenser is fabricated of 20 gauge stainless steel, alloy 18-8 type 304.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

Q: I have one of these dispensers. The problem is it leaks. Is there a fix for this problem?
A: Typically when there is leaking from your ASI 0347 Vertical Soap Dispenser Soap Valve which in this case would be the ASI V-320 All Purpose Liquid Soap Valve as seen here:

Click Here

Q: How do you fill the soap dispenser? Do you just pour the soap in from the top or is there a refill that fits this dispenser?t
A: You do indeed just fill it from the very top of the container and I might suggest using a funnel. The ASI 0347 simply takes poured liquid soap meaning there is no refill that is installed into the unit.
Q: Ive also had the leak problem that funtowatch2 mentioned. And possibly related, curious how I adjust to let the right amount of soap out!
A: There is no way to adjust to quantity of soap dispensed on the ASI 0347 manual soap dispense, though automatic soap dispensers usually have control over this.
Q: what does the little screw on the underside of the black plastic hand pump do?
A: The role that screw plays is keeping the soap valve is an assembled state. Unless you need to disassemble the valve it would be best to leave this screw in place.
Q: Why does this item quit pumping soap? Is the O ring the problem or something else. I have pulled the top pin out to clean the pump head and I do have water flow through that but when reassembled it still does not pump water or soap. What is the issue?
A: Generally, this is caused from a lack of maintenance. Tell me, how often do you flush the vale with warm water?
Q: I just took over maintenance of this clinic and I will have to say that they likely never flush the dispenser.
A: Cleaning the units is the only way they can be expected to last for an appreciable amount of time. I would replace the failed units and then perform regular maintenance moving forward.
