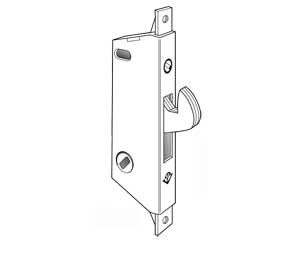

Adams Rite MS1847-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Adams Rite MS1847-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish
More from Adams Rite
Price: $67.79 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

1-773-809-3667

Sales
Technical Support
Product Description:
MS1847-630 Deadlock for Ultra-narrow Stile Sliding Doors - Stainless Steel Finish

MS1847 Series MS® Deadlock/Latch for ultra-narrow stile siding sliding doors (glass or aluminum) features a self-protecting bolt with adjustable bolt projection.

  • 45º Hub Angle, Square Face
  • Function: A compact lock designed to fit within very narrow sliding door stiles without compromising the high degree of security these doors need. The sturdy stainless steel bolt has two important features not usually found in sliding door hardware. First, it is adjustable: a full 3/16” lengthening or shortening of bolt projection is possible by turning an exposed screw in the face of the lock. This can compensate for considerable misalignment between door and jamb. Second, the MS1847 bolt is self-protecting: if the door is closed with the bolt in the locked position, the bolt will retract immediately on contact with the jamb, thus preventing damage or accidental lock-out.
  • Operation: Can be operated by a standard cylinder, so the glass door may be keyed-in with other types of doors. Three hub slot positions allow installation even where jamb and stile design provides severely limited turn clearance.
  • Finish: 630 - Stainless Steel
  • Case: Stainless steel, measures 1/2” x 3-3/16” x 1-1/8”.
  • Anti-lift Bolt: Three-ply laminated stainless steel. Designed to withstand approximately one-half ton force, either horizontal or vertical. Anti-lift bolt stops both door-from-jamb pry bar attacks and attempts to lift the door from its track.
  • Deadlock Body: Square
  • Latch version: Standard Latching; the same stainless steel hookbolt, but spring-loaded for automatic latching, is provided by the MS1847-11 and MS1847-13. All dimensions and available accessories for the MS1847 deadlocks also apply to MS1847 deadlatches.
  • Standard Package: Case-packed with machines screws for mounting.
  • Shipping Weight: 1/3 lbs.
  • Cylinder Pulls, Turns and Trim Strikes are available separately.



FACE SHAPE, HUB ANGLE, LOCK OR LATCH
