Acudor ED-2002 12 x 12 SSCAM

copy to clipboard

Acudor ED-2002 12 x 12 SSCAM Universal Flush Access Door for All Surfaces with Concealed Hinge 12" x 12" - Prime Coat White with Slat Screwdriver Operated Cam Latch

enlarge
enlarge

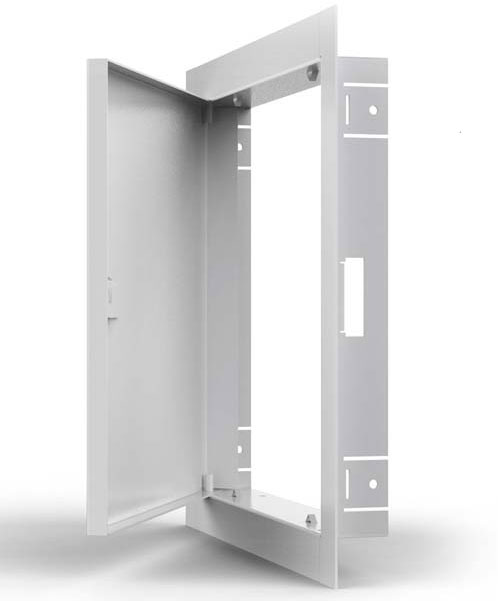

× This image is for a similar product but it will differ in size, color and/or other attributes.
Acudor ED-2002 12 x 12 SSCAM Universal Flush Access Door for All Surfaces with Concealed Hinge 12" x 12" - Prime Coat White with Slat Screwdriver Operated Cam Latch
Main ImageVideo Review
More from Acudor Products Inc.
Price: $27.28 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
Naples, FL Warehouse Qty: 133
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
Acudor ED-2002 12 x 12 SSCAM Universal Flush Access Door for All Surfaces with Concealed Hinge 12" x 12" - Prime Coat White with Slat Screwdriver Operated Cam Latch

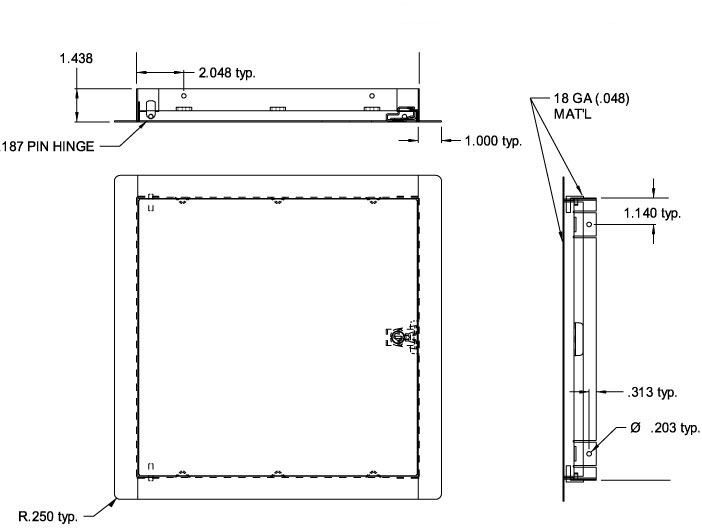

ED-2002 Access Door Specifications:
  • Nominal Door Size: 12" x 12"
  • Material: 18 gauge steel door and frame
  • Weight: 4.4 lbs
  • Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baking enamel
  • Door: Flush to frame with reinforced edges
  • Mounting Frame: 1" wide outside flange with 1 7/16" deep mounting Frame: Knock over mounting tabs provided on 6x6, 8x8, 10x10 and 12x12
  • Hinge: Concealed Hinge Pin
  • Locks: Slat Screwdriver Operated Cam Latch

Features:
  • Locking options:
    • Standard: Stainless steel slot Screwdriver Cam Latch
    • Key Cylinder Lock, replacement Key Cylinder with One Key Acudor 1554F8 is available
  • Formed door panel
  • Concealed hinge
  • 12" x 12" and smaller doors have bend tabs to aid in installation

Applications:
  • Installation in Drywall, Plaster, Masonry, Tile or any flush surface
  • Economical and attractive access door for walls & ceilings
  • This quality product is ideally suited for apartments, condominiums and office buildings
Questions and Answers
Q: is this model fire rated
A: This is not a fire rated panel but we can provide these for you. How many are you looking to purchase? I will forward you a quote.

Please let us know if there is anything else we can help with.
