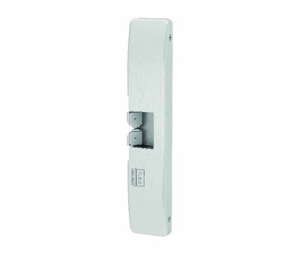

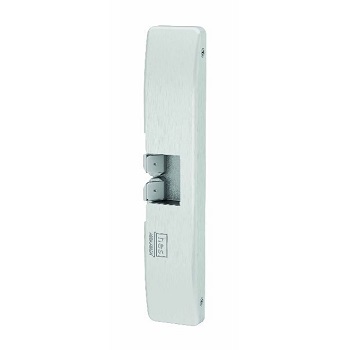

HES 9500630LBM

The 9500 Series is fire rated for 3 hours and designed to accommodate rim exit devices with a 3/4" Pullman latch.
All components of the 9500 Series are completely encased within its 3/4" thick stainless steel housing, so not cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.

• Electric Strike
• with Latchbolt Monitor
• Function: Field Selectable (Safe/Secure)
• Configuration: Centered
• Keeper Size: PK
• Frame Application: Metal or Wood
• Operating Voltage: 12VDC/24VDC
• Amp Draw: .45 @ 12V .25 @ 24V
• Faceplate Size: 9" x 1-3/4"
• Thickness: 3/4"
• Surface Mounted
• Application: Pullman Latch Rim Panic Device
• Base Material: Stainless Steel
• Finish: Satin Stainless Steel
• Fire Rated: 3 Hours
• Use With: Rim Exit Devices


  Additional Series Information:

• Ul 10C Fire-Rated, 3 Hour (Fail Secure)
• Endurance: 1,000,000 cycles
• Holding Force: 1500
• Dynamic strength: 70 ft-lbs.
• UL 1034 burglary-resistant listed and suitable for outdoor use
• Non Handed
• ANSI/BHMA A156.31, Grade 1
• Internally Mounted Solenoid
• Item Image may differ from product selected
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
