Hes 5000-501

Name: Hes 5000-501 Heavy Duty Low Profile Electric Strike
Brand: HES
SKU: Hes 5000-501
Price: 193.41 USD

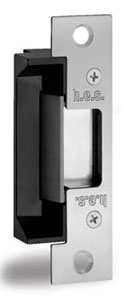

Hes 5000-501 Heavy Duty Low Profile Electric Strike

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $193.41 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 2-3 business days.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


5000-501 Heavy Duty Low Profile Electric Strike with 501 Faceplate

UL 1034, burglary-resistant listed ANSI/BHMA 156.31, Grade 1 Stainless steel construction Tamper resistant Static strength 1,500 lbs. Dynamic strength 70 ft-lbs. Endurance rating 500,000 cycles Field selectable fail secure/ fail safe Dual voltage 12 or 24 VAC/VDC Non-handed Internally mounted solenoid Accommodates 1/2” - 5/8” latchbolt (with 1/8” door gap) Strike body depth 1-1/16” Plug-in connector Trim enhancer included		HES 5000 Installation Instructions HES 5000 Dimensional Drawings


501 Faceplate

47/8" × 11/4" face plate for ANSI jamb prep Does not require removal of the dust box.

Transformer

	Required if wiring directly from the wall with no power source Must use rectifier when using transformer 2002-12 - converts 120 VAC to 12 VAC output. 20V, 1.6 Amp max. 2002-24 - converts 120 VAC to 24 VAC output. 20V, 0.8 Amp max. 2002P-24 - plug-in, converts 120 VAC to 24 VAC output. 5V, 0.2 Amp max.

Rectifier

	For converting AC to DC Must be used when using transformer

Buzzer

	Provides audible operation indication Designed to easily snap in-line between the connectors provided with each strike

LED Indicator

	Provides silent operation indication Designed to easily snap in-line between the connectors provided with each strike

"Press Fit" Stackable Lip Extensions
	Designed to be press fit to the strike case and/or combined with other 5104 lip extensions to meet the needs of a particular jamb width. 5104-1/2" - 1/2" Stackable lip extension 5104-1" - 1" Stackable lip extension 5104-1-1/4" - 1-1/2" Stackable lip extension 5104-3" - 3" Stackable lip extension
