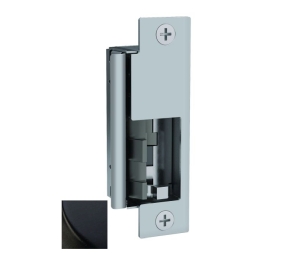

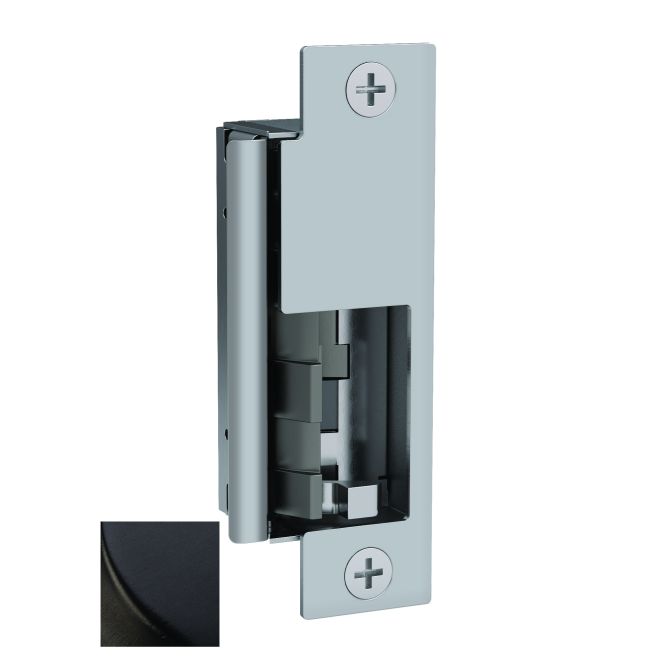

HES 8500613LBM

The high performance 8500 Series is fire rated, compact, and features a unique concealed design.
The 8500 series is a unique elctric strike that complies with NFPA 80-07 guidelines for retrofit into fire-rated frames. The 8500 accommodates mortise latchbolts up to 3/4" throw.

• Electric Strike, Body Only
• with Latchbolt Monitor
• Function: Field Selectable (Safe/Secure)
• Configuration: Universal
• Keeper Size: 3/4"
• Frame Application: Metal or Wood
• Operating Voltage: 12VDC/24VDC
• Amp Draw: .24 @ 12V .12 @ 24V
• Application: Multi-Application
• Base Material: Bronze
• Finish: Oil Rubbed Bronze
• Fire Rated: 3 Hours
• Use With: Mortise Locks


  Additional Series Information:

• Ul 10C, Fire-Rated, 3 Hour (Fail Secure Only)
• Endurance: 500,000 cycles
• Holding Force: 1500
• Dynamic strength: 70 ft-lbs.
• Non Handed
• ANSI/BHMA A156.31, Grade 1
• Internally Mounted Solenoid
• Item Image may differ from product selected
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
