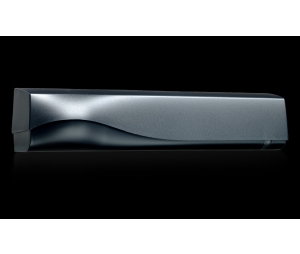

BEA`s IXIO-ST is an effective, versatile and easy-to-use presence sensor for automatic sliding doors. It can be used for both clear door openings and side-lite protection.
Precise infrared curtains coupled with visible alignment beams make the IXIO-ST extremely safe and easy to adjust. This state-of-the-art sensor features an on-board LCD screen that streamlines the installation and setup processes.
The IXIO-ST can be adjusted into an ANSI compliant solution and has earned a comprehensive list of credentials and certifications, including FCC and IP54.
Technology
Active Infrared
Detection Mode
Presence
Spot Size
2 in x2 in
Max. Number of Spots
24 per curtain
Max. Number of Curtains
2
Output RelaysMax. Contact CurrentMax. Contact VoltageHold Time
Electro-mechanical-relay (potential and polarity free)1 A30 VDC0.5 s -9 s
Solid-state-relay (potential and polarity free)400 mA42 VDC0.3 s -1 s
Test Input
N/A
Sensitivity: Low: 10 V (max. 30 V)Response time on test request: typical:
Supply Voltage
12 -24 VAC ±10%; 12 -30 VDC ±10% (to be operated from SELV compatible power supplies only)
Mounting Height
78 in -138 in (6.5 ft -11.5 ft)
Temperature Range
-13 °F -131 °F0 -95% relative humidity, non-condensing
Degree of Protection
IP54
Applicable Directives
R &TTE 1999 / 5 / EC; EMC 2004 / 108 / EC;MD 2006 / 42 / EC; RoHS 2002 / 95 / EC
Dimensions
10.6 in (W) x2.27 in (H) x2.25 in (D)
Cable Length
120 in (10 ft)
Norm Conformity
EN 12978, EN ISO 13849-1:2008 PL < > CAT.2(under the condition that the door control system monitors the sensor at least once per door cycle)IEC 61496-1:2012 ESPE Type 2EN 16005: 2012 Chapter 4.6.8;DIN 18650-1:2010 Chapter 5.7.4BS 7036-1:1996 Chapter 8.1
