Bea 10SSI

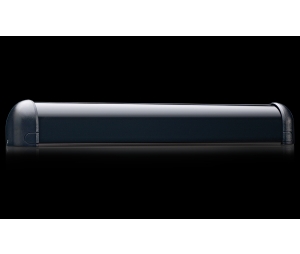

BEA`s SUPERSCAN-T INDUSTRIAL is an active infrared sensor designed for use in industrial environments that require presence and/or safety detection. This sensor can be used on automatic industrial doors, gates and industrial automation applications.

The SUPERSCAN-T INDUSTRIAL uses triangulation to detect the presence of an object, eliminating false detections caused by varying ground and environmental conditions.

In an industrial setting, this versatile sensor can be mounted stationary or on a moving object. Additionally, the SUPERSCAN-T INDUSTRIAL can be used as an individual module or daisy chained with up to 8 slave modules (9 total modules). This flexibility allows the SUPERSCAN-T INDUSTRIAL to be used on both narrow and wide doors and many other off door applications. Each module detection zone can be angled independently.

• User-defined detection zones: Detection zone of 24 to 96 inches
• Flexible mounting: Can be mounted vertically or horizontally based on application
• Customizable hold time: Relay hold time can be adjusted from 0.1 to 4.5 seconds
• UL 10B/C Listed: Fire rated up to 90 minutes
• Technology: Active Infrared with background suppression
• Detection Mode: Presence
• Measurement of Distance: Triangulation
• Power Supply: 12 -24 VAC / VDC ±10%
• Output Interface; Relay: Relay -max. contact rating: 1A @ 30 V (resistive)
• Detection Range: 0 -8`
• Distance Adjustment: 2 -8`(rotating cam with linear adjustment)
• Max. Mounting Height: 8`
• Detection Signal Duration: Infinite Presence Detection
• Output Hold Time: Potentiometer range: 0.1 -4.5 seconds
• Operating Temperature Range: -30 ° -140 °F
• PCB Dimensions:

  • Master: 10.91"(W) x1.5"(H)
  • Slave: 8.75"(W) x1.5"(H)
• Connector to Door Controller: 8-position screw terminal on Master PCB
• Master-to-Slave Connection: Flat-ribbon cable with connectors and key lock
• Max. Number of Slaves: 8
• Functions Selection:

  • Detection mode: NO or NC
  • Normal mode or Background Analysis mode
• Norm Conformity:

  • UL 10 B / C (90 minutes) ¹
  • UL 10 B file number: GVUX.R39071;
  • UL 10 C file number: GVUX7.R39071
    ¹UL 10 fire rating applies only to SUPERSCAN-T sensors with housings less than or equal to
    46 1/2". Housings greater than 46 1/2"are not UL 10 fire-rated.
• Security Lock UID: BEA10010SSI
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
