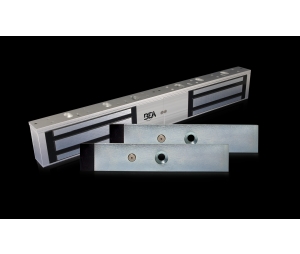

BEA 10MAGLOCK6ULDS

BEA`s UL Listed Maglock portfolio provide a standards compliant locking solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials.

The UL Listed Maglocks are available in surface mount single or double door configurations, with holding force of 600 or 1,200 lbs. These locks include adjustable 0-90 sec relock time delay and a lock status sensor with visible LED.

The Maglock with DS is available in surface mount, single or double door configurations, with a holding force of 600 or 1,200 lbs. These locks include an adjustable 0-90 sec relock time delay, lock status sensor with visible LED and door status sensor.

• Customizable: Adjustable 0-90 second relock time delay
• LED for enhanced reliability: Lock Status Sensor with visible LED
• UL Listed: Input voltage of 12/24 VDC, must be used with UL Listed power supply
• Additional features: DS models include a door status sensor
• Door Configuration: Double, surface mount
• Holding Force: 600 lb
• Input Voltage: 12 or 24 VDC (UL Listed power supply required)
• Current Draw:
  • 1 A @ 12 VDC
  • 0.50 A @ 24 VDC
• Dimensions: 19.76 in (W) x1.65 in (H) x1.02 in (D)
• Relock Time Delay: 0 s -90 s
• Sensor: Lock Status Sensor, Door Status Sensor
• Output Relay: Up to 1A @ 24 VDC
• Security Lock UID: BEA10010MAGLOCK6ULDS
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
