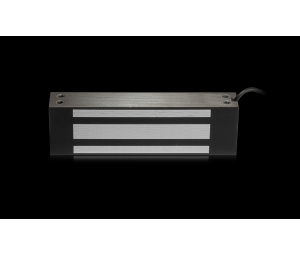

BEA 10GL1200SR

BEA`s UL Listed Gatelocks are designed to withstand the elements, featuring a stainless steel exterior and NEMA 4 enclosure to protect internal electronics. Its weather-resistant construction makes it ideal for industrial gate and exterior door applications.

With a holding force of 1,200 lbs, the Gatelock is available in both a front mount model for sliding gates and a side mount model for swinging doors/gates. These locks include a built-in lock status sensor with a output relay.

• Multiple mounting options: Available in front or side mount with a 1,200 lb holding force
• Easy-to-mount: Front mount model comes with a 3/4 inch male NPS threaded conduit fitting
• Withstands the elements: Weather-resistant, stainless steel housing makes these locks suitable for outdoor applications
• Door Configuration: Swinging Door / Gate, side mount
• Holding Force: 1200 lb
• Input Voltage: 12 / 24 VDC (UL Listed power supply recommended)
• Current Draw:

  • 500 mA @ 12 VDC
  • 250 mA @ 24 VDC
• Relay Switch:

  • 250 mA @ 12 VDC
  • 125 mA @ 24 VDC
• Dimensions: 8.75 in (W) x 2.50 in (H) x 1.625 in (D)
• Material: Stainless Steel
• Sensor: Lock Status Sensor with relay output
• Cable Specifications: 24 AWG 7-conductor cable, 3.5 ft
• Norm Conformance:

  • UL and CUL
  • ANSI 156.10
  • NEMA 4 / IP65
• Security Lock UID: BEA10010GL1200SR
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
