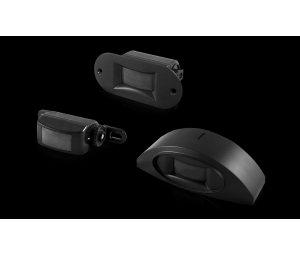

BEA 10FLYKITB

BEA`s Fly Kit is the industry`s most compact passive infrared (PIR) sensor, ideal for request to exit (REX) applications.

This low-cost, versatile sensor can be surface mounted above any door, as well as on the ceiling or wall. The Fly Kit also includes an optional flush mount housing. Its flexibility and low profile design make it an effective sensor for managing building security and traffic flow.

• Precise infrared detection: Sensing field adjustment masks provide accurate detection zones (2 included)
• Adjustable access settings: Extended Relay Time (ERT) version is available for hold times of 15 or 30 seconds
• Customizable: DIP switches for user-defined settings
• Low profile design: Compact, aesthetically pleasing design; Packages include both ceiling and surface mount adapters
• Technology: Passive Infrared
• Mounting Height:

  • Recommended: 78 in -96 in (6.5 ft -8 ft)
  • Maximum: 120 in (10 ft)
• Mounting Angles: 0°to 180°
• Power Supply:

  • 12 -24 VAC; ±10% (50 / 60 Hz)
  • 12 -24 VDC; -10% / 30%
• Contact Rating: 1 A / 75 VDC or 50 VAC potential free contact NO / NC
• Optical Characteristics:

  • Passive infrared with four elements
  • 15 Fresnel lenses with full independent masking possibilities
• Warm-up Time: 10 s
• Response Time: Maximum: 200 ms
• Relay Hold Time:

  • Standard Fly: 0.5 or 2 s
  • Fly Extended Relay Time: 15 or 30 s
• Operating Temperature:-22 °F -140 °F (-30 °C -55 °C)
• Cable: 108 in (9 ft) four-conductor cable with 5-pin connector
• Weight: 1.4 oz (40 g)
• Sensor Dimensions (L x W x H): 4.0 in (W) x1.8 in (H) x1.0 in (D)
• Security Lock UID: BEA10010FLYKITB
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
