AJW UG30-A36

Name: AJW UG30-A36 1.5" Diameter 36" Straight Grab Bar - Concealed Set Screw Flange
Brand: AJW
SKU: AJW UG30-A36
Price: 44.04 USD

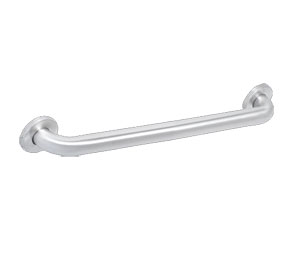

AJW UG30-A36 1.5" Diameter 36" Straight Grab Bar - Concealed Set Screw Flange

× This image is for a similar product but it will differ in size, color and/or other attributes.

AJW UG30-A36 1.5" Diameter 36" Straight Grab Bar - Concealed Set Screw Flange

Price: $44.04 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships in 5 business days with $100.00 minimum purchase of AJW products or 15 business days for smaller orders.

AJW has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

AJW UG30-A36 1.5" Diameter 36" Straight Grab Bar - Concealed Set Screw Flange

Straight Grab Bar
Diameter: 1.5"

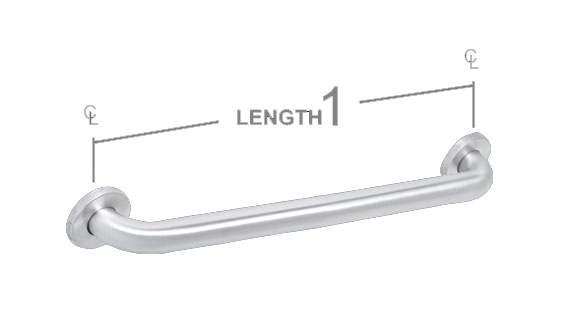

Length 1: 36"
Material: Satin Stainless Steel
Flange Type: Concealed Set Screw
Custom Sizes and Powder Coating available upon request. Please contact sales for more information.

Product Brochure

Tech Sheet

Grab Bar Configurations

Measurement Guide

Specifications & Installation

Tubing: Fabricated of #18 ga stainless steel with a #4 satin finish. Available in 1 1/4" and 1 1/2"outside diameter. All bends are formed by an automatic mandrel bending process. All bars maintain a constant 1 1/2" offset.
Finish: Standard finish is a #4 satin finish. For a non-slip finish (peened) add suffix X to model number.
Flange: Flanges are fabricated of 3" diameter, 1/2" drawn #11 ga stainless steel with #4 satin finish to match tubing. Flanges are heliarc welded to bar to form a one piece construction. Each flange is secured to concealed mounting plate with four (4) 1/4"-20 stainless steel tamper resistant set screws.
Strength: Bars with a 1 1/2" offset clearance will support loads in excess of 900lbs when properly installed. Bars with greater offsets will support loads up to 250lbs when properly installed.
Installation: Before installing grab bars, verify with all state and local codes for requirements on bar diameter and type finish. Recommended mounting heights for grab bars are 33" - 36" centerline above finished floor. All mounting of grab bars when possible should have in wall mounting back plates. Secure mounting plate to wall surface at specified location with proper anchors (snugly) until proper centerline dimension is achieved. Place bar over plates and secure with supplied set screws. (4 per flange).
NOTE: V-Style bars are fabricated in two sections. Splice kit is included with each bar.
