Xtralis VSP-005

A: The Country of Origin = Malaysia per Xtralis

TARIFF NUMBER 8531.90.8590

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

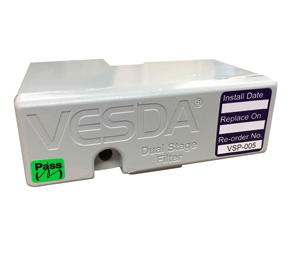

A: Filter replacement:

The VESDA LaserFOCUS smoke detector uses a disposable dual stage air filter cartridge. This filter removes dust contamination from sampled air and provides a clean air bleed to preserve the detector chamber optics. The detector constantly monitors filter efficiency. To maintain the operational integrity of the smoke detector, it is recommended that the filter be replaced every 2 years, or when a filter fault occurs or more often for environments that experience high levels of contamination.

A fault is raised on the detector, when the filter needs to be replaced. During the replacement process the detector needs to be informed that a new filter has been installed. Note: Prior to any work or maintenance being carried out on the VESDA LaserFOCUS Note: Ensure the area surrounding the filter is clear of dirt and debris prior to replacement. Note: The filter is for single use only, it cannot be cleaned and re-used. take the necessary steps to advise the monitoring authority that power may be removed and the system disabled.

Filter replacement steps:
Ensure the detector remains powered up during filter replacement and a new filter cartridge is available:

1. Push in the security tab and lift up the field service access door (A).
2. Set the detector to ‘Standby’ mode by pressing the Disable button for 6 seconds. The Disabled LED begins to flash. After releasing the Disable button the disabled LED will slowly flash.
3. Undo the recessed retaining screw (C) and pull out the old filter (B).
4. Using your finger, firmly press the filter switch (D) (in the filter recess of the detector) 5 times within 5 seconds to confirm to the detector that a new filter is about to be installed (see inset). A LED next to the serial interface will flash each time you push the filter switch, and will continue flashing once you have successfully pressed the switch 5 times in 5 seconds.
5. Insert the new filter (VSP-005) and tighten the retaining screw.
6. Press the Disable button for 6 seconds to return the detector to normal operation.
7. Record the filter replacement date on the filter.
8. Close the field service access door.

Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

A: Thank you for the question and have the answer direct from the manufacturer.

Technical support at Xtralis states a proper time sequence to replace is every 2 - years but this greatly depends on the enviornment. A dirty environment will required changes sooner than this 2 - year interval but an ultra clean environment may extended this interval out to 5 - years. The short answer is the mean failure point depends on the specific environment.

We have alwasy suggested these are changed annually (but we are correted by Xtralis to revise to every 2 - years) but I mention this annual change to simply reflect our experience that clients have to date not indicated a change out period of less than an annual cycle was required.

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

A: Are they new? Are you asking if I am quoting you on new material? I am confused. What else would they be if not new?

A: I see - I was unaware anyone would or could sell or the Xtralis system would accept, a used filter. Our Xtralis VSP-005 Dual-Stage Filter Cartridge - Vesda® Replacement Filters are only new, never used, direct from the manufacturer in original unopened packaging. Please keep in mind - as a result of our new filter policy - Filter(s) are not returnable. Regardless of condition, once the product ships and leaves our warehouse(s), since we cannot control the environment nor the filters handling once received by the client, filters are not returnable.

A: Yo también he visto esto sin estar seguro de este significado. ¿Hay alguna pregunta en particular con respecto a esto?

A: These items are currently in stock and can ship the same or next business day and I would allow approximately a week or so for the material to arrive.

A: Only the quantity sold. The VSP-005 is a quantity of one and the VSP-025 is a quantity of 20.

A: The only difference between the part number VSP-025 and the VSP-005 is that the part number VSP-025 is a package of 20 pieces and the part number VSP-005 is a single filter.
