Trine EN430 ES

Name: Trine EN430 Electric Strike
Brand: Trine
SKU: Trine EN430 ES
Price: 461.76 USD

Trine EN430 Electric Strike

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $461.76 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Trine EN430 Electric Strike

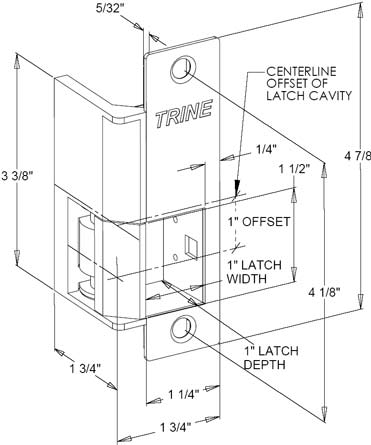

EN430 PRODUCT DIMENSIONS

INSTRUCTIONS

Printable Catalog Page

FEATURES
	FACE PLATE - 1-1/4” X 4-7/8”
	ALL STAINLESS STEEL CONSTRUCTION
	DURABILITY - 1,000,000 Life cycles
	HOLDING FORCE - 2000 lbs. UL tested
	CAVITY DEPTH - 7/8”, CAVITY HEIGHT - 1-1/2”, CAVITY WIDTH - 1"
	CAVITY CENTERLINE OFFSET 1"
	HANDED-SPECIFY LH OR RH
	MORTISE TYPE - Backset 1 3/4" deep

STANDARDS
	UL LISTED - 10B fire rated ( Class A, 3-hour Single Swing Doors)
	UL LISTED - 1034 Burglary Resistant Locking Mechanism for Indoor or Outdoor Use
	ANSI - 1-1/4"X 4-7/8" Fits cutout Specification A115.1 ( With Slight Jamb Modification)
	BHMA - A156.5 - 1992 Grade 1

OPTIONAL FEATURES

NEW EN-LB: OPTICAL IR LATCHBOLT SENSOR AVAILABLE
EN-CA: Additional coil assemblies available in all voltages listed
LOW VOLTAGE BUZZER for audible signal when using DC voltage. Specify BZ-12 for 12 VDC or BZ-24 for 24 VDC.

FINISH (Specify When Ordering)
SATIN BRASS - US4 ; BRIGHT BRASS - US3; STANDARD FINISH - Satin Stainless Steel US32D; DARK BRONZE - Powder Coated; BRIGHT CHROME- US26 ;
ELECTRICAL CHARACTERISTICS CHART**
FOUR MAGNETIC COILS AVAILABLE Color coded wires depict the voltage of each coil.
VOLTAGE	WIRE COLOR
12 VAC	Blue(1) Orange/White(1)
24 VAC	Orange(1) Black/White(1)
12VDC	Orange/White(2)
24VDC	Black/White(2)

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized) Units with AC coils are for Fail Secure (Intemittent duty) use only and should be energized for periods of less than one minute
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
12VAC	.70	4.5	Buzz	Intm
24 VAC	.37	18.00	Buzz	Intm
12VDC	.28	43.00	Silent	Intm/Con
24VDC	.15	164.00	Silent	Intm/Con

FAIL SAFE (Reverse Action) NORMALLY UNLOCKED(Locked When Energized) Fail safe action (continuous duty) can only operate with DC coil assemblies. Units with DC coils are field reversible, fail safe action or fail secure continous duty operation. Strikes which are energisezed for periods longer than one minute need to use DC coils.
VOLTAGE	CURRENT/AMPS	OHMS	SOUND	DUTY
12 VDC	.28	43.0	Silent	Intm/Cont
24 VDC	.15	164.0	Silent	Intm/Cont

COMPATIBLE LOCKSET

ACCURATE

8500 SERIES

NT MONARCH

18-M, xx-m, 17-M

SARGENT

7700-8100

SCHLAGE

L SERIES (L9010-L9082)

YALE

8700

Questions and Answers

Q: I ordered this door strike from you and delivered to our Customer. He stated it works intermittently. Please take a look at the pictures attached as on the box and the unit the voltage has been over written. Not sure if this would be a problem, we are working with a 24 volt AC system and the door strike is 24 vdc.

A: Please disconnect the strike immediately and do not connect it to AC power. You will require a rectifier or converter kit. More elegantly stated:

Typically a DC electric strike is selected for silent operation. When using a plug in or hardwire AC transformer the use of a rectifier can be added to the circuit, at the strike or transformer. This will convert the AC voltages to DC, allowing for the use of a DC electric strike, which will not make the buzz sound. AC electric strikes will burn out if DC voltage is applied, as the coil resistance can not handle the constant current. *

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with

* Click Here
