TownSteel CE 75 S US26D

Name: TownSteel CE 75 S US26D Non Clutched Low Profile Rose Style Non Keyed and Single Cylinder Passage Function Heavy Duty Cylindrical Lock with Sentinel Lever - Satin Chrome
Brand: TownSteel
SKU: TownSteel CE 75 S US26D
Price: 243.62 USD

TownSteel CE 75 S US26D Non Clutched Low Profile Rose Style Non Keyed and Single Cylinder Passage Function Heavy Duty Cylindrical Lock with Sentinel Lever - Satin Chrome

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $243.62 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 3-5 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

CE 75 S US26D Non Clutched Low Profile Rose Style Non Keyed and Single Cylinder Passage Function Heavy Duty Cylindrical Lock with Sentinel Lever - Satin Chrome

The CE Series Cylindrical Lock is designed for High Traffic commercial areas such as schools, universities, office buildings and industrial complexes
Featuring an internal spring design that mitigates lever sag, and allows for an aesthetically pleasing low projection rose
Available in Clutched and Non Clutched configurations
Fast and easy installation
Rotation limiters and internal lever return springs provide additional protection
ANSI/BHMA A156.2-2011 4000 Certified Grade 1 Extra Heavy Duty Cylindrical Lockset
UL10C Listed 3-Hour Fire Rating
Non Keyed and Single Cylinder
Rose Style: Low Profile Rose
Function: Passage (75)
Trim: Sentinel (S) Lever Trim
Finish: Satin Chrome (US26D)
Please Select Handing when placing an order.

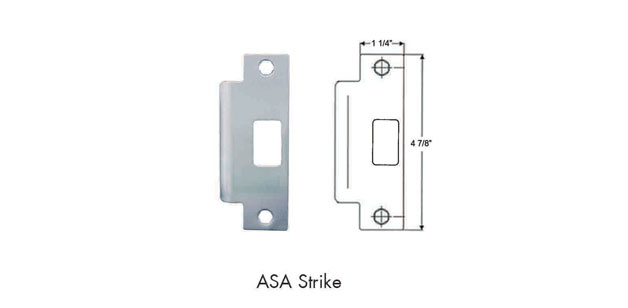

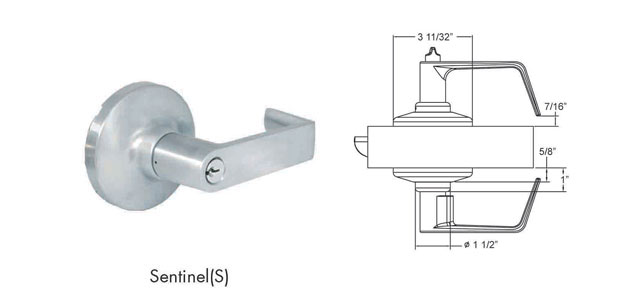

Sentinel Lever Trim Type Click to Enlarge	ASA Strike Dimensions Click to Enlarge

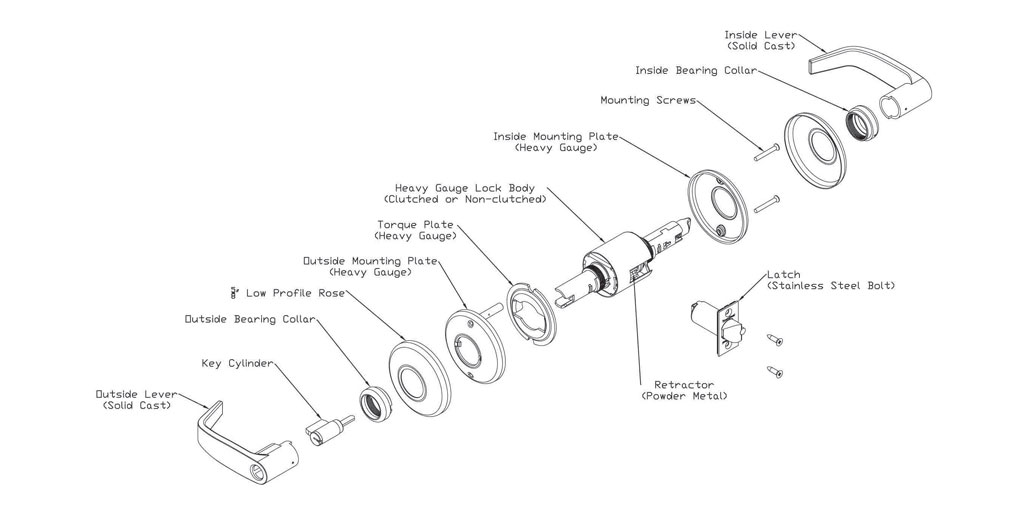

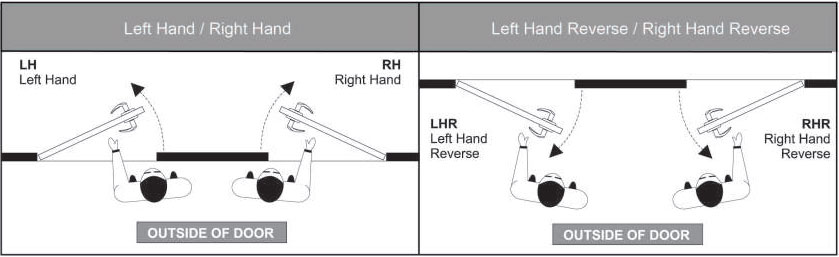

CE/CEC Series Cylindrical Lock Profile	Handing Chart

Click to Enlarge	Click to Enlarge

Keying Options - Please Select Keying Option, Key Quantity and Key Stamping when placing an order.

Select Keying Option: KD standard, KA, MK available. Select Quantities of Keys: 2 keys are included with the lock itself, however additional keys are available for additional charge. Keying charge includes Two keys per change. Master Key Not included. Select Key Stamping: If key stamping is required an additional fee wil be charged. Please select the number of keys equal to the quantity of keys selected above. Indicate Key Stamping Information (Optional): Please provide us with a max. 6 characters.

Additional Product Information

Door Thickness: 1-3/4"-2" Backset: 2-3/4" Standard, 5" Optional Faceplate: Self-adjustable, 1-1/8" x 2-1/4" Stainless Steel Strike: ASA Standard, 1-1/4" x 4-7/8", T-Strike available Lever Style: Sentinel (S), Quest (Q), and Gala (G) Rose Design: Wrought Steel or Stainless Steel, Low-Profile, 5/8" in Projection, 3-11/32" in Diameter Clutching: Available in Sentinel Lever Trim wiht Polished or Satin Stainless Steel Finish only Door Prep: Standard 161 Door Prep Mounting: Through-Bolt Mounting with 2-5/8" center-to-center thru-bolts Cylinder: Solid Brass, Schlage "C" keyway, 6pin standard High Security Cylinder: Available in 6Pin, TownSteel "L" keyway High Security SFIC: Available in 7Pin, TownSteel "L" keyway Schlage Large Format IC: Schlage Large Format I.C. Less Core available, for 6pin Core Corbin Large Format IC: Corbin Large Format I.C. Less Core available, for 6pin Core Small Format IC: Small format IC available, 6 or 7pin, Best "A" keyway Keying: KD Standard, KA, MK, GMK, GGMK, Construction Available Finish: Plated, Stainless Steel or Powder Coat (10B) Function: ANSI F75, F76, F77,F F80, F82, F84, F86, F87, F89, F90, F91, F109, F110, other unpon request Code Compliance: ANSI/BHMA: A156.2-2011 4000 Series Grade 1 Certified UL: UL 10C Listed 3-hour fire rated ADA: Meet Requirements of The Americans with Disabilities Act BAA: Meet Guidelines of The Buy Amercian Act CSFH: Sentinel and Quest Lever Designs meet California State Reference Code (CSFH) RoHS: Meet requirement of EU RoHS Directive 2002/95/EC Warranty: 10-Year Limited for Mechanical, 5-Year for Finishes TownSteel has been manufacturing commercial hardware for over 25 years. They take pride in their ability to maintain a product that keeps people safe. Over 25 years, they've grown into an international enterprise with major category-leading security products sold in over 20 countries.
