Silent Knight SK-PS10

Name: Silent Knight SK-PS10 10A Remote Power Supply with Battery Charger
Brand: Silent Knight
SKU: Silent Knight SK-PS10
Price: 1048.19 USD

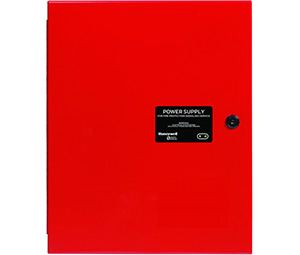

Silent Knight SK-PS10 10A Remote Power Supply with Battery Charger

× This image is for a similar product but it will differ in size, color and/or other attributes.

Silent Knight SK-PS10 10A Remote Power Supply with Battery Charger

Price: $1,048.19 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:


	Silent Knight SK-PS10 10A Remote Power Supply with Battery Charger


Standard Features: 10.0 A, 120 VAC remote charger power supply in a lockable, metal enclosure, red Up to seven independently- configurable, power-limited output circuits for: – Class B and/or Class A NACs – Class B and/or Class A resettable or nonresettable 24V auxiliary power – Door holder power Converts from Class B to Class A wiring without losing any outputs using the ZNACPS converter card (sold separately) Optimal for powering four-wire smoke detectors, annunciators, and other system peripherals requiring regulated power Configurable for ANSI® Temporal 3 or Temporal 4 coded output UL-Listed NAC synchronization using System Sensor®, Wheelock®, Gentex®, or AMSECO® appliances Synchronization can be triggered from FACP NAC/remote sync outputs, cascaded power supply, or a control module, single or multi, which may be housed within the power supply cabinet Ability to cascade up to four levels Three fully-isolated input/control circuits which can be programmed to any output Two Form C normally-closed trouble relays for AC Trouble and General Trouble, Ground Fault relay available on Canadian models only 10 amp full load output, respectively, with 3 A maximum/circuit Individual NAC power and trouble LEDs for diagnostic efficiency Trouble history mode for diagnostic support Wide range end-of-line supervision value (normal: 2-27K ohms) Selectable earth fault detection (enable or disable) AC trouble report delay timer Completely configurable via onboard DIP switches, no extra software required Self-contained in compact, locking cabinet constructed of heavy gauge steel with a corrosion-resistant powder coat chip and scratch-resistant finish Cabinet designed with ten double knockouts and a removable door for ease of installation and wiring Includes integral battery charger capable of charging up to 33 AH batteries Cabinet can house two 7 AH or 18 AH batteries Battery charger may be disabled via DIP switch for applications requiring larger batteries and external battery charger Removable terminal blocks accommodate up to 12 AWG (3.1mm2) wire Works with any UL 864 FACP which utilizes an industry-standard reverse-polarity notification circuit	Data Sheet
